Fixed Lens Mounts — Model FLF05A
✔ In Stock — Ships Today

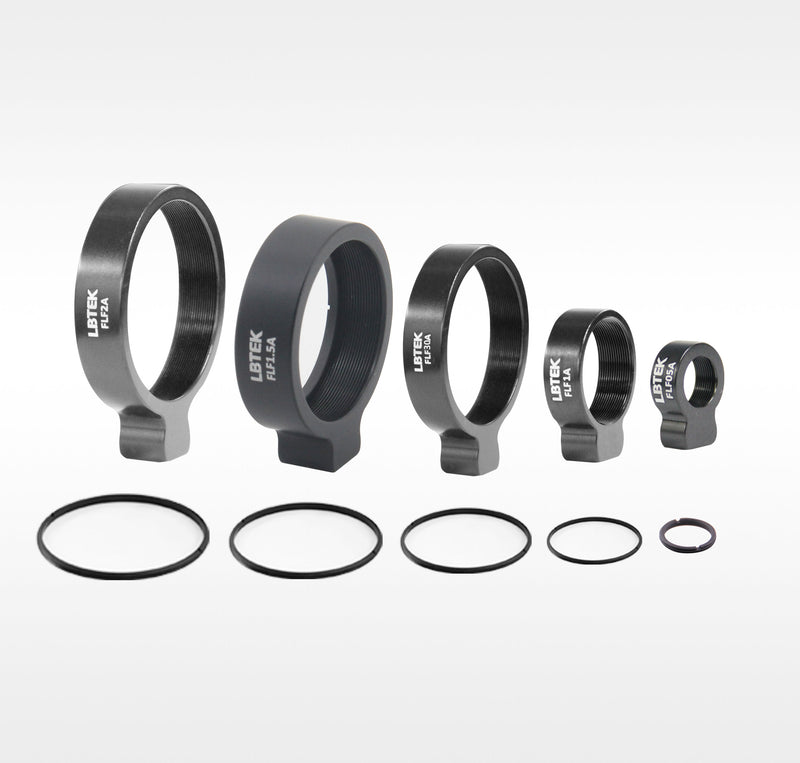

The LBTEK Fixed Lens Mount is suitable for optical components with diameters of Ø12.7 mm, Ø25.4 mm, Ø30 mm, Ø38.1 mm, and 50.8 mm. The FLF series features mounting steps for optical components and includes 1 retaining ring for securing optical components. The base is equipped with M4 threaded mounting holes for connecting to optical posts.
Key Features
- Optical component specifications: Ø12.7 mm, Ø25.4 mm, Ø30 mm, Ø38.1 mm, and Ø50.8 mm
- Internal thread with optical component mounting step
- 1 retaining ring
Application
Fixed lens mount with optical component mounting step, including one retaining ring
| Clear Aperture | 11.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Fixed Lens Mounts (13 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fixed Lens Mounts FLFE2A |
FLFE2A
| — | — | — | View |
| Fixed Lens Mounts FLFE1A |
FLFE1A
| — | — | — | View |
| Fixed Lens Mounts FLFE05A |
FLFE05A
| — | — | — | View |
| Fixed Lens Mounts FLFT2A |
FLFT2A
| — | — | — | View |
| Fixed Lens Mounts FLFT1A |
FLFT1A
| — | — | — | View |
| Fixed Lens Mounts FLFT05A |
FLFT05A
| — | — | — | View |
| Fixed Lens Mounts FLF2A |
FLF2A
| — | — | — | View |
| Fixed Lens Mounts FLF1A |
FLF1A
| — | — | — | View |
| Fixed Lens Mounts FLF05A Current |
FLF05A
| — | — | — | |
| Fixed Lens Mounts FLF30A |
FLF30A
| — | — | — | View |
| Fixed Lens Mounts FLF1.5A |
FLF1.5A
| — | — | — | View |
| Fixed Lens Mounts FLF3A |
FLF3A
| — | — | — | View |
| Fixed Lens Mounts FLF4A |
FLF4A
| — | — | — | View |
