Fixed Lens Mounts — Model FLFE05A
✔ In Stock — Ships Today

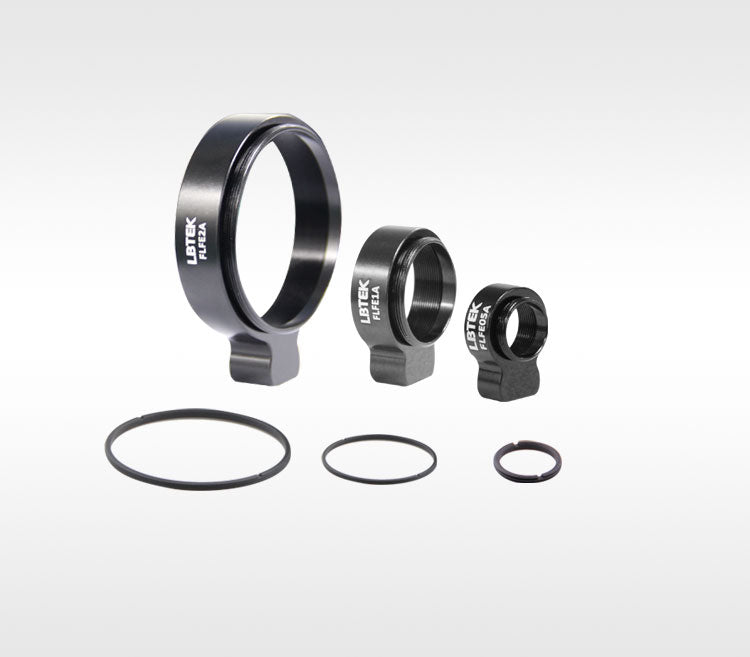

The LBTEK Fixed Lens Mount is suitable for optical components with diameters of Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm. The FLFE series features internal and external threads for expandable connections and includes a retaining ring to secure optical components. The base is equipped with M4 threaded mounting holes for connecting to optical posts.
Key Features
- Optical Component Specifications: Ø12.7 mm, Ø25.4 mm, and Ø50.8 mm
- Internal and External Threads, Expandable
- 1 Retaining Ring
Application
Fixed lens mount with internal and external threads, including a retaining ring
| Clear Aperture | 11.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
