Gimbal Knuckle Mount — Model TBM-MOPA
✔ In Stock — Ships Today

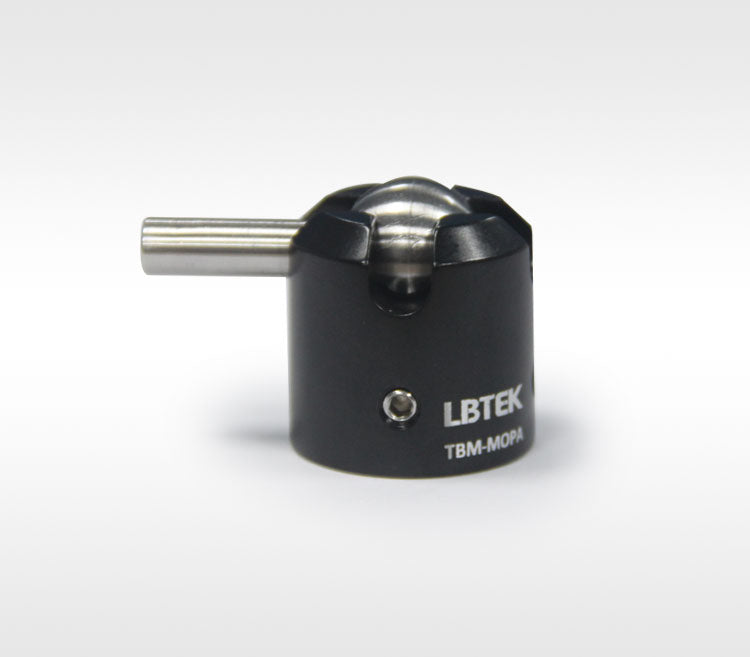

The gimbal knuckle mount from LBTEK allows fixation within a 50° conical range with omnidirectional positioning capability. The base incorporates four U-slots enabling 90° incremental orientation of the mounting surface relative to the base. The mount features a Ø6 mm table with a central M4 tapped hole for compatibility with optomechanical components. Four fixing screws positioned corresponding to the U-slots serve dual functions: adjacent pairs lock the angular position while collectively providing tension adjustment. Tightening all four fixing screws simultaneously maximizes torque resistance for mounted components. The base plate includes an M6 mounting hole for integration with other optomechanical components.
Key Features
- Adjustable within a 50° cone angle range;
- Four 90° adjustment positions;
- M6 mounting holes provided at the bottom;
Application
The ball hinge mount is commonly mounted on Ø25 mm stainless steel optical posts.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Gimbal Knuckle Mount (1 variants)
