Glan Laser Crystal Polarizing Prism GLP05
GLP05$1,266.71
In Stock
Key Specifications
Wavelength
350.0nm
Design Tools
SHG Phase Matching
Calculate phase matching angles and efficiency
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH

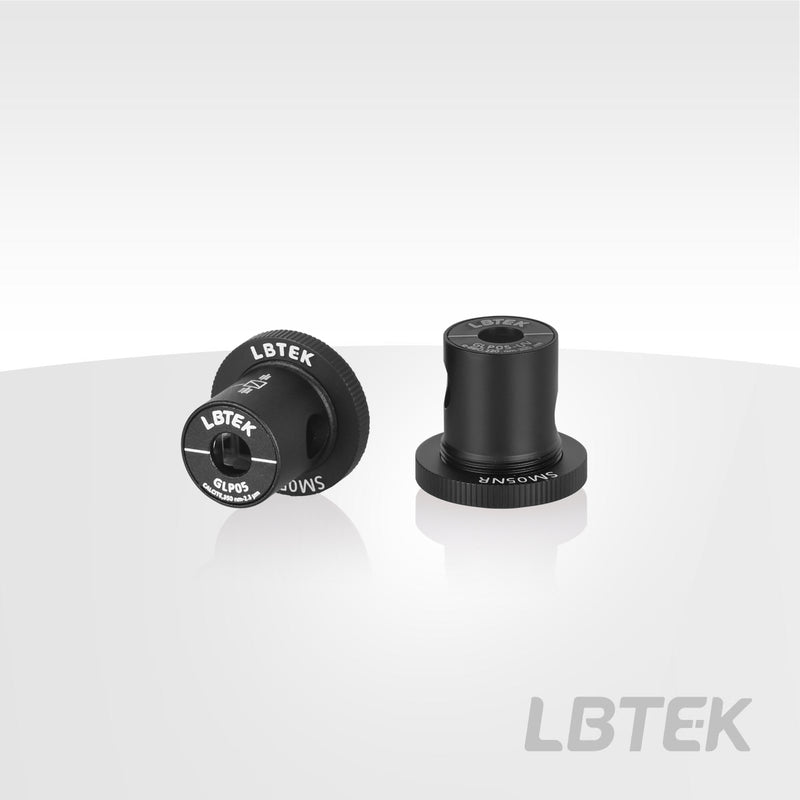

Glan Laser Crystal Polarizing Prism — Model GLP05
Glan Laser polarizing prism, Laser-grade natural Calcite, operating wavelength 350 nm-2.3 μm, clear aperture Ø5 mm, extinction ratio 10000:1.
Overview
LBTEK Glan Laser Crystal Polarizing Prisms separate incident light into ordinary and extraordinary rays via a high damage threshold air-spaced structure. Made from laser-grade natural Calcite or α-BBO crystals, they offer high extinction ratio (>10000:1 or >100000:1) and a wide working wavelength range (200 nm-3.0 μm depending on substrate). Anti-reflective coatings can be optionally applied at common laser lines (245 nm, 532 nm, 1064 nm, etc.). Mounted on a rotation mount housing for easy integration.
Key Features
- Extinction ratio: 10000:1
- Operating wavelength: 350 nm-2.3 μm
- Material: Laser-grade natural Calcite
- Structure: High damage threshold air-spaced structure
- Beam deviation: <3 arcmin
- Optional AR coating: P coating@1064 nm
Applications
- Laser polarization control and beam separation
- High-power laser systems requiring stable extinction ratio
- Polarimetry and ellipsometry
- Optical isolation and Faraday rotator combinations
- Imaging and spectroscopy with polarization discrimination
| Optical component material | Laser-grade natural Calcite |
| Structural design | High damage threshold air-spaced structure |
| Clear Aperture | Ø5 mm |
| Beam Deviation | <3 arcmin |
| Operating Wavelength | 350 nm-2.3 μm |
| Extinction ratio | 10000:1 |
| Optional AR coating | P coating@1064 nm |
| Housing Diameter | Ø12.7 mm |
| Surface finish (scratches/pits) | 20/10 (emergent/incident surface), 80/50 (side surface) |
| Housing thread | SM05 external thread |
| Transmitted Wavefront Error (TWE) | λ/4, Ø4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Glan Laser Crystal Polarizing Prism (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Glan Laser Crystal Polarizing Prism GLP10-IR |
GLP10-IR
| Ø25.4 mm | Ø10 mm | 700 nm-3.0 μm | View |
| Glan Laser Crystal Polarizing Prism GLP10-B |
GLP10-B
| Ø25.4 mm | Ø10 mm | 700 - 1100 nm | View |
| Glan Laser Crystal Polarizing Prism GLP10-A |
GLP10-A
| Ø25.4 mm | Ø10 mm | 300 - 700 nm | View |
| Glan Laser Crystal Polarizing Prism GLP10-UV |
GLP10-UV
| Ø25.4 mm | Ø10 mm | 200 nm-300 nm | View |
| Glan Laser Crystal Polarizing Prism GLP10 |
GLP10
| Ø25.4 mm | Ø10 mm | 350 nm-2.3 μm | View |
| Glan Laser Crystal Polarizing Prism GLP05-B |
GLP05-B
| Ø12.7 mm | Ø5 mm | 700 nm-1100 nm | View |
| Glan Laser Crystal Polarizing Prism GLP05-A |
GLP05-A
| Ø12.7 mm | Ø5 mm | 300 nm-700 nm | View |
| Glan Laser Crystal Polarizing Prism GLP05-UV |
GLP05-UV
| Ø12.7 mm | Ø5 mm | 220 nm-300 nm | View |
| Glan Laser Crystal Polarizing Prism GLP05 Current |
GLP05
| Ø12.7 mm | Ø5 mm | 350 nm-2.3 μm |
