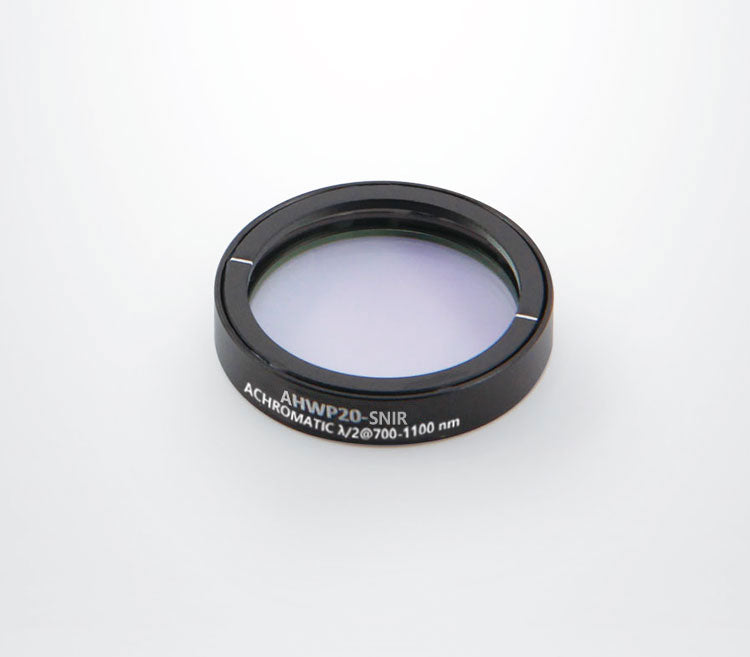

Achromatic Half-Wave Plate (Retaining Ring) — Model AHWP20-SNIR
Broadband λ/2 waveplate for 700 nm-1100 nm, in retaining ring housing.
Overview
The Achromatic Half-Wave Plate combines a quartz crystal and MgF2 element pair to deliver a true λ/2 retardance across the broadband wavelength range of 700 nm-1100 nm. The achromatic design compensates for material dispersion, maintaining half-wave retardance accuracy across the full specified band. Both surfaces are coated for Ravg < 0.5% at 6° AOI. Each plate is supplied in a retaining ring housing.
Key Features
- Achromatic design: uniform λ/2 retardance across 700 nm-1100 nm
- Quartz crystal + MgF₂ dual-element construction
- Ravg < 0.5% per surface, 6° AOI
- Retardance accuracy: ±λ/50
- Transmitted Wavefront Error: λ/8 @ 633 nm
- Surface Parallelism: < 10 arcsec
- Retaining ring housing, Ø25.4 mm OD
Applications
- Broadband polarization rotation (linear to orthogonal linear)
- Laser isolation and Faraday rotator systems
- White-light interferometry and ellipsometry
- Fluorescence and multi-wavelength microscopy
- Integration with broadband polarizing beamsplitters
| Operating Wavelength | 700 nm-1100 nm |
| Optical component material | Quartz crystal & MgF2 |
| Mechanical housing diameter | 25.4 mm |
| Mechanical housing thickness | 5.94 mm |
| Mechanical housing diameter tolerance | +0.0/-0.1 mm |
| Delay accuracy | ±λ/50 |
| Clear Aperture | 20.0 mm |
| Retardation | λ/2 |
| Transmitted Wavefront Error (TWE) (@633 nm) | λ/8 |
| Coating | Ravg<0.5%@700 nm-1100 nm (6°AOI, single surface) |
| Surface finish (scratches/pits) | 40/20 (Quartz), 80/50 (Magnesium fluoride) |
| Surface Parallelism | <10 arcsec |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Achromatic Half-Wave Plates (9 variants)
| Product | SKU | Housing Diameter | Housing Thickness | Operating Wavelength | |
|---|---|---|---|---|---|
| Achromatic Half-Wave Plate — MAHWP20-LNIR |
MAHWP20-LNIR
| 30.5 mm | 12.0 mm (with threaded length) | 1100 nm-1650 nm | View |
| Achromatic Half-Wave Plate — MAHWP20-SNIR |
MAHWP20-SNIR
| 30.5 mm | 12.0 mm (with threaded length) | 700 nm-1100 nm | View |
| Achromatic Half-Wave Plate — MAHWP20-VIS |
MAHWP20-VIS
| 30.5 mm | 12.0 mm (with threaded length) | 400 nm-700 nm | View |
| Achromatic Half-Wave Plate — AHWP20-LNIR |
AHWP20-LNIR
| 25.4 mm | 5.94 mm | 1100 nm-1650 nm | View |
| Achromatic Half-Wave Plate — AHWP20-SNIR Current |
AHWP20-SNIR
| 25.4 mm | 5.94 mm | 700 nm-1100 nm | |
| Achromatic Half-Wave Plate — AHWP20-VIS |
AHWP20-VIS
| 25.4 mm | 5.94 mm | 400 nm-700 nm | View |
| Achromatic Half-Wave Plate — AHWP10-LNIR |
AHWP10-LNIR
| 25.4 mm | 5.94 mm | 1100 nm-1650 nm | View |
| Achromatic Half-Wave Plate — AHWP10-SNIR |
AHWP10-SNIR
| 25.4 mm | 5.94 mm | 700 nm-1100 nm | View |
| Achromatic Half-Wave Plate — AHWP10-VIS |
AHWP10-VIS
| 25.4 mm | 5.94 mm | 400 nm-700 nm | View |
