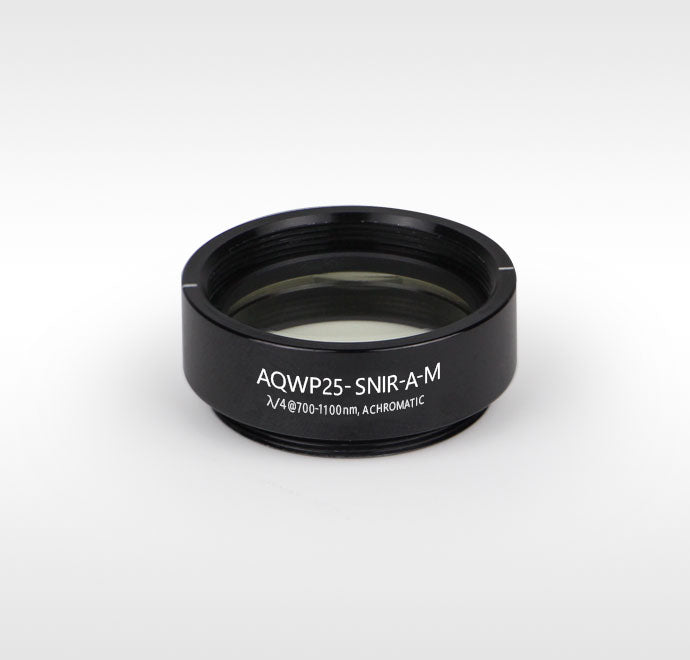

Polymer Achromatic Quarter-Wave Plate (SM1 Mount) — Model AQWP25-SNIR-A-M
Broadband polymer λ/4 waveplate for 700 nm-1100 nm, SM1 lens tube (SMI-8A-SP with D-step).
Overview
LBTek's Polymer Achromatic Quarter-Wave Plate uses a Liquid Crystal Polymer (LCP) layer sandwiched between two N-BK7 windows to deliver true λ/4 retardance across the broadband range of 700 nm-1100 nm. The polymer achromatic design provides excellent retardance uniformity and wide acceptance angle (±15° AOI), making it ideal for applications requiring achromatic polarization conversion. Each plate is supplied as SM1 lens tube (SMI-8A-SP with D-step).
Key Features
- Polymer achromatic design: uniform λ/4 retardance across 700 nm-1100 nm
- Liquid Crystal Polymer between two N-BK7 windows
- Wide acceptance angle: ±15° AOI
- Delay Uniformity: ±5 nm across clear aperture
- Fast-axis accuracy: ±3° to ±5°
- Transmitted Wavefront Error: < λ/2 @ 633 nm (RMS)
- Mounted in SMI-8A-SP housing with D-step, SM1 thread
Applications
- Broadband polarization state conversion (linear ↔ circular)
- White-light and multi-wavelength microscopy
- Ellipsometry and polarimetry
- Optical coherence tomography (OCT)
- Machine vision polarization systems
| Component Material | Liquid Crystal Polymer/N-BK7 Window |
| Retardation | λ/4 |
| Component size | Ø25.4×3.0 mm |
| Delay Uniformity | ±5 nm |
| Operating Wavelength | 700 nm-1100 nm |
| Delay accuracy | ±λ/30@700-730 nm & 1030-1100 nm; ±λ/50@730-780 nm & 930-1030 nm; ±λ/80@780-930 nm |
| Clear Aperture | Ø21.5 mm |
| Angle of Incidence (AOI) | ±15 ° |
| Surface finish (scratches/pits) | 60/40 |
| Fast-axis accuracy | ±3 ° |
| Anti-reflective coating | 700-1100 nm |
| Transmission | >94 % |
| Reflectance | Ravg<0.5 %(0°incidence angle) |
| Transmitted Wavefront Error (RMS) | <λ/2@633 nm |
| Mechanical housing specification | SM1-8A-SP(with D-step) |
| Transmitted light deflection (without mechanical housing installed) | <1 arcmin |
| Operating Temperature | -20~80 °C |
| Transmitted light deflection (with mechanical housing installed) | <10 arcmin |
