Polymer Achromatic Quarter-Wave Plate — AQWP25-VNIR-A-M
AQWP25-VNIR-A-M$791.89
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

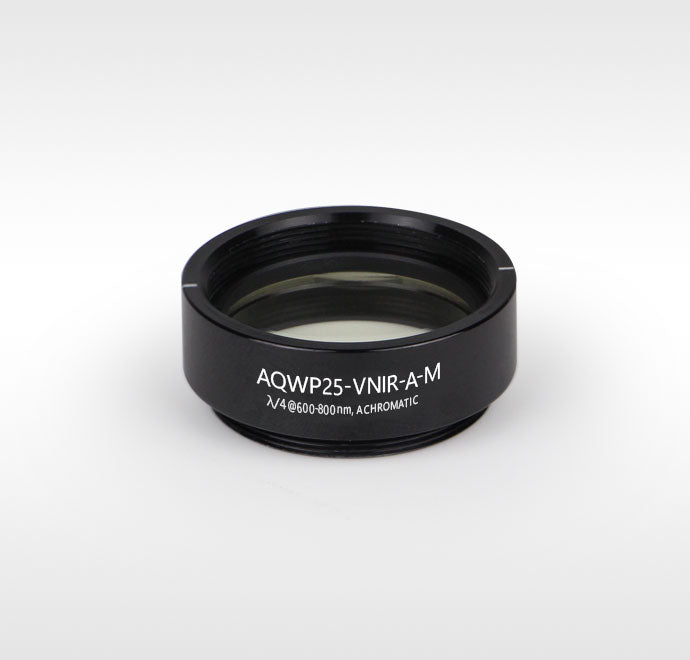

Polymer Achromatic Quarter-Wave Plate (SM1 Mount) — Model AQWP25-VNIR-A-M
Broadband polymer λ/4 waveplate for 600 nm-800 nm, SM1 lens tube (SM1-8A-SP with D-step).
Overview
LBTek's Polymer Achromatic Quarter-Wave Plate uses a Liquid Crystal Polymer (LCP) layer sandwiched between two N-BK7 windows to deliver true λ/4 retardance across the broadband range of 600 nm-800 nm. The polymer achromatic design provides excellent retardance uniformity and wide acceptance angle (±15° AOI), making it ideal for applications requiring achromatic polarization conversion. Each plate is supplied as SM1 lens tube (SM1-8A-SP with D-step).
Key Features
- Polymer achromatic design: uniform λ/4 retardance across 600 nm-800 nm
- Liquid Crystal Polymer between two N-BK7 windows
- Wide acceptance angle: ±15° AOI
- Delay Uniformity: ±5 nm
- Fast-axis accuracy: ±3°
- Transmitted Wavefront Error: < λ/2 @ 633 nm (RMS)
- Mounted in SM1-8A-SP housing with D-step, SM1 thread
Applications
- Broadband polarization state conversion (linear ↔ circular)
- White-light and multi-wavelength microscopy
- Ellipsometry and polarimetry
- Optical coherence tomography (OCT)
- Machine vision polarization systems
| Component Material | Liquid crystal polymer/N-BK7 Window |
| Retardance | λ/4 |
| Component size | Ø25.4×3.0 mm |
| Delay Uniformity | ±5 nm |
| Operating Wavelength | 600 nm-800 nm |
| Retardance Accuracy | ±λ/50@600-640 nm & 740-800 nm; ±λ/80@640-740 nm |
| Clear Aperture | Ø21.5 mm |
| Angle of Incidence (AOI) | ±15 ° |
| Surface Quality (Scratch/Dig) | 60/40 |
| Fast axis accuracy | ±3 ° |
| AR Coating | 400-1100 nm |
| Transmittance | >95 % |
| Reflectivity | Ravg<0.5% (0° angle of incidence) |
| Wavefront Error (RMS) | <λ/2@633 nm |
| Mechanical housing specifications | SM1-8A-SP (with D-type step) |
| Transmitted light deflection (without mechanical housing installed) | <1 arcmin |
| Operating Temperature | -20~80 °C |
| Transmitted light deflection (with mechanical housing installed) | <10 arcmin |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Polymer Achromatic Quarter-Wave Plates (5 variants)
| Product | SKU | Component size | Operating Wavelength | Retardance | |
|---|---|---|---|---|---|
| Polymer Achromatic Quarter-Wave Plate — AQWP51-SNIR-A |
AQWP51-SNIR-A
| Ø50.8×3.0 mm | 700 nm-1100 nm | λ/4 | View |
| Polymer Achromatic Quarter-Wave Plate — AQWP51-VIS-A |
AQWP51-VIS-A
| Ø50.8×3.0 mm | 450 nm-700 nm | λ/4 | View |
| Polymer Achromatic Quarter-Wave Plate — AQWP25-SNIR-A-M |
AQWP25-SNIR-A-M
| Ø25.4×3.0 mm | 700 nm-1100 nm | λ/4 | View |
| Polymer Achromatic Quarter-Wave Plate — AQWP25-VNIR-A-M Current |
AQWP25-VNIR-A-M
| Ø25.4×3.0 mm | 600 nm-800 nm | λ/4 | |
| Polymer Achromatic Quarter-Wave Plate — AQWP25-VIS-A-M |
AQWP25-VIS-A-M
| Ø25.4×3.0 mm | 400 nm-700 nm | λ/4 | View |
