Lens Kit CX2LK-10-B
CX2LK-10-B$1,469.16
In Stock
Key Specifications
Wavelength
700.0nm
Design Tools
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
Lens Kit — Model CX2LK-10-B
Operating wavelength 700 nm-1100 nm.
Product Description
- Provide a lens kit with a diameter of 25.4 mm
- Lenses are all installed and fixed in standard lens sleeves
- Independently stored, separated for organization
- Reasonable design, easy to carry

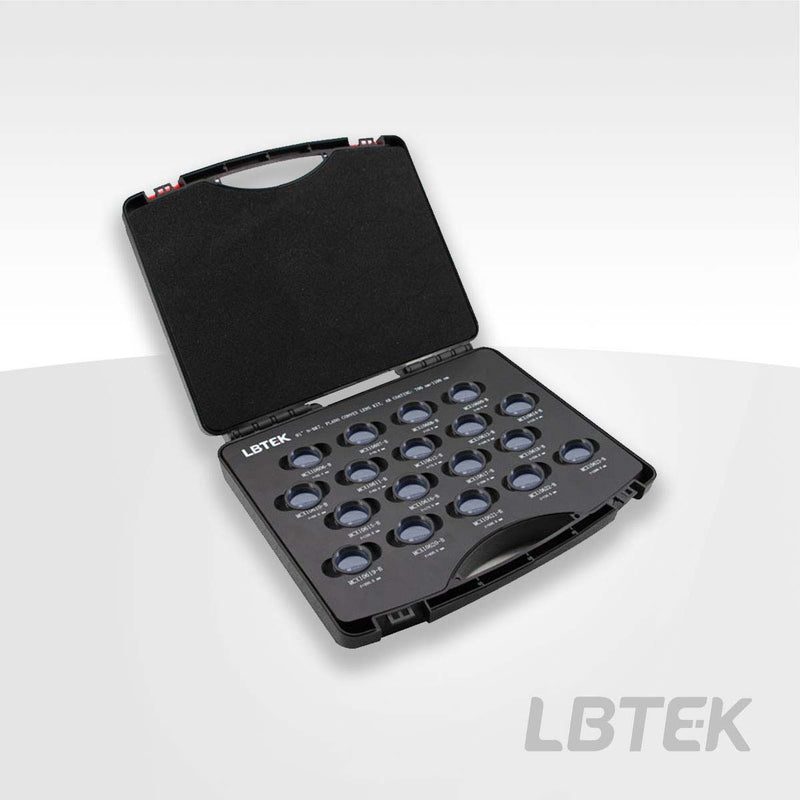

LBTEK organizes lenses of the same shape but different focal lengths into a set of lens kits. The outer case is made of selected PP material, with a wave sponge on the upper cover and a sponge compartment liner in the lower case. Lenses can be stored and organized separately in compartments, and the outer case is sturdy, pressure-resistant, and provides good protection. The kit lenses cover commonly used focal lengths (25.4 mm–1000 mm), all fixed in standard lens sleeves. The surface of the sponge compartment liner is engraved with the product model, type, diameter, and focal length, making it convenient for users to identify lens parameters and organize storage.
Lens Kit
- Box dimensions: 320×260×70 mm, 230×180×50 mm
- Slot diameter: 30.5 mm
- Plano-convex lenses, double-convex lenses, and achromatic cemented lenses are available
The LBTEK lens kit includes commonly used focal lengths (25.4 mm - 1000 mm). Currently available are plano-convex, biconvex lens kits, and achromatic doublet lens kits, with options for uncoated or anti-reflection coated kits. LBTEK also provides custom configuration services, such as the number of lenses, sizes, focal lengths, etc. For specific customization needs, please contact LBTEK technical support.
| Operating Wavelength | 700 nm-1100 nm |
