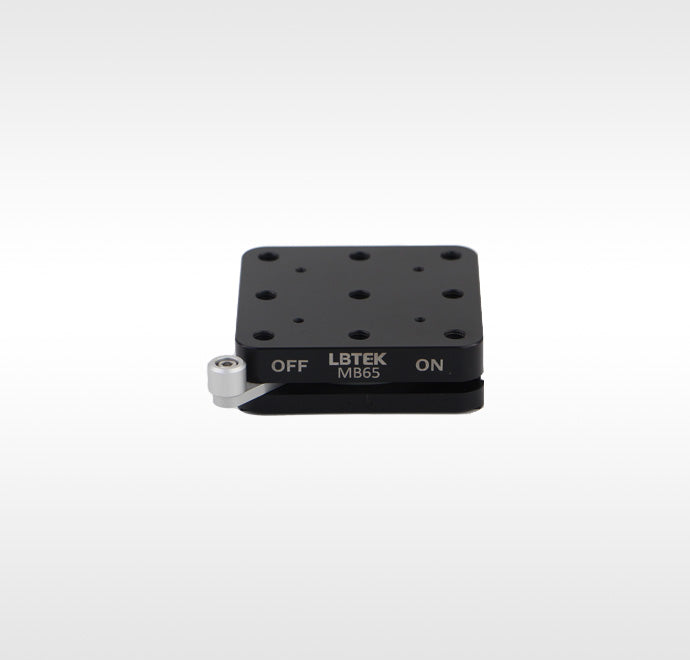

Low Profile Magnetic Base — Model MB65
✔ In Stock — Ships Today
The low profile magnetic base from LBTEK features a magnetic switch that allows instant activation or deactivation of the magnetic force, enabling direct fixation on stainless steel optical plates or magnetic breadboards. The base surface includes 9× M6 tapped holes and 4× M3 tapped holes for flexible installation with manual translation stages or other mechanical components.
Key Features
- Magnetic switch for easy fixing or moving;
- M3/M6 tapped holes;
- Dimensions: 65 mm × 65 mm × 20 mm;
Application
AS65-0875L1 is mounted on the optical platform through MB65.
