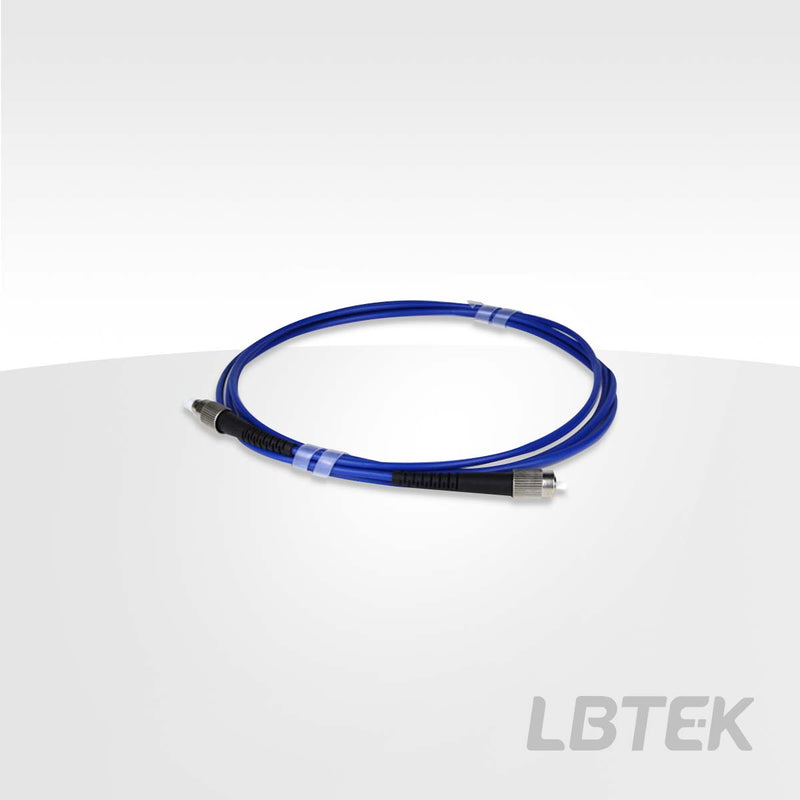

Multimode fiber optic patch cord MMC800L-0.22-PC-2
MMC800L-0.22-PC-2$687.85
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
LBTEK multimode fiber patch cords feature excellent coupling efficiency, high light transmission, and superior fatigue resistance, making them an ideal choice for solid-state lasers and spectroscopic instruments. Among them, multimode fiber patch cords with FC/PC connectors offer core diameter options ranging from 50 μm to 1000 μm. Those with core diameters above 105 μm use metal ferrules, while others employ ceramic ferrules, with a loose tube design featuring Ø3 mm blue-jacketed stainless steel armored cable. Custom specifications are available upon request.
- Multimode Fiber Patch Cord: FC/PC Connector
- Core Diameter: 50 μm-1000 μm Optional
- Loose Tube: Ø3 mm Blue Jacket Stainless Steel Armored Cable/Ø6 mm Stainless Steel Armored Cable
| Wavelength range | 300 nm-2400 nm |
| Fiber core diameter | 800 μm |
| Fiber length | 2 m |
| Numerical Aperture | 0.22 |
| Operating Temperature | -10°C-70°C |
| Connector Type | FC/PC 2.2 mm Wide Key |
| Cladding diameter | 880 μm |
| Coating layer diameter | 1200 μm |
| Fiber Model | fiberguide AFS800 |
| Loose tube | Ø6mm stainless steel cable |
| Fiber core material | Low hydroxyl quartz material |
| Cladding material | Fluorine-doped quartz material |
No CAD drawings available for this product.
