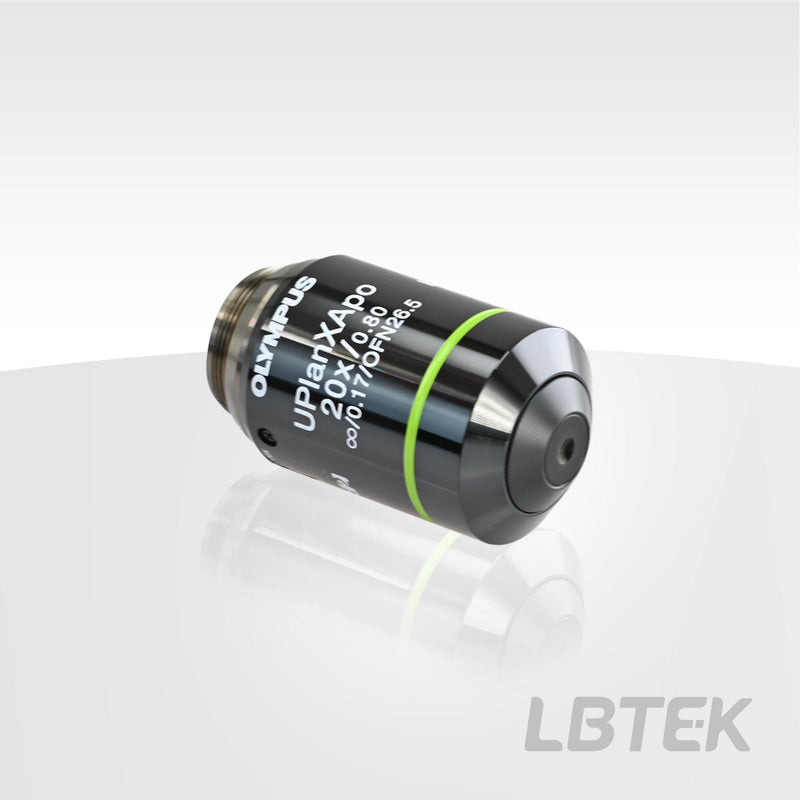

Olympus Ultra Plan Super Apochromat Objectives (Olympus UPLSAPO) OUPLXAPO20X

OUPLXAPO20X
$2,894.61
In Stock
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Lenses Detectors & Measurement
RoHS REACH

LBTEK offers ultra-plan, 20X magnification dry objectives from Olympus. Each objective has standard RMS threads and can be mounted on mounts with internal SM1 threads using the LBTEK thread adapter SM1-RMSA.

Key Features

  • Infinity-corrected ultra-plan super apochromatic design
  • Designed for use with tube lenses of 180 mm focal length
  • Thread specification: W20.32 mm×0.706 mm (RMS)

Application

Mount the objective to the optical mount using the threaded adapter SM1-RMSA

Operating Wavelength 400 nm-1000 nm
Focal length 9 mm
Working distance 0.6 mm
Numerical Aperture 0.8
Magnification 20X
Objective Field Number 26.5 mm
Immersion liquid Air/Dry
Parfocal distance 45 mm
Tube Length N/A
Field of View W20.32 mm×0.706 mm (RMS)
Incident aperture 14.4 mm
