What is the damage threshold of Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY108114-B?

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY108114-B has a laser-induced damage threshold (LIDT) of 0.8 J/cm².

What is the focal length of Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY108114-B?

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY108114-B has a focal length of 100.0 mm.

WaveQuanta

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY108114-B

Name: Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY108114-B
Brand: WaveQuanta
SKU: NCY108114-B
Price: 160.84 SGD
Availability: InStock

NCY108114-B

$160.84

In Stock

Key Specifications

Wavelength 700.0nm

LIDT 0.8J/cm²

Reflectance 0.5%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm — Model NCY108114-B

Operating wavelength 700 nm-1100 nm, focal length -100.0 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7
Operating Wavelength: 700 nm-1100 nm (AR Coating)
Application: Imaging, Unidirectional Beam Collimation, Beam Shaping

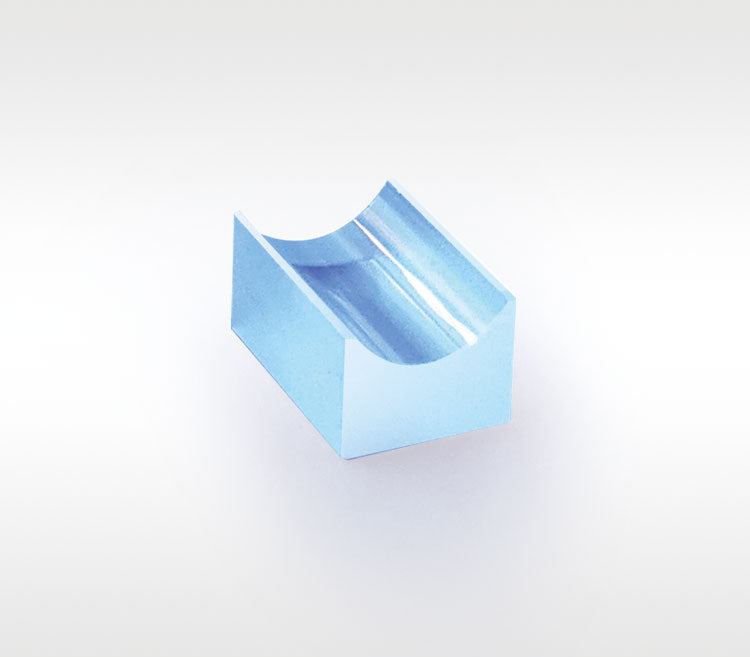

The plano-concave cylindrical lens has one flat surface and one cylindrical surface, featuring a negative focal length. Unlike spherical lenses, cylindrical lenses only act on the beam in one direction. Cylindrical lenses are generally used for beam shaping, with typical applications including collimation with dual cylindrical lens assemblies and circularizing the output beam of laser diodes. To reduce spherical aberration, plano-concave cylindrical lenses are used to diverge a collimated beam into a spot, and the beam should be incident on the curved surface of the lens. LBTEK chooses to manufacture various lenses using N-BK7, which is the most common lens material and widely used in visible and near-infrared applications. LBTEK offers uncoated plano-concave cylindrical lenses as well as lenses with three types of anti-reflection coatings: 400 nm–700 nm, 700 nm–1100 nm, and 1100 nm–1650 nm. Our lenses are finely processed with strict quality control, ensuring that LBTEK provides users with high-quality lens products at reasonable prices.

Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm

Substrate Material: N-BK7
Operating Wavelength: 700 nm-1100 nm (AR Coating)

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear Aperture	90% CA
Damage Threshold	0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)
Clear Aperture	90% CA
Operating Wavelength	700 nm-1100 nm
Eccentricity	≤5 arcmin
Design Wavelength	587.6 nm
Substrate Material	H x L= 30.0 mm x 32.0 mm
Damage Threshold	0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)

Low damage threshold detected (0.8 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.

Specification Sheet PDF — Download

3D Model (STL) STL — Download

Product Family: Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm (8 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
Plano-concave cylindrical lens, N-BK7, AR coating: 700 nm-1100 nm NCY107R13-B	`NCY107R13-B`	25.4 mm	90% CA	700 nm-1100 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY108112-B	`NCY108112-B`	90% CA	90% CA	700 nm-1100 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY101101-B	`NCY101101-B`	90% CA	90% CA	700 nm-1100 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY102104-B	`NCY102104-B`	90% CA	90% CA	700 nm-1100 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY104107-B	`NCY104107-B`	90% CA	90% CA	700 nm-1100 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY103205-B	`NCY103205-B`	90% CA	90% CA	700 nm-1100 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY105209-B	`NCY105209-B`	90% CA	90% CA	700 nm-1100 nm	View
Plano-Concave Cylindrical Lens, N-BK7, AR Coating: 700 nm-1100 nm NCY108114-B Current	`NCY108114-B`	90% CA	90% CA	700 nm-1100 nm
