What wavelength range does Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB support?

Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB operates at a center wavelength of 400.0 nm.

What are the physical dimensions of Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB?

Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB dimensions: Diameter: 25.4 mm.

What is the focal length of Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB?

Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB has a focal length of 35.0 mm.

What documentation is available for Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB?

The following documents are available for download on the Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB

Name: Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. MCX10608-AB
Brand: WaveQuanta
SKU: MCX10608-AB
Price: 65.08 SGD
Availability: InStock

MCX10608-AB

$65.08

In Stock

Key Specifications

Wavelength 400.0nm

Diameter 25.4mm

Reflectance 1.0%

Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm. — Model MCX10608-AB

Operating wavelength 400 nm-1100 nm, focal length 35.0 mm, Ø25.4 mm, substrate N-BK7.

Product Description

Optical Material: N-BK7;
Operating Wavelength: 400 nm-1100 nm
Application: Beam Expander, Imaging, Beam Reducer;

The plano-convex lenses from LBTEK feature one convex surface and one flat surface, providing positive focal lengths typically used for beam reduction, focal length shortening, or imaging magnification applications. To minimize spherical aberration, when a plano-convex lens is used for focusing a collimated beam, the beam should be incident on the curved surface. LBTEK manufactures these lenses using N-BK7, the most common optical material for visible and near-infrared applications. All lenses undergo precision machining and strict quality control, ensuring LBTEK delivers high-quality optical products at competitive prices.

Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm.

Substrate Material: N-BK7;
Operating Wavelength: 400 nm - 1100 nm;
Application: Beam Expander, Imaging, Beam Reducer;

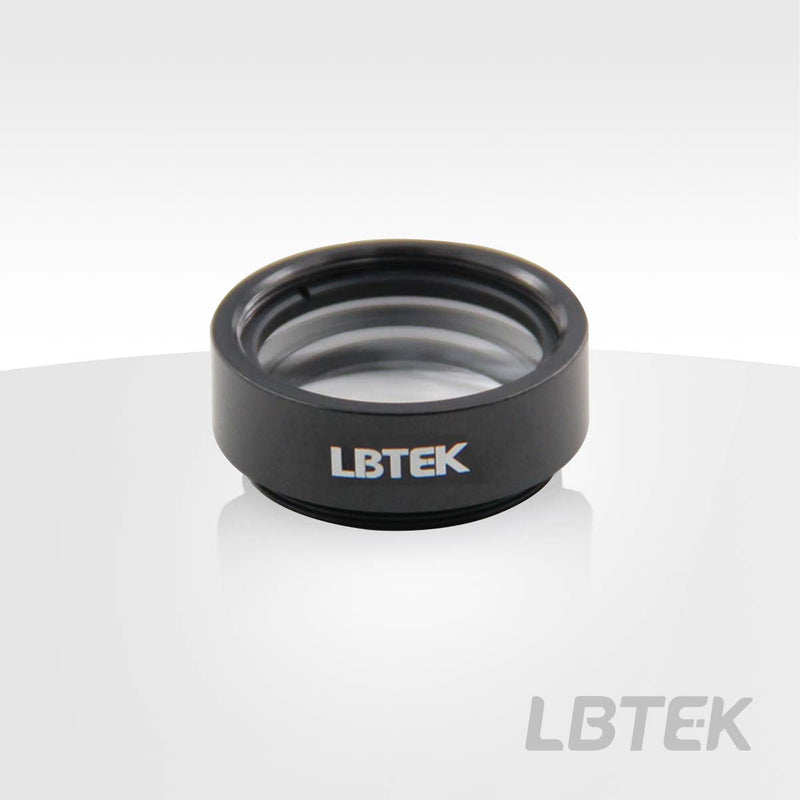

Pre-mounted mechanical housing;

Clear Aperture	90% CA
Operating Wavelength	400 nm-1100 nm
Diameter	25.4 mm
Eccentricity	≤3 arcmin
Design Wavelength	587.6 nm

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

Curve 1

Curve - UVSF-B Coating Recovered

Product Family: Plano-Convex Lens, N-BK7, AR Coating: 400 nm-1100 nm (50 variants)
