Plano-Convex (PCX) Lenses, UV Fused Silica, Uncoated: 190 nm-2.1 μm, Mounted MCX20821

MCX20821
$311.45
In Stock
Key Specifications
Wavelength 190.0nm
Diameter 50.8mm
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

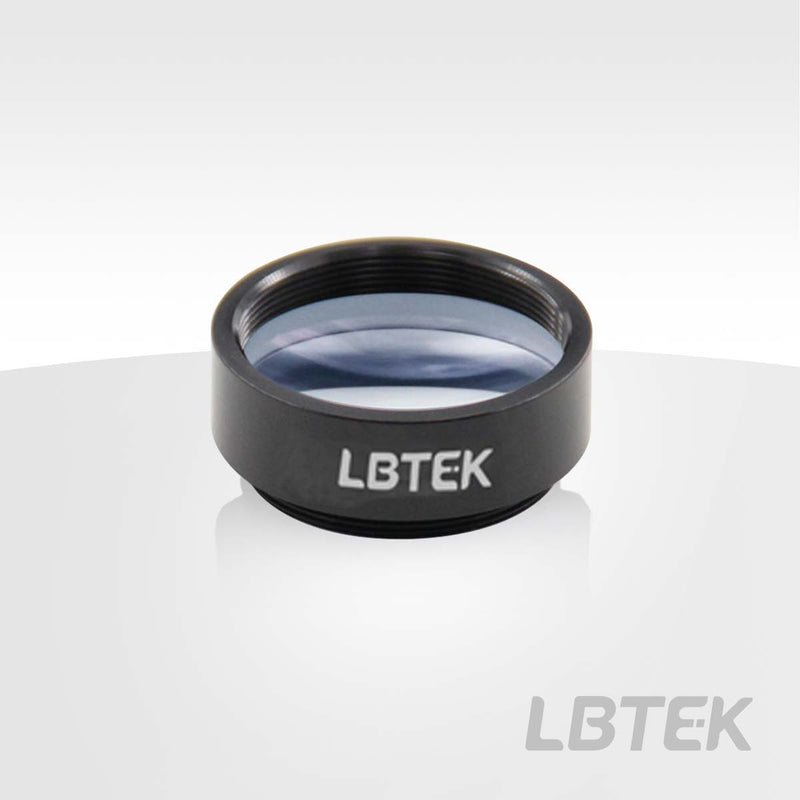

Plano-Convex (PCX) Lenses, UV Fused Silica, Uncoated: 190 nm-2.1 μm, Mounted — Model MCX20821

Operating wavelength 190 nm-2.1 μm, focal length 501.8 mm, Ø50.8 mm, substrate UV Fused Silica.

Product Description

  • Optical Material: UV Fused Silica
  • Working Wavelength: 190 nm-2.1 μm
  • Application: Imaging, Beam Expansion or Reduction

LBTEK plano-convex lenses are made from UV-grade fused silica glass, offering better homogeneity and a lower coefficient of thermal expansion compared to N-BK7 glass, making them suitable for ultraviolet and near-infrared wavelength ranges. LBTEK plano-convex lenses have a positive focal length and are commonly used in applications such as imaging or beam collimation. LBTEK offers both unmounted and mounted plano-convex lenses, with an operating wavelength range of 190 nm to 2.1 μm and available diameters of 6 mm, 12.7 mm, 25.4 mm, and 50.8 mm. The mounted lenses are pre-installed in standard lens barrels, with the product model, type, diameter, and focal length engraved on the barrel surface for easy identification of lens parameters. Additionally, LBTEK supports flexible customization of specifications to meet diverse application needs. For more details, please contact LBTEK technical support.

Plano-Convex (PCX) Lenses, UV Fused Silica, Uncoated: 190 nm-2.1 μm, Mounted

  • Substrate Material: UVFS
  • Operating Wavelength: 190 nm-2.1 μm
  • Application: Imaging, Collimation, Beam Expansion
  • Mounted in Mechanical Housing

LBTEK plano-convex lenses are made of UV-grade fused silica glass, offering better homogeneity and lower thermal expansion coefficient compared to N-BK7 glass, making them ideal for ultraviolet and near-infrared wavelength applications. LBTEK plano-convex lenses feature positive focal lengths and are commonly used in imaging or beam collimation applications. LBTEK mounted lenses come mounted in standard lens tubes, with product model, type, diameter, and focal length engraved on the surface for easy identification.

Clear Aperture90% CA
Operating Wavelength190 nm-2.1 μm
Diameter50.8 mm
Eccentricity≤3 arcmin
Design Wavelength587.6 nm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
Curve - Transmission-VS-Wavelength（Uncoating：190-2100-nm）
Curve - Transmission-VS-Wavelength（Uncoating：190-2100-nm）
