WaveQuanta

Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 700-1100nm MCX10815-B

MCX10815-B
$65.45
In Stock
Key Specifications
Wavelength 700.0nm
Diameter 50.8mm
LIDT 0.8J/cm²
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 700-1100nm — Model MCX10815-B

Operating wavelength 700 nm-1100 nm, focal length 150.0 mm, Ø50.8 mm, substrate N-BK7.

Product Description

  • Substrate: N-BK7
  • Operating Wavelength: 700 nm-1100 nm
  • Application: Imaging, Beam Expansion or Reduction

Plano-convex lenses have one convex side and one flat side, a positive focal length, and are coated on both sides with an anti-reflection coating (AR) from 700 nm to 1100 nm. They are primarily used to reduce reflectivity within this wavelength range. They are typically used for applications such as beam reduction, focal length reduction, or image magnification. To reduce spherical aberration, plano-convex lenses are used for collimating a beam so that the beam is incident on the curved surface of the lens; when used for point light source collimation, the beam is incident on a flat surface. LBTEK uses N-BK7, the most common lens material, for a variety of lens production. N-BK7 is the most common lens material used in visible and near-infrared applications. Our lenses are meticulously machined and rigorously quality-controlled, ensuring that LBTEK provides high-quality lenses at reasonable prices.

Plano-Convex (PCX) Lenses, N-BK7, AR Coating: 700-1100nm

  • Substrate Material: N-BK7
  • Application: Imaging, Collimation, Beam Expansion
  • Mounted in Mechanical Housing
  • Working Wavelength: 700 nm-1100 nm

LBTEK plano-convex lenses have positive focal lengths and are commonly used in applications such as imaging or beam collimation. LBTEK plano-convex lenses are manufactured using N-BK7 glass that complies with RoHS standards. N-BK7 is the most commonly used material for high-quality optical components, primarily applied in visible and near-infrared fields. All circular lenses from LBTEK come mounted with standard lens tubes or lens mounting adapters. These mechanical components are engraved with product model, type, diameter, and focal length for easy identification by users.

Clear Aperture90% CA
Damage Threshold0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)
Diameter Tolerance+0.00/-0.10 mm
Clear Aperture90% CA
Operating Wavelength700 nm-1100 nm
Diameter50.8 mm
Eccentricity≤3 arcmin
Design Wavelength587.6 nm
Damage Threshold0.80J/cm2@980nm, 190fs, 100Hz, Ø12.684μm (100 Pulses)
Low damage threshold detected (0.8 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
Curve - N-BK7 UN
Curve - N-BK7 UN

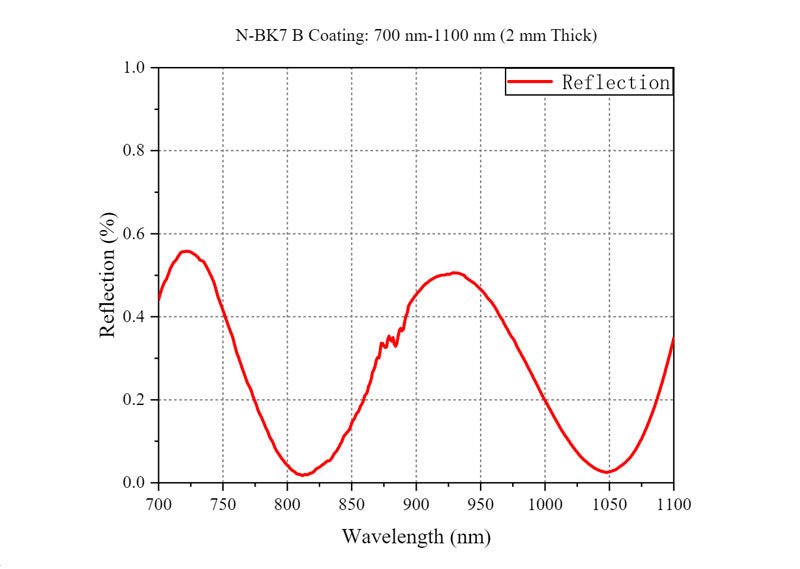

Curve - N-BK7 B
