Quartz Multi-Order Half-Wave Plate — MHWP20-808BM

Name: Quartz Multi-Order Half-Wave Plate — MHWP20-808BM
Brand: WaveQuanta
SKU: MHWP20-808BM
Price: 460.94 SGD
Availability: InStock

MHWP20-808BM

$460.94

In Stock

Key Specifications

Wavelength 808.0nm

Transmittance 0.25%

Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

Quartz Multi-Order Half-Wave Plate (Mounted) — Model MHWP20-808BM

Multi-order quartz λ/2 waveplate at 808 nm, mounted in a standard SM1 housing.

Overview

LBTek's Quartz Multi-Order Half-Wave Plates deliver a half-wave (λ/2) retardance at the design wavelength using a single quartz plate whose thickness is chosen so that the optical path difference equals mλ+λ/2 (where m is a positive integer). Multi-order construction enables a single thicker plate to replace a compound zero-order design, reducing cost while preserving high transmission and damage threshold. Each plate is anti-reflection V-coated on both surfaces (R < 0.25% @ design wavelength, 6° incidence angle) and is mounted in a standard SM1 housing.

Key Features

Multi-order quartz design: mλ+λ/2 retardance (m is a positive integer)
Delay accuracy: ±λ/300
V-type anti-reflection coating: R < 0.25%ᵃ @ design wavelength, 6° AOI, per surface
Surface finish: 10/5, parallelism < 3 arcsec
Transmitted Wavefront Error (TWE) @ 633 nm verified
Pre-mounted in SM1 housing (SM1-8A-SP, with integrated thread)
Design wavelengths from 266 nm to 1550 nm (optional by request)

Applications

Polarization rotation and extinction control
Laser isolator and interferometry systems
Ellipsometry and polarization-resolved imaging
Integration with polarizing beamsplitters and prisms

Optical component material	Quartz Crystal
Design Wavelength	808 nm
Optical element diameter	25.4 mm
Optical element diameter tolerance	+0.0/-0.1 mm
Clear Aperture	>90% CA
Operating Wavelength	808 nm
Latency	mλ+λ/2 (m is a positive integer)
Delay accuracy	±λ/300
Coating	V-type anti-reflection coating
Anti-reflective coating	R<0.25%ᵃ@Design Wavelength (6°incidence angle, single surface)
Surface finish (scratches/pits)	10/5
Surface Parallelism	<3 arcsec
Transmitted Wavefront Error (TWE) (@633 nm)	λ/10
Installation Service Included	Yes
Housing Model	SM1-8A-SP (lens tube, SM1internal/external thread)
Mechanical housing length	30.5 mm
Mechanical housing diameter tolerance	-0.02/-0.05 mm
Mechanical housing thickness	12 mm (incl. thread length)

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

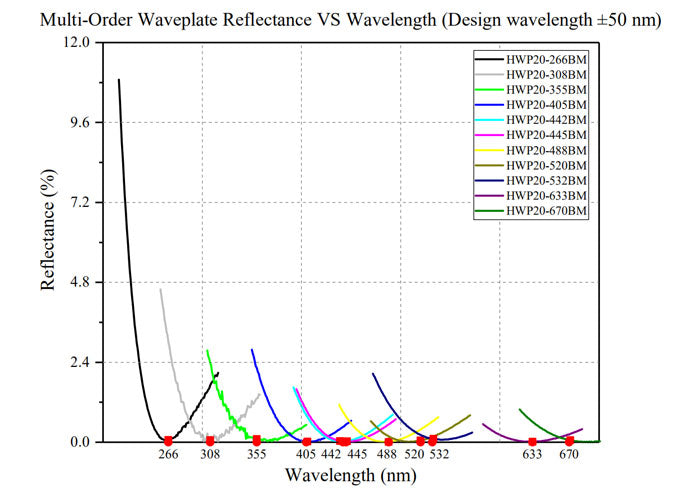

Curve 1

Curve 2

Curve 3

Curve 4

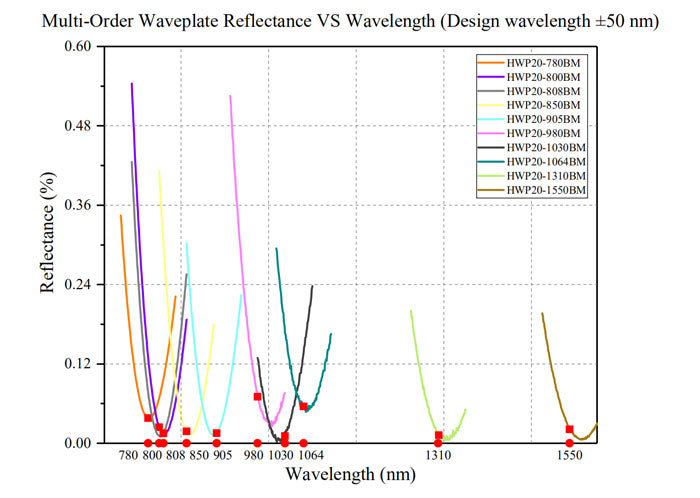

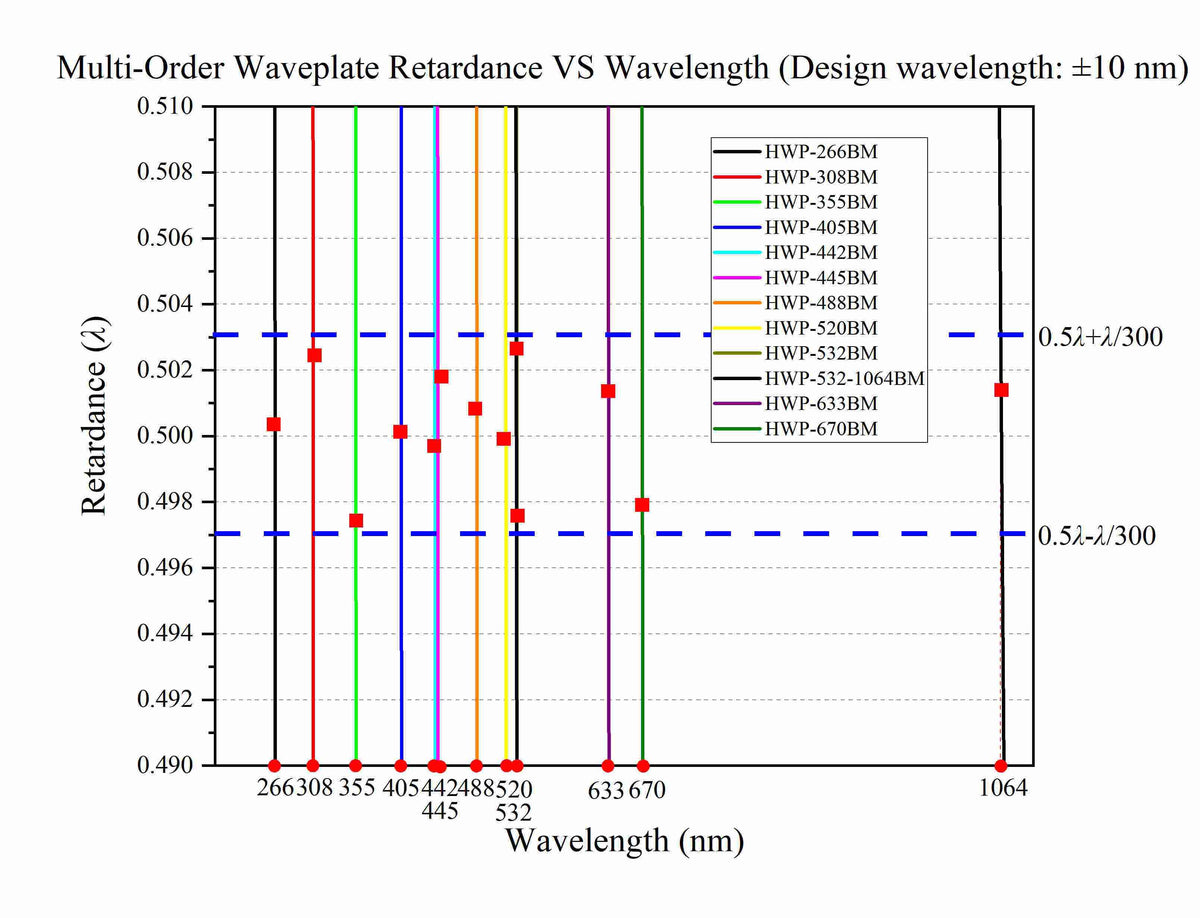

The Curve of Center Wavelength Retardance of Waveplate (±10 nm）

Curve 6

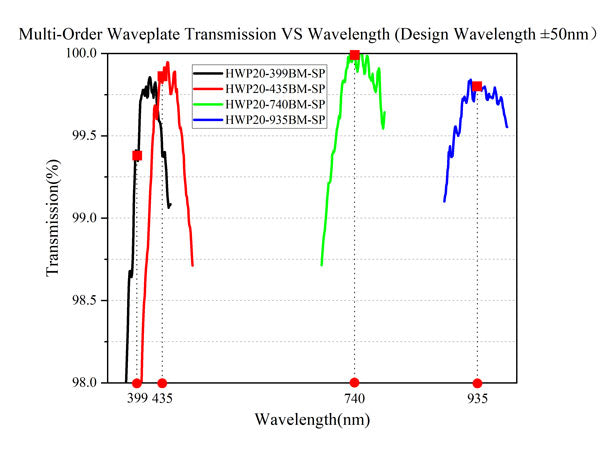

Curve - Multi-Order-Waveplate-Transmission-VS-Wavelength-(Design-Wavelength-±50nm）_HWP20-xxxBM-SP

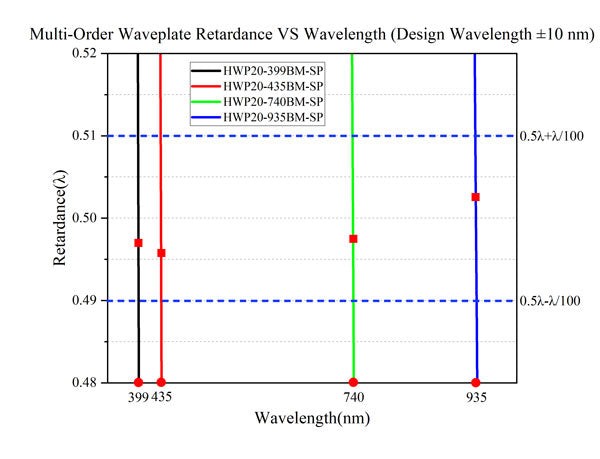

Curve - Multi-Order Waveplate Retardance VS Wavelength_HWP20-xxxBM-SP(±10nm)

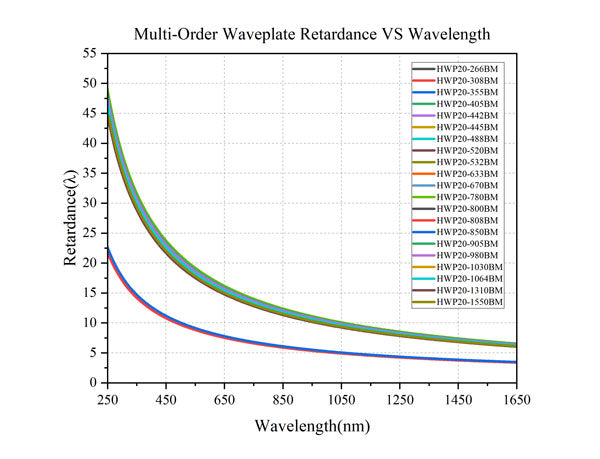

Curve - Multi-Order-Waveplate-Retardance-VS-Wavelength_HWP20-xxxBM

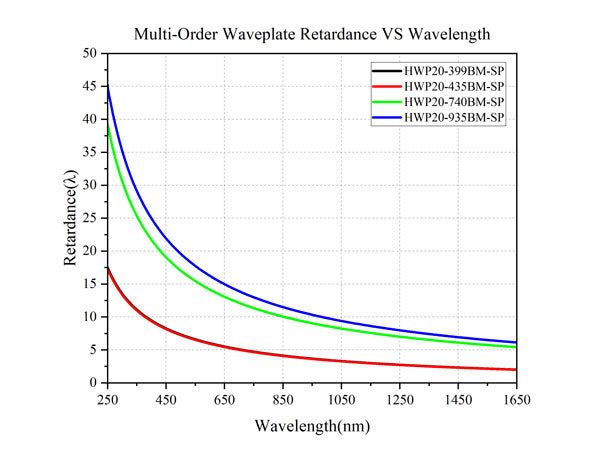

Curve - Multi-Order Waveplate Retardance VS Wavelength_HWP20-xxxBM-SP
