Silicon Windows, Uncoated, 1.2 μm-8.0 μm OW1-Si
OW1-Si$134.26
In Stock
Key Specifications
Wavelength
1.2nm
Diameter
12.7mm
Design Tools
LIDT Calculator
Verify damage threshold for your laser parameters
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

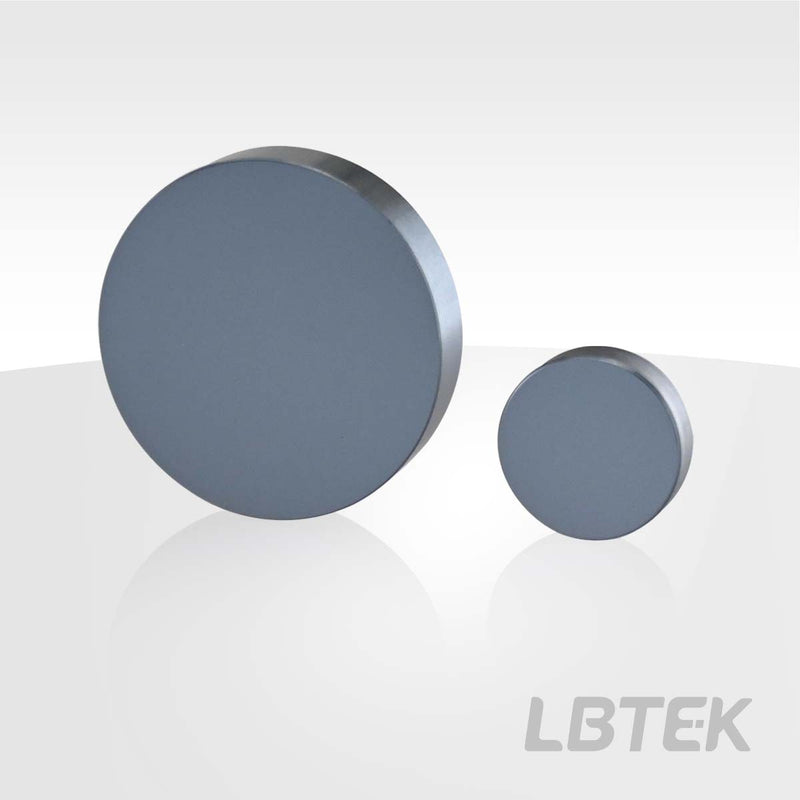

Silicon Windows, Uncoated, 1.2 μm-8.0 μm — Model OW1-Si
Operating wavelength 1.2 μm-8.0 μm, Ø12.7 mm, substrate Si.
Product Description
- Optical Material: Si (Silicon)
- Operating Wavelength: 1.2 μm-8.0 μm
LBTEK offers silicon (Si) precision windows. Silicon material features high thermal conductivity and low density, with strong absorption at a wavelength of 9 micrometers, making it unsuitable for carbon dioxide laser transmission applications. LBTEK also provides customization services for special sizes and coating designs. For inquiries, please contact LBTEK Technical Support.
Silicon Windows, Uncoated, 1.2 μm-8.0 μm
- Optical Material: Silicon (Si)
- Operating Wavelength: 1.2 μm-8.0 μm
Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha
| Clear Aperture | 90% CA |
| Operating Wavelength | 1.2 μm-8.0 μm |
| Thickness | 3.0 mm |
| Diameter | 12.7 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Curve 1
WaveQuanta
Neutral Density Filter, Anti-Reflection Coating 400 nm-700 nm, Installed MNDFA05-20-A
MNDFA05-20-A
λ 400.0nm
$60.43
Product Family: Optics - Silicon Windows (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Silicon Windows, Uncoated, 1.2 μm-8.0 μm OW1-Si Current |
OW1-Si
| 12.7 mm | 90% CA | 1.2 μm-8.0 μm | |
| Silicon Windows, Uncoated, 1.2 μm-8.0 μm OW2-Si |
OW2-Si
| 25.4 mm | 90% CA | 1.2 μm-8.0 μm | View |
