Ultra-fast Enhanced Silver Film Mirrors UFPM05-AG-B

UFPM05-AG-B
$92.04
In Stock
Key Specifications
Wavelength 750.0nm
Diameter 12.7mm
Reflectance 99.0%
Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Gaussian Beam Calculator Model beam propagation through your optical system Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

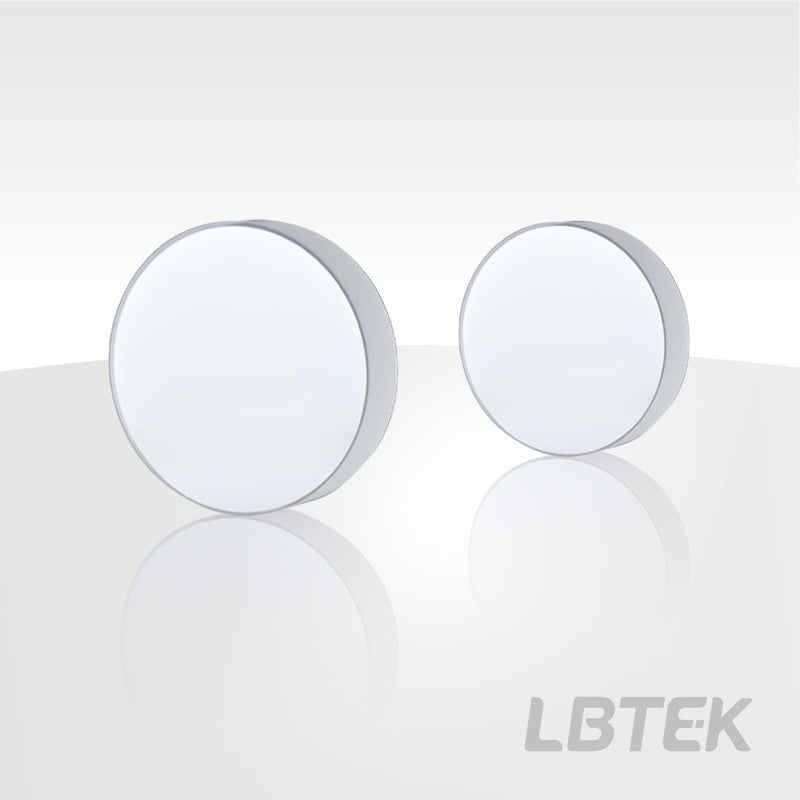

Ultra-fast Enhanced Silver Film Mirrors — Model UFPM05-AG-B

Operating wavelength 750 nm-1000 nm, Ø12.7 mm, substrate UV Fused Silica.

Product Description

  • Ultra-fast enhanced silver coating, Low group delay dispersion
  • Optical material: UV fused silica
  • Operating wavelength: 750 nm-1000 nm

The substrate material of LBTEK ultrafast enhanced silver mirrors is UV-grade fused silica, with a dielectric-enhanced silver coating on the surface that provides high reflectivity and low group delay dispersion in the 750 nm-1000 nm range, making it suitable for femtosecond pulse laser applications. LBTEK offers two sizes: φ12.7 mm and φ25.4 mm. All our mirrors undergo precision machining and strict quality control to ensure LBTEK delivers high-quality mirror products at reasonable prices. LBTEK also provides various customization services—please contact LBTEK Technical Support for details.

Ultra-fast Enhanced Silver Film Mirrors

  • Wavelength Range from 750 nm to 1000 nm
  • Capable to Be Used for Optical Path Deflection
  • Applicable in the Field of Femtosecond Pulse Lasers

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Material UV Fused Silica
Diameter 12.7 mm
Diameter Tolerance +0.0/-0.1 mm
Clear Aperture 90% CA
Thickness 6.0 mm
Thickness Tolerance ±0.2 mm
Operating Wavelength 750 nm-1000 nm
Coating Ultrafast EnhancedTypeSilver Coating
Attribute 1201 Rs＞99%，Rp＞98.5%@750 nm-1000 nm
Surface Quality (Scratch/Dig) 40/20（S/D）
Flatness (@633 nm) λ/10
Surface Parallelism ＜3 arcmin
Attribute 1525 |GDDs| <20 fs²，|GDDp| <30 fs²@750 nm-1000 nm
AOI 45°
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
