Z-Axis Linear Translation Stage LS90-25CZ

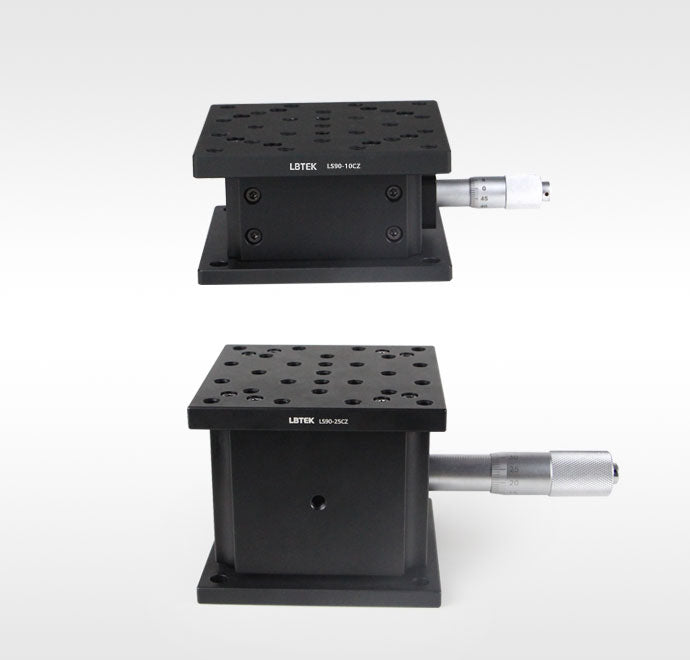

The Z-axis linear translation stages from LBTEK offer travel ranges of 10 mm and 25 mm, with micrometer heads featuring 10 μm minimum graduations. The LS90-10CZ model delivers 3 μm linear translation accuracy with adjustable height ranging from 47.5 mm to 57.5 mm between base mounting surface and plate, while the LS90-25CZ provides 5 μm accuracy with 74 mm to 99 mm height adjustment. Both models maintain 100 μm base-to-plate parallelism and 3 kgf Z-axis load capacity, combining substantial payload capability with high positioning precision. Featuring 90 mm×90 mm stage with 25 mm spaced M6 tapped holes and two alignment holes for multi-axis stacking, these stages include four base mounting holes for direct installation onto 25 mm spaced M6 optical tables. Each purchase includes two Ø5 mm alignment pins, four M6 socket head cap screws, and a 5 mm short-arm hex key.
