16 mm coaxial mounting plate

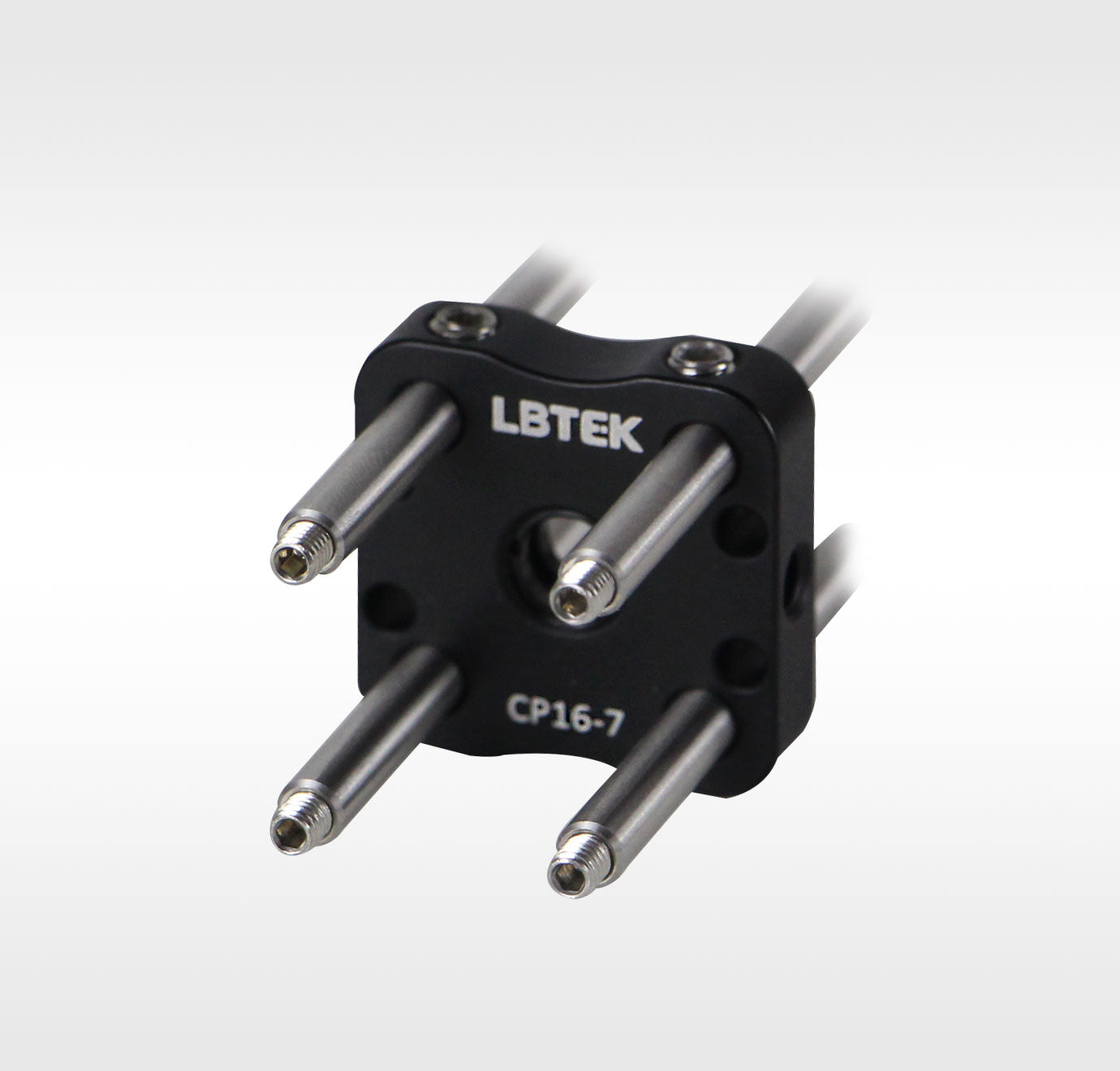

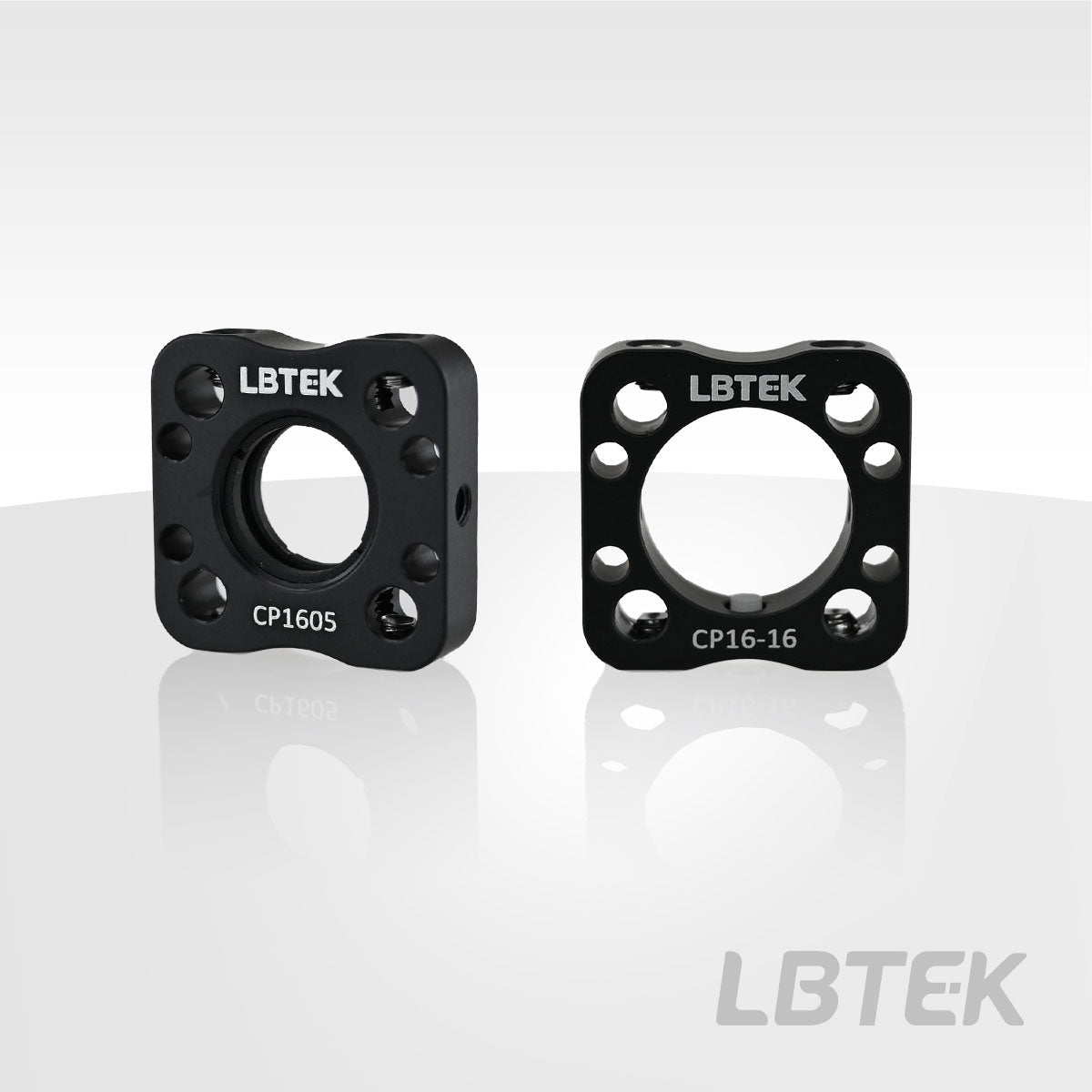

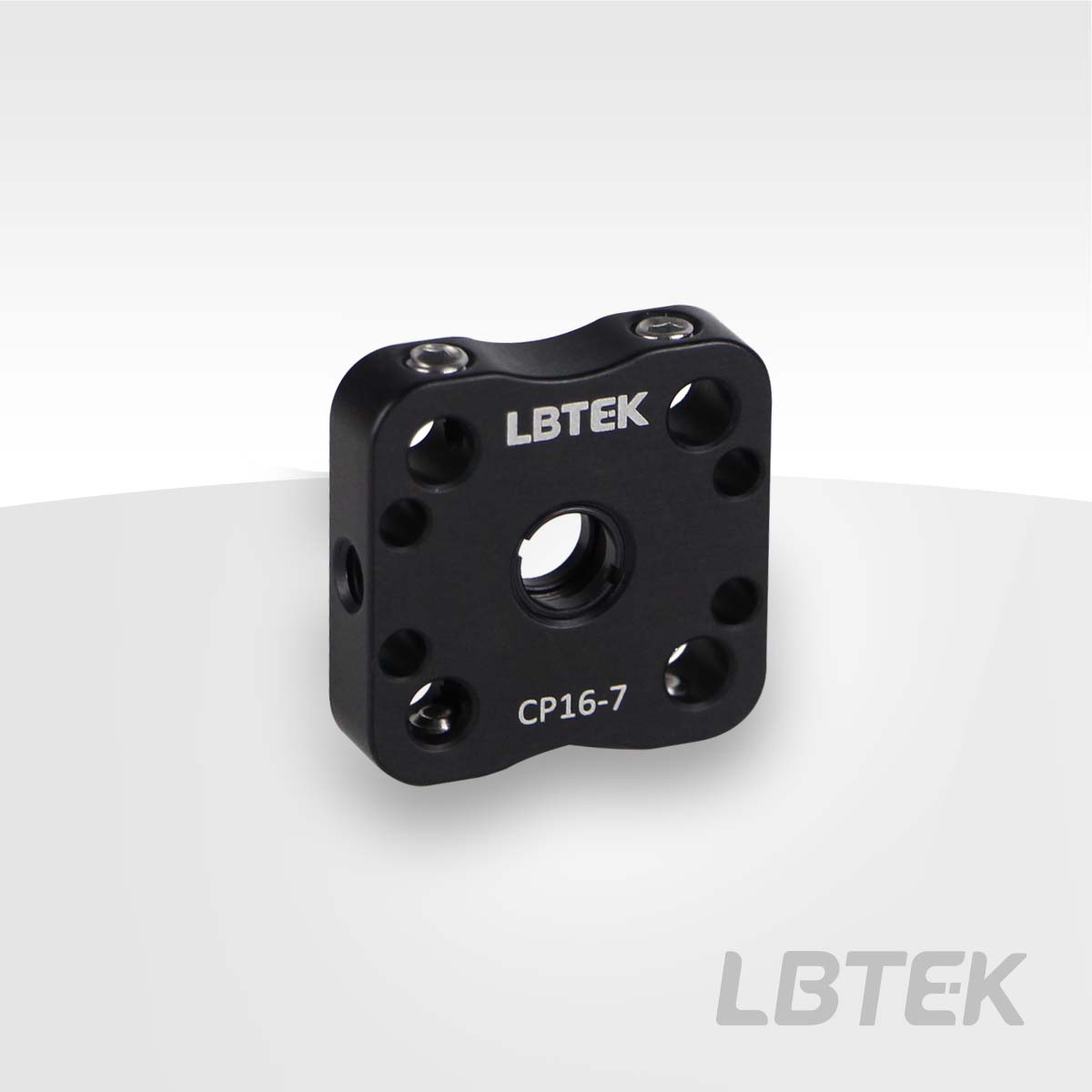

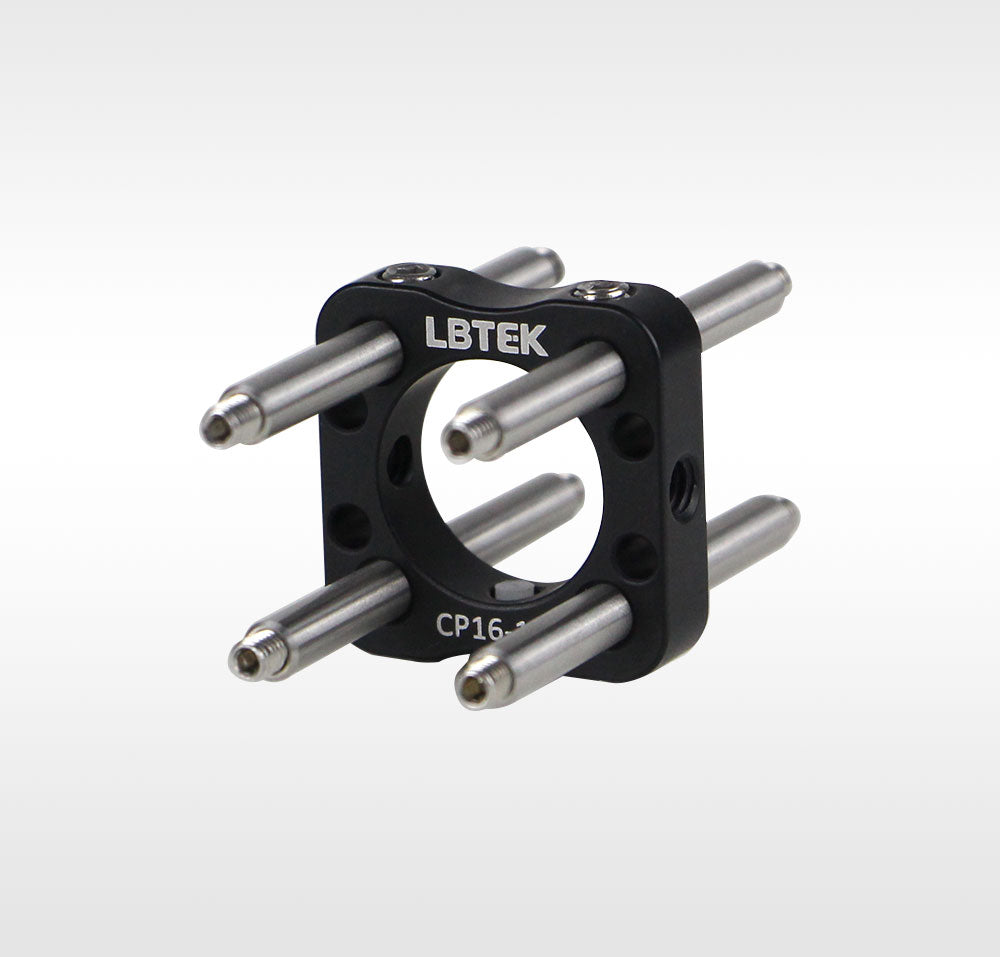

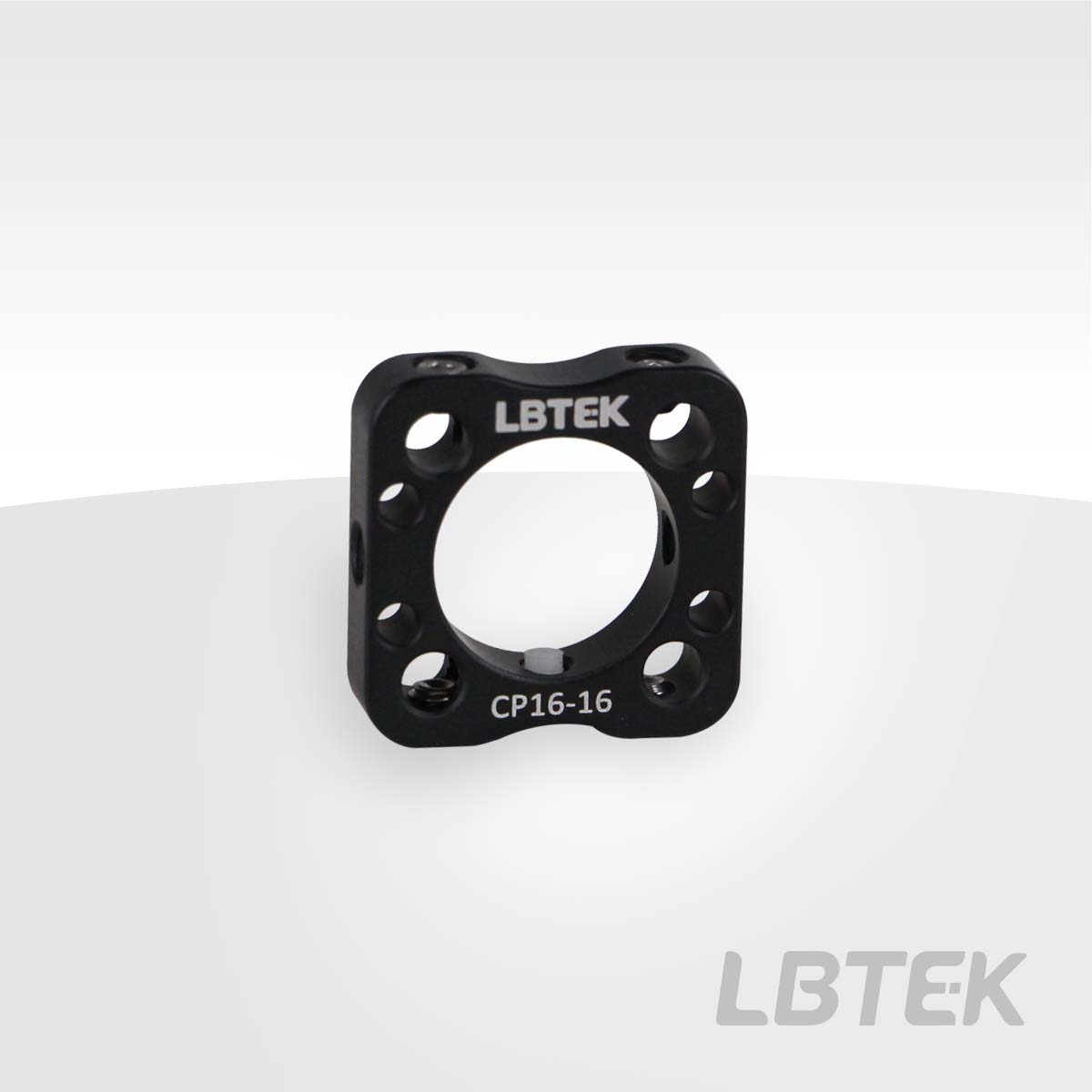

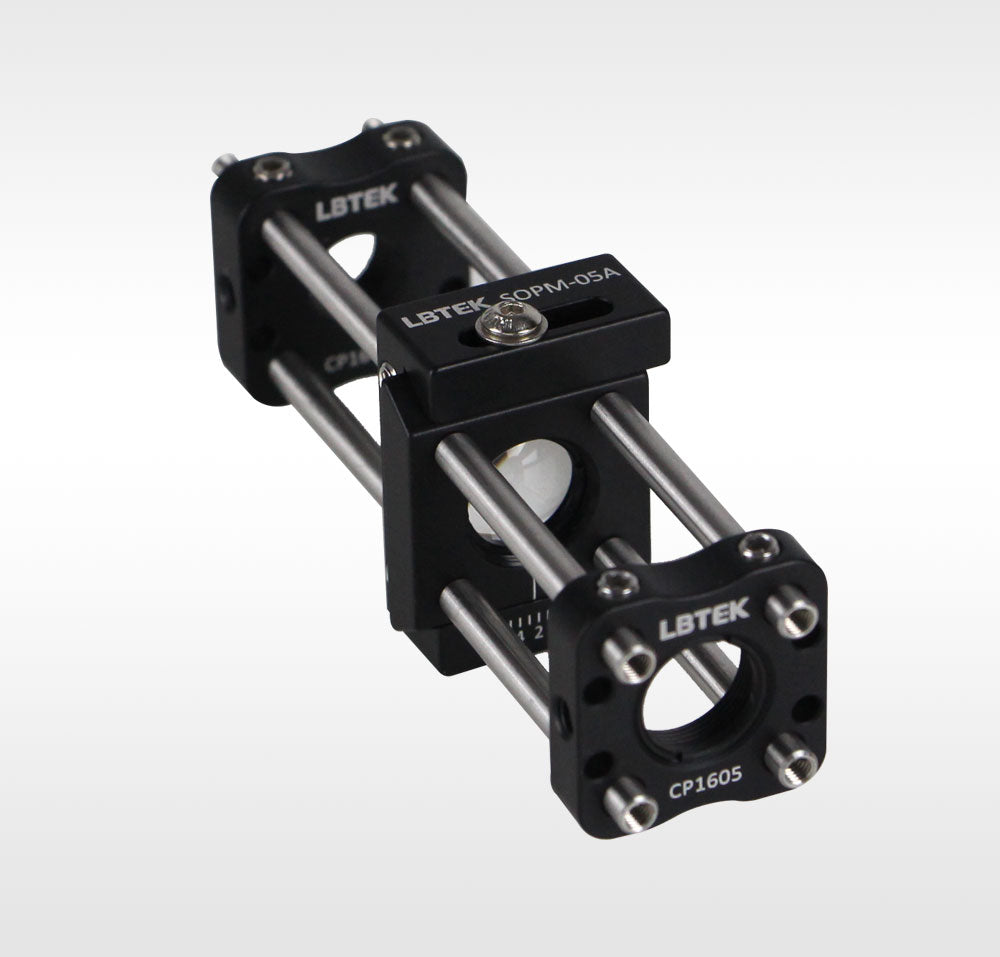

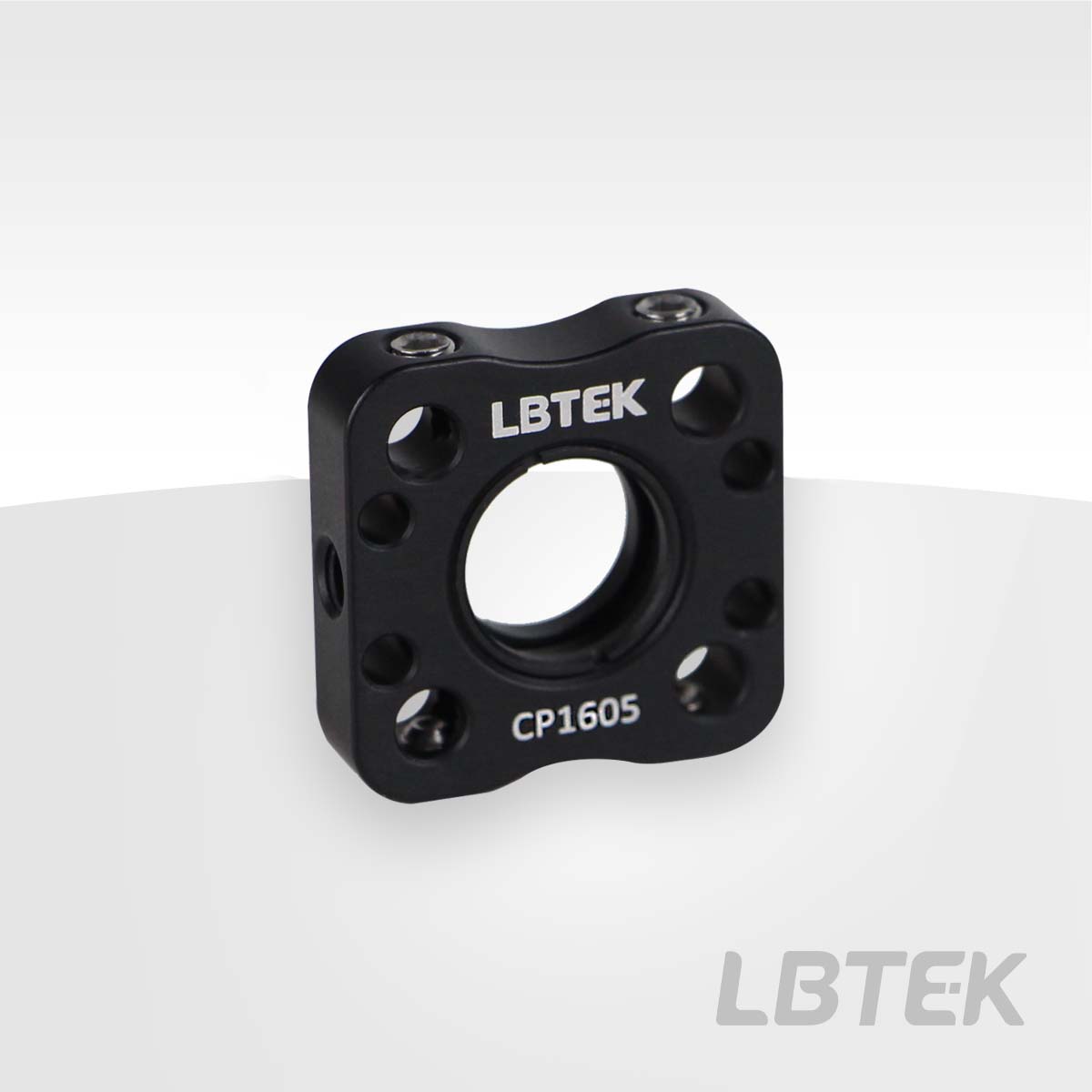

LBTEK offers a variety of coaxial mounting plates in different specifications, made of aluminum alloy with a black anodized surface, suitable for mounting optical components or lens tubes of various sizes. The central mounting hole provides two options for securing optical components: a retaining ring fixation or a set screw fixation with a rubber tip. The retaining ring can accommodate optical components with diameters ranging from Ø5 to Ø12 mm, as well as 12.7 mm, while the set screw fixation is suitable for optical devices with a diameter of Ø16 mm. All coaxial plates feature four through-holes for coaxial rods, allowing free sliding along the rods. Each through-hole is equipped with an M4 locking screw on the side, which can be tightened using a 2.0 mm hex wrench.
