D-Shaped Optical Mounts

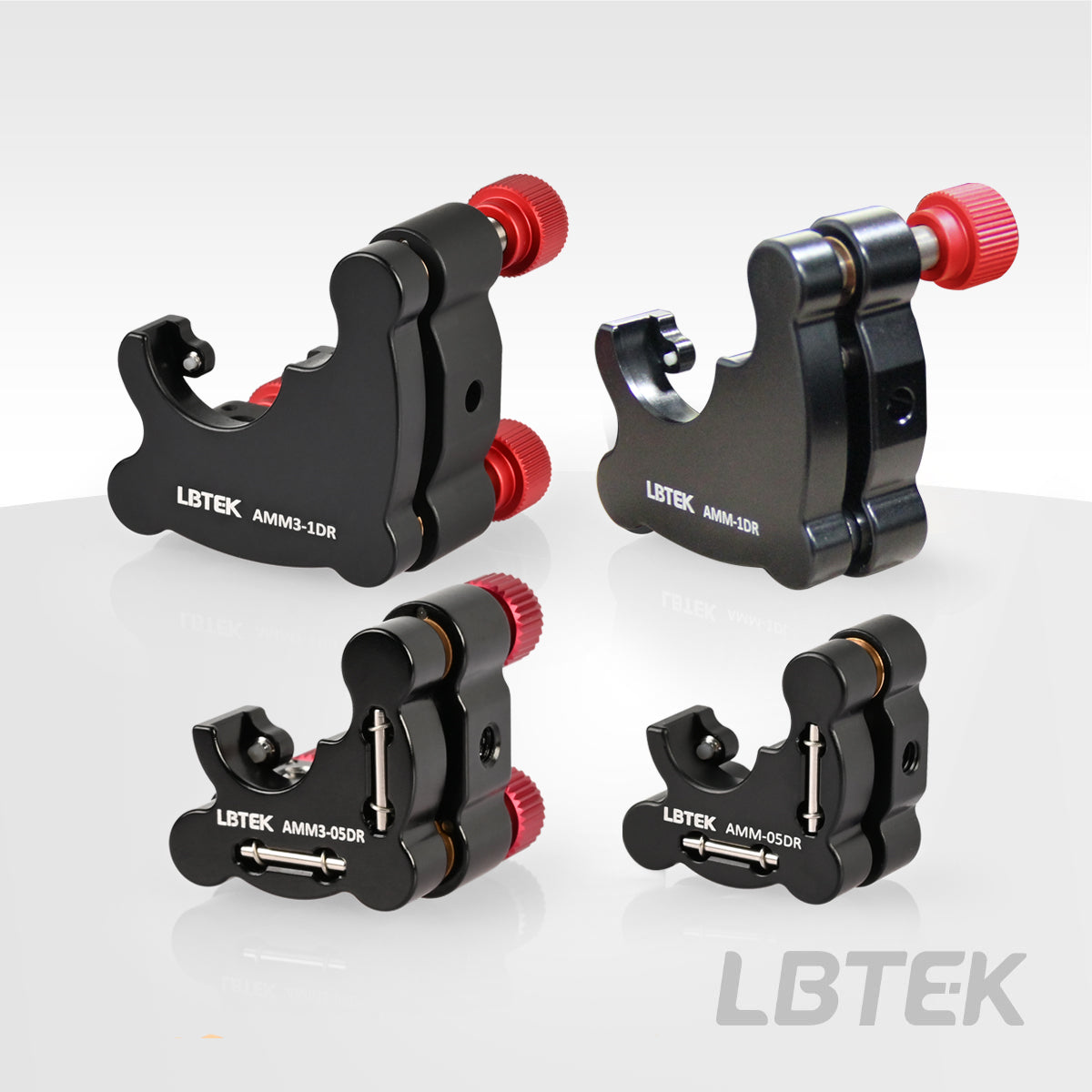

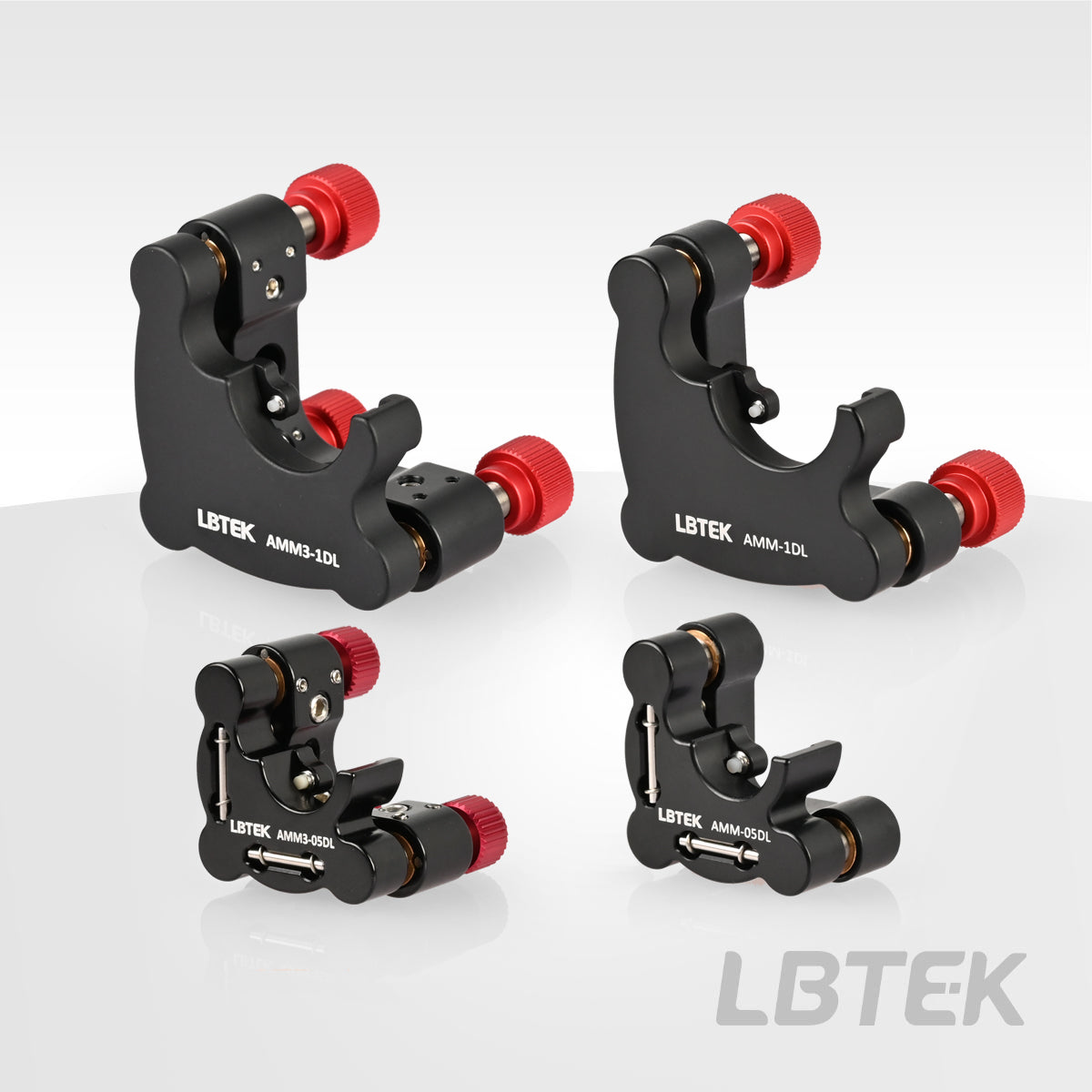

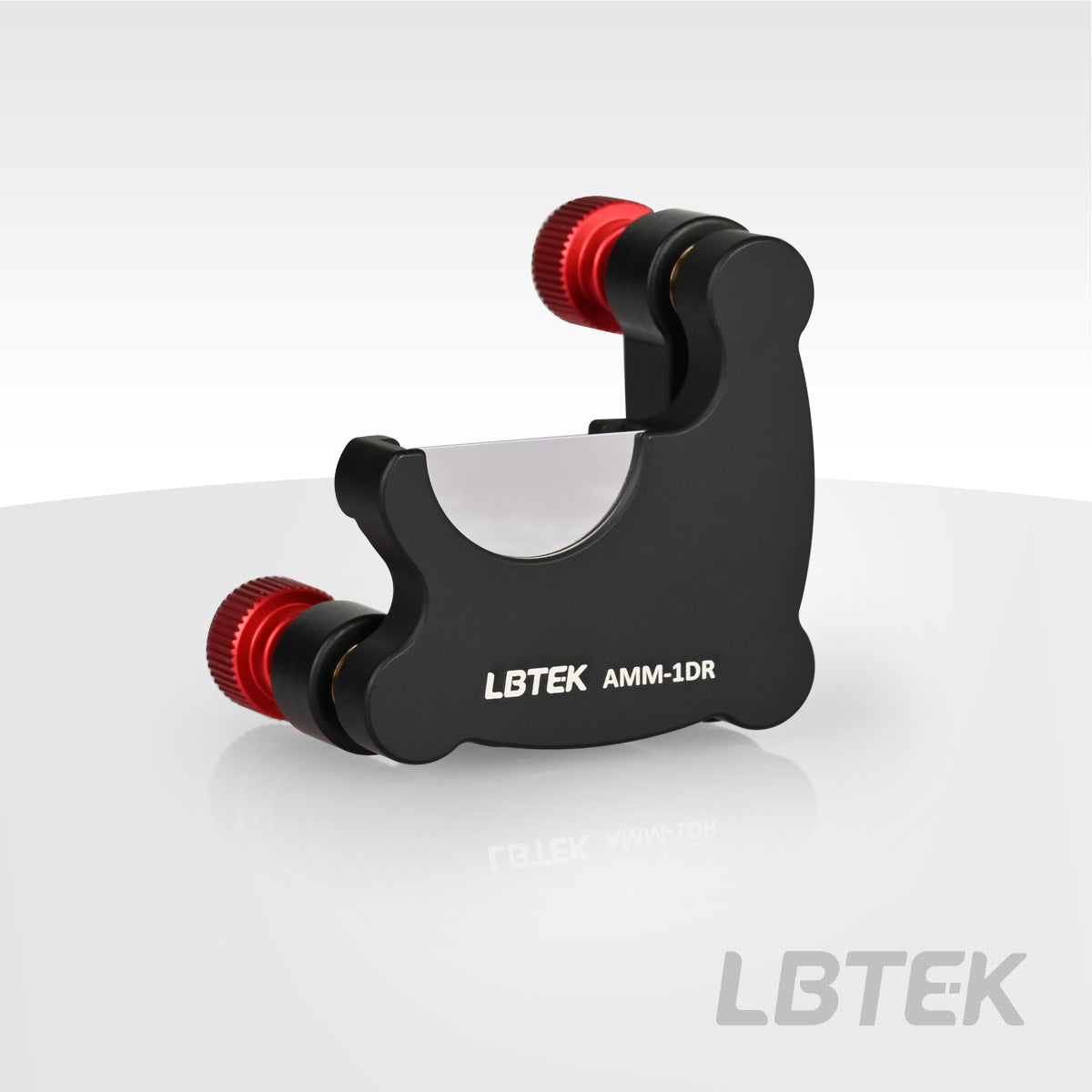

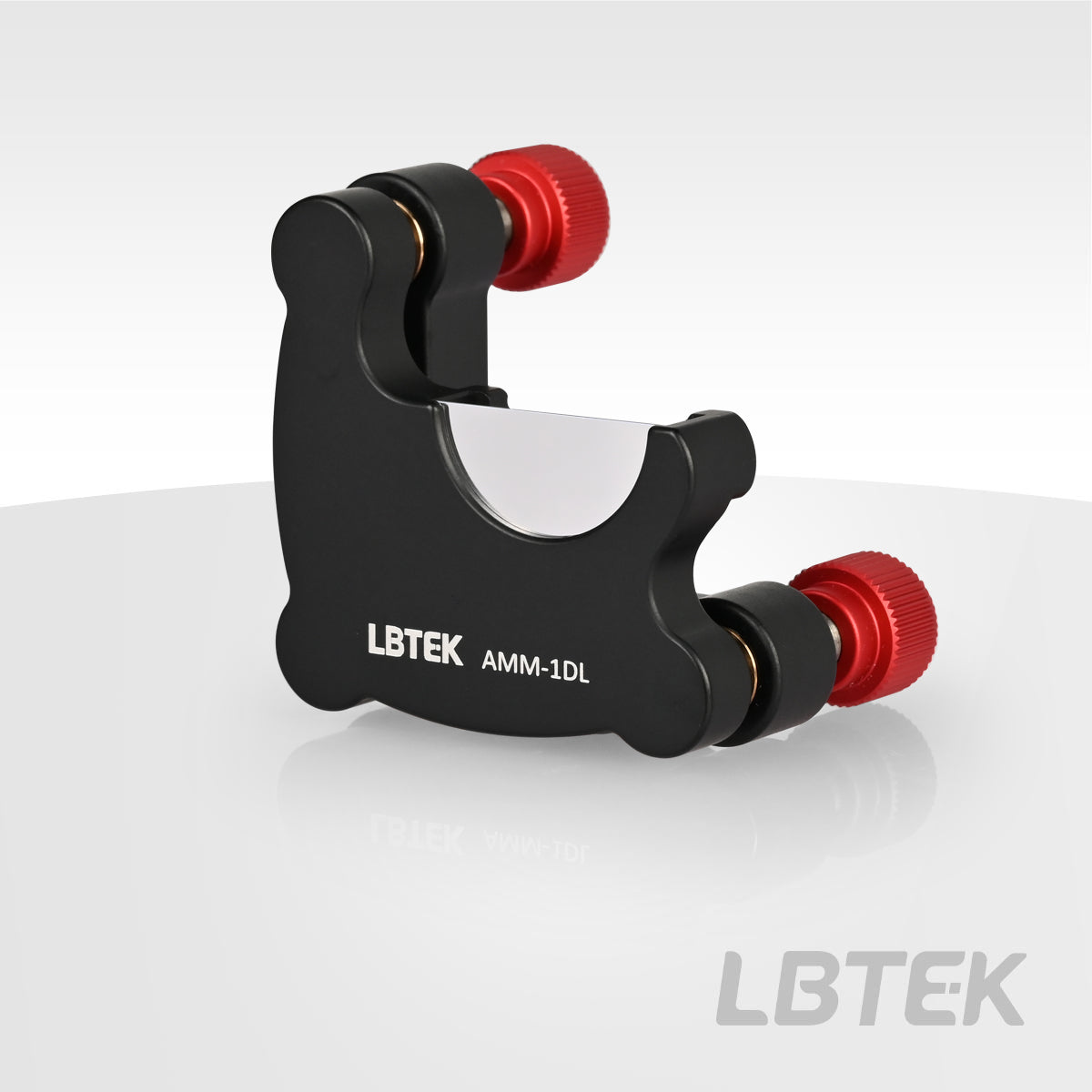

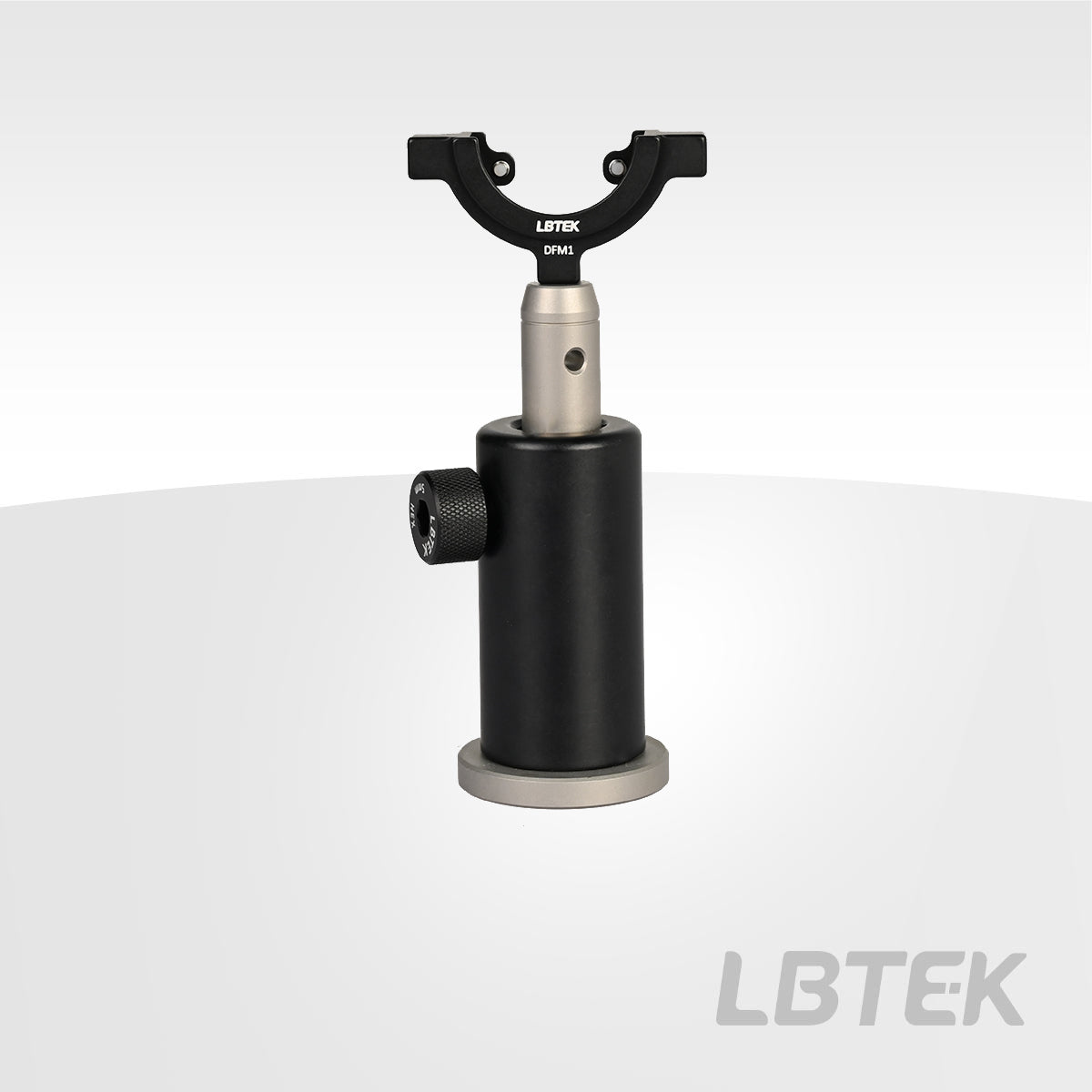

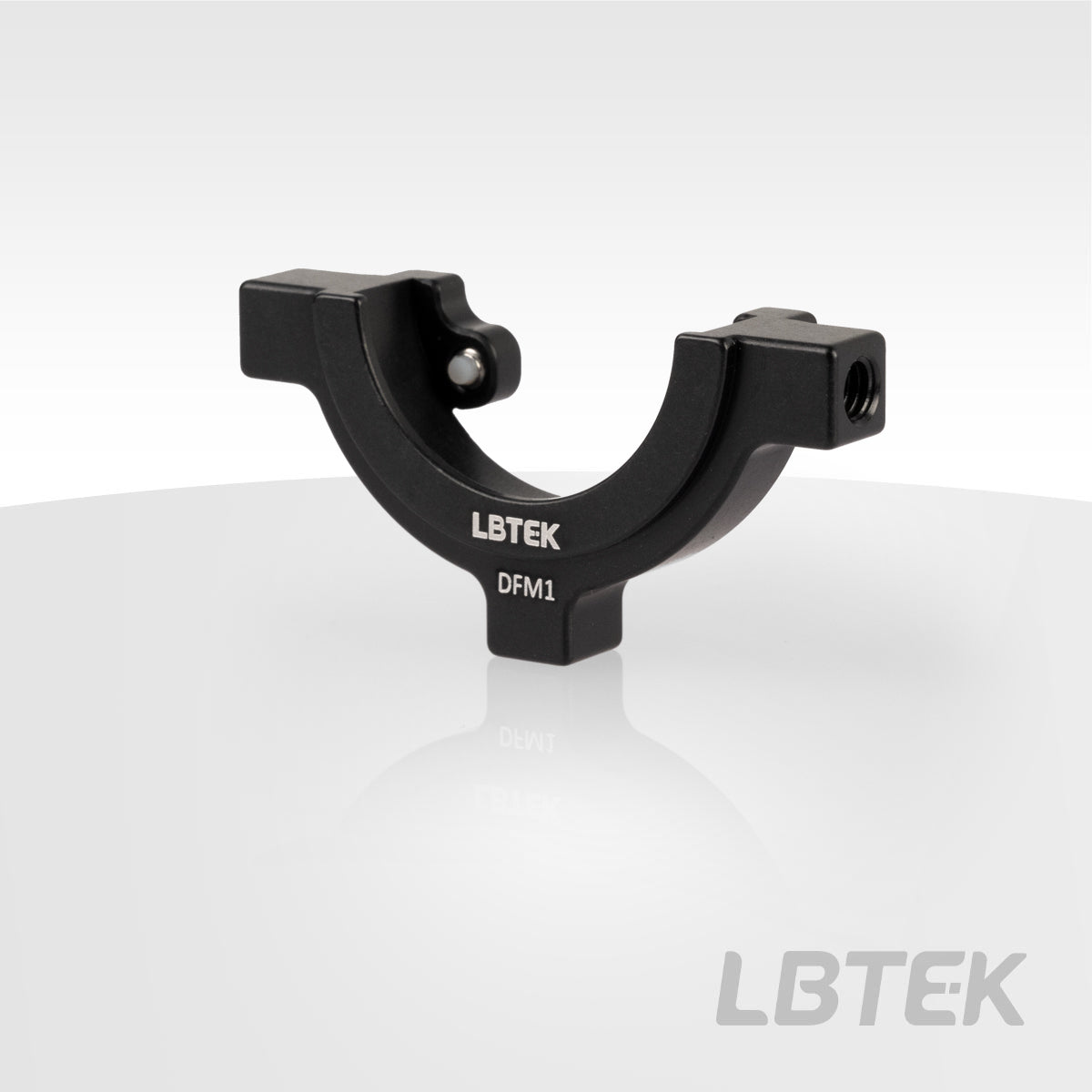

The LBTEK D-Shaped Optical Mount is designed for mounting D-shaped optical components, offering three options: left-handed, right-handed, and fixed. The optical component is secured by two rubber-tipped screws on the back of the D-shaped optical mount. The LBTEK D-Shaped Optical Mount features a compact design that maximizes the clear aperture, preventing obstruction of other beams in beam-splitting. The D-Shaped Optical Mount allows angular adjustment via two or three precision adjustment screw pairs, providing a ±4° adjustment range. The AMM3 series includes three precision adjustment screw pairs, with threaded bushings featuring a locking mechanism. The locking screws can be secured using a 2.0 mm hex wrench. Additionally, the D-Shaped Optical Mount has one M4 countersunk/threaded mounting hole on either the side or the bottom. When purchasing the LBTEK D-Shaped Optical Mount in the 1-inch series, two M4 socket head cap screws and one 1.5 mm hex wrench are included. The 0.5-inch series comes with a 1.5 mm hex wrench and a 2.0 mm hex wrench.
