D-Shaped Optical Mounts AMM-05DR
AMM-05DR$85.53
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

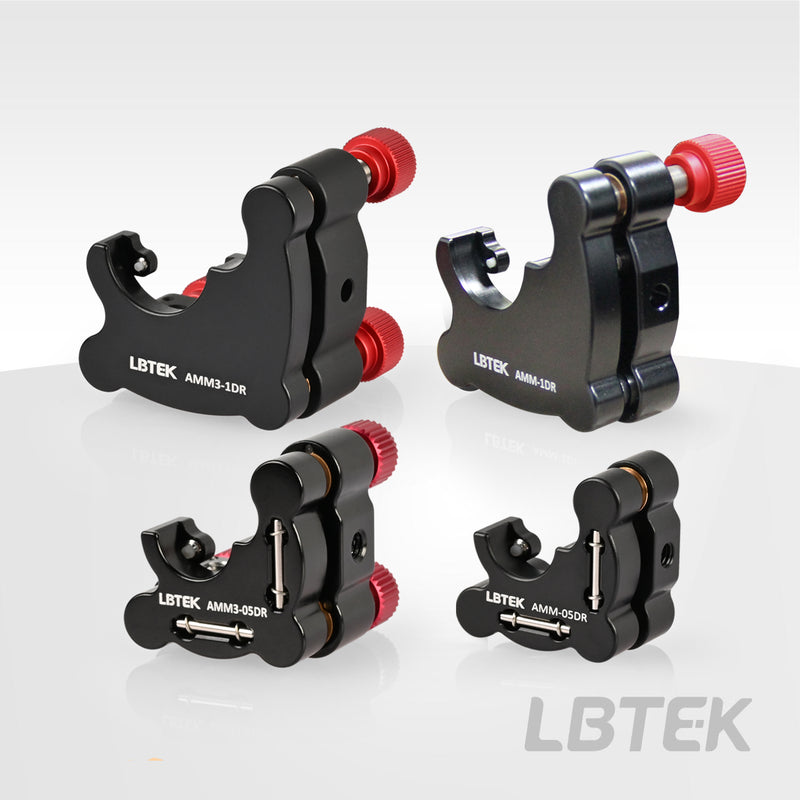

D-Shaped Optical Mounts — Model AMM-05DR
✔ In Stock — Ships Today
LBTEK D-Shaped Optical Mount, designed for mounting D-shaped optical components with diameters of 25.4 mm/12.7 mm. The optical component is secured by two rubber-tipped screws on the back of the D-shaped optical mount. There is one M4 countersunk/tapped mounting hole on either the side or bottom of the D-shaped optical mount. When purchasing the LBTEK D-Shaped Optical Mount 1-inch series, it comes with 2 M4 socket head cap screws and a 1.5 mm hex key. The 0.5-inch series includes a 1.5 mm hex key and a 2.0 mm hex key.
Key Features
- For D-shaped optical components with diameters of 25.4 mm/12.7 mm
- Right-handed mounting
Application
D-Shaped Optical Mounts are commonly used for D-shaped optical components.
No specifications available for this product.
Product Family: D-Shaped Optical Mounts (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| D-Shaped Optical Mounts DFM1 |
DFM1
| — | — | — | View |
| D-Shaped Optical Mounts AMM-1DR |
AMM-1DR
| — | — | — | View |
| D-Shaped Optical Mounts AMM-05DR Current |
AMM-05DR
| — | — | — | |
| D-Shaped Optical Mounts AMM3-05DR |
AMM3-05DR
| — | — | — | View |
| D-Shaped Optical Mounts AMM3-1DR |
AMM3-1DR
| — | — | — | View |
| D-Shaped Optical Mounts AMM-05DL |
AMM-05DL
| — | — | — | View |
| D-Shaped Optical Mounts AMM3-05DL |
AMM3-05DL
| — | — | — | View |
| D-Shaped Optical Mounts AMM-1DL |
AMM-1DL
| — | — | — | View |
| D-Shaped Optical Mounts AMM3-1DL |
AMM3-1DL
| — | — | — | View |
