Free-space displacement adjustment mount

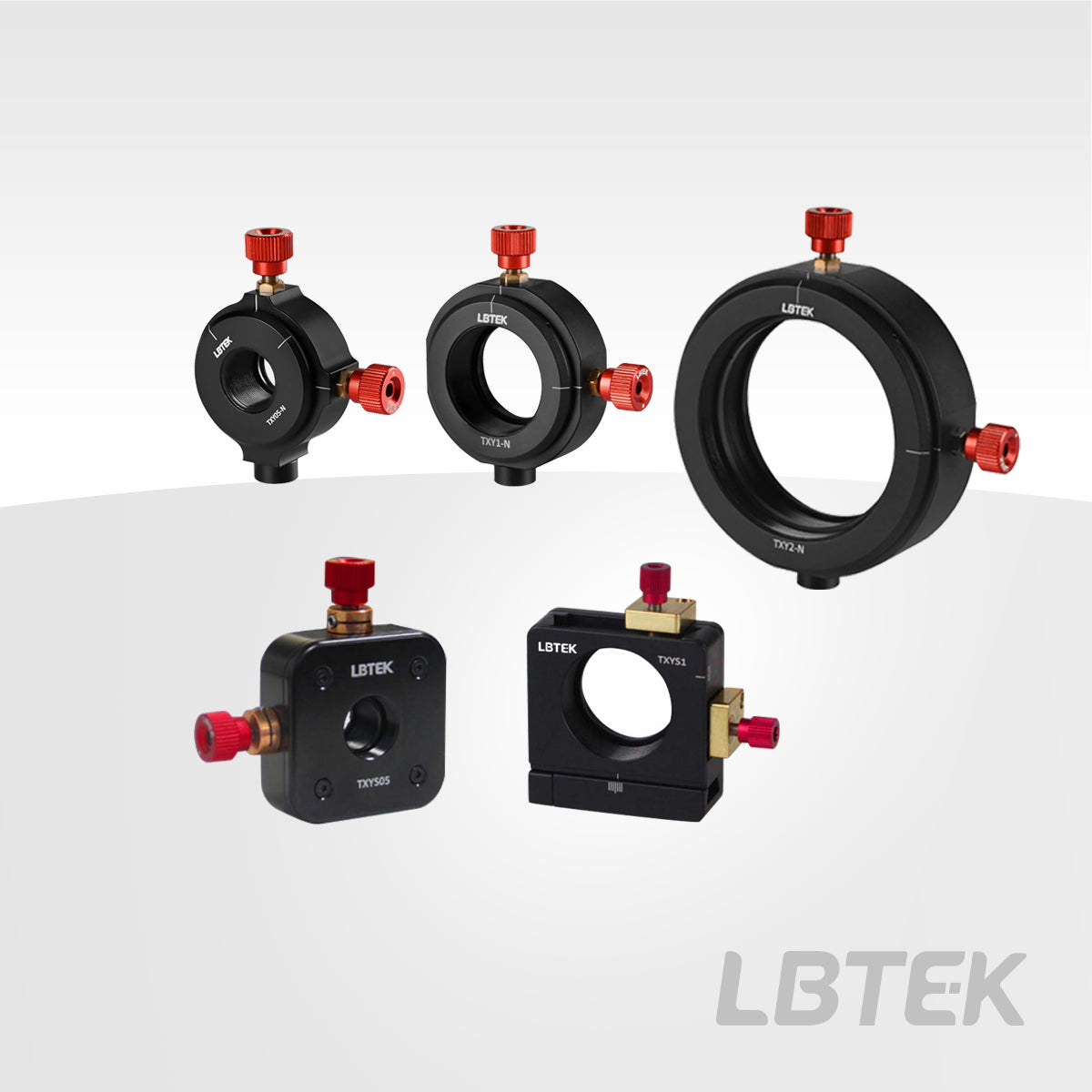

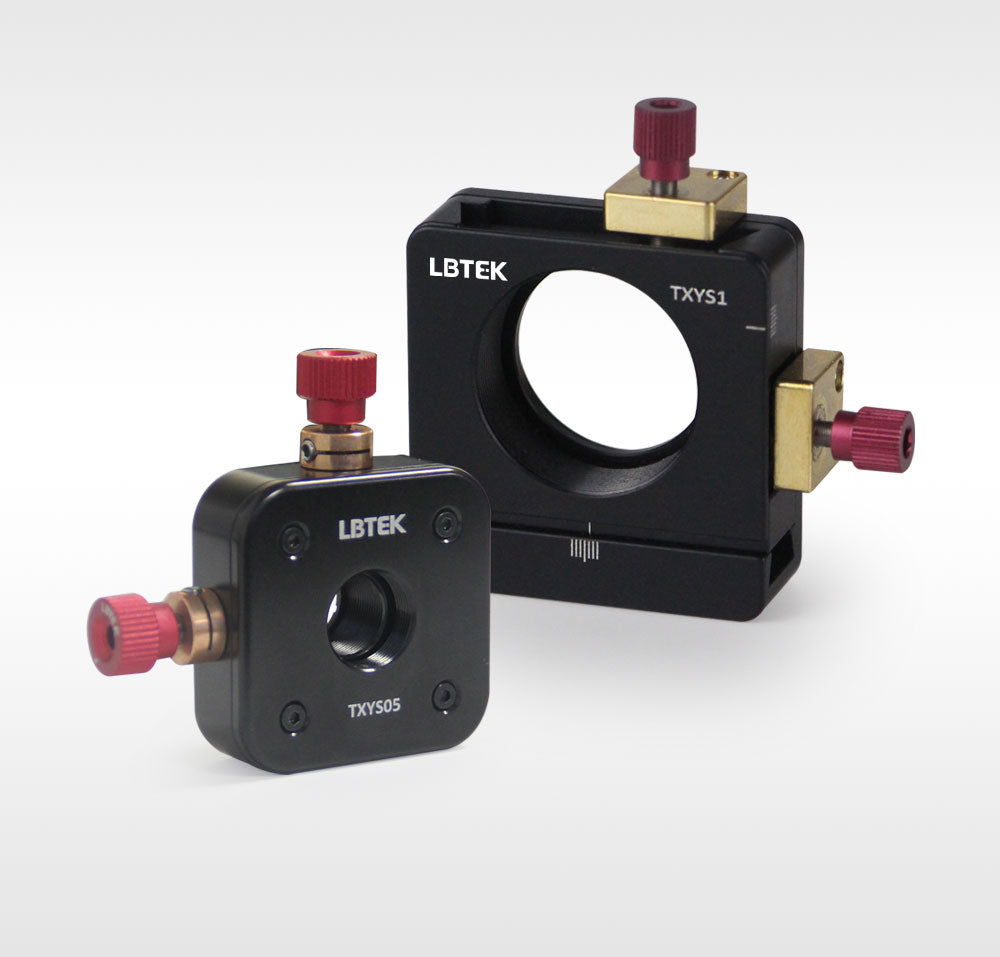

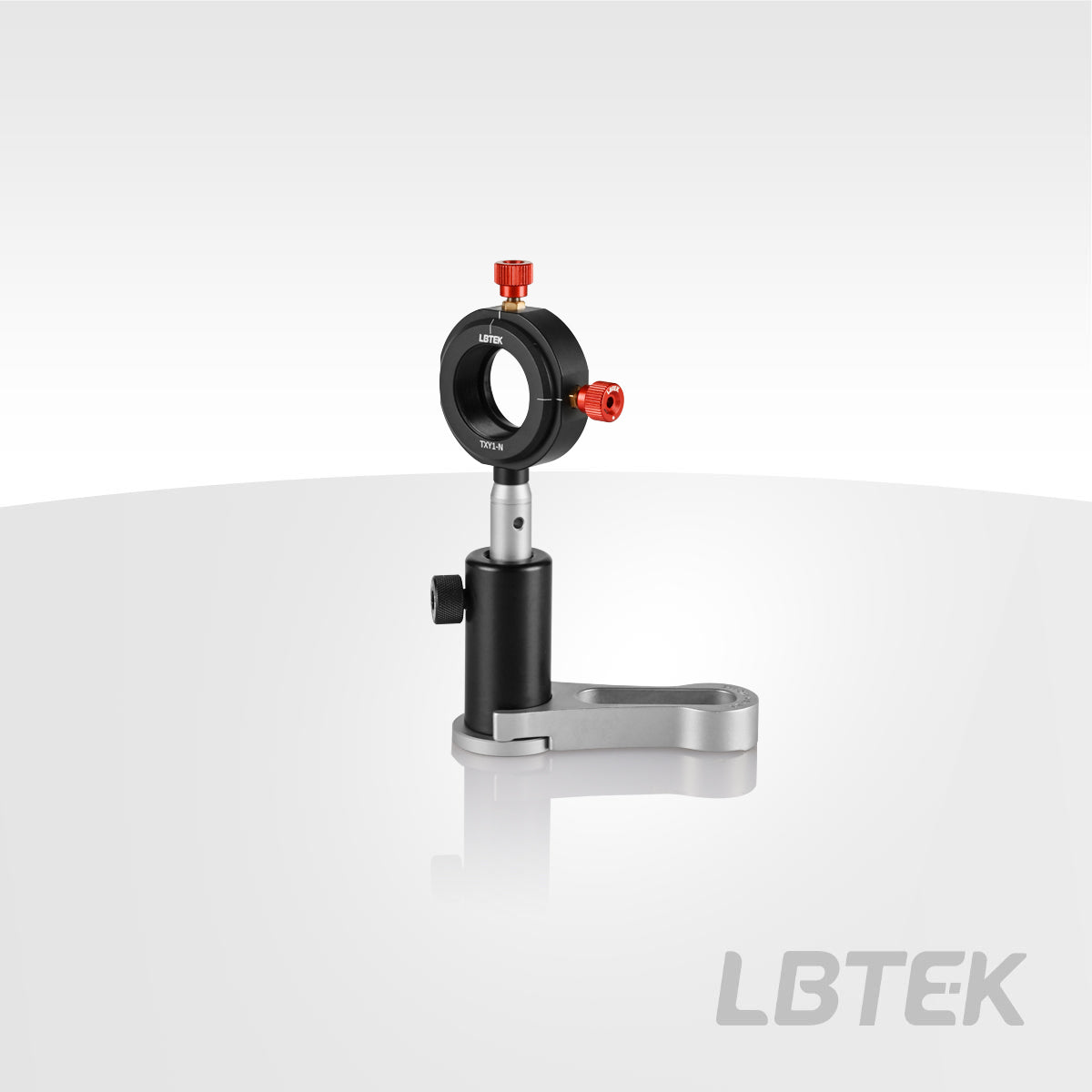

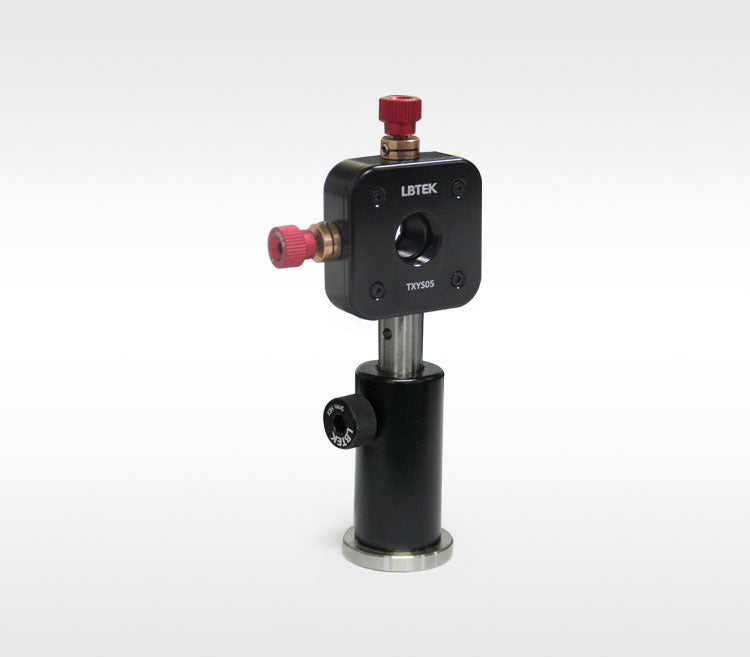

LBTEK Free Space Translation Mount, capable of achieving XY directional displacement travel. The TXYS05 features a central SM05 internal thread and includes an SM05R retaining ring, commonly used for mounting Ø12.7 mm optical components, SM05 lens tubes, or adapters, with XY travel of ±1 mm. The TXYS1 features a central SM1 internal thread and includes an SM1R retaining ring, commonly used for mounting Ø25.4 mm optical components, SM1 lens tubes, or adapters, with XY travel of ±1.5 mm. The mount includes centering indicator lines in both horizontal and vertical directions, and two adjusters with a precision of 0.25 mm/revolution. There are two M4 threaded holes on the bottom or side for free-space mounting of Ø12.7 mm optical stainless steel posts.
