Free-space displacement adjustment mount TXYS05

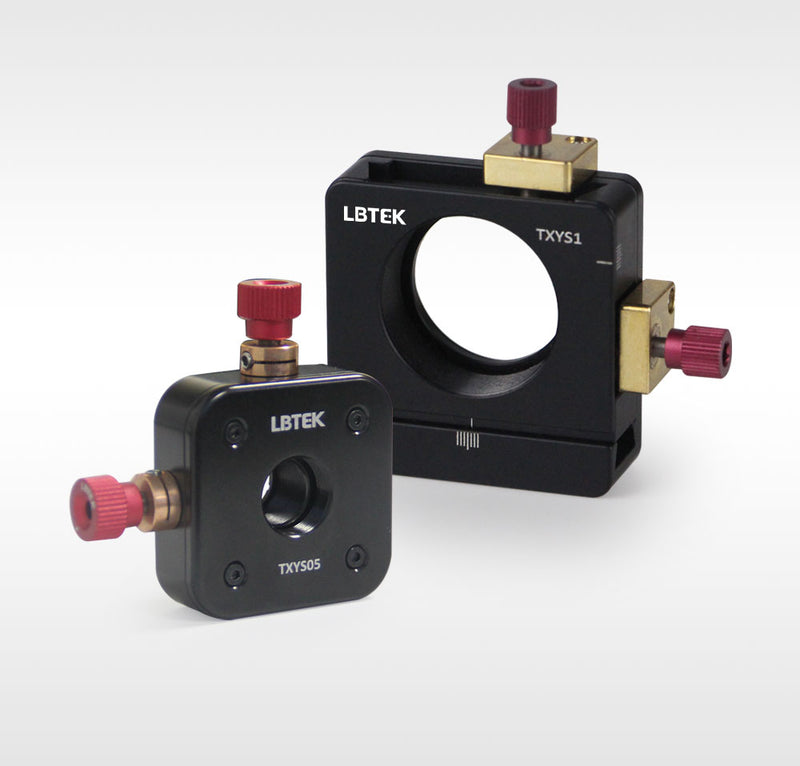

The LBTEK Free-Space Translation Mount provides a travel range of ±1.0 mm or ±1.5 mm in the X and Y axes. The translation adjustment in the X and Y directions is driven by two threaded pairs with a 0.25 mm pitch, offering an adjustment precision of 0.25 mm per revolution. The TXYS05 model features a central SM05 internal thread for mounting optical components up to Ø12.7 mm in diameter and 10.3 mm in thickness (includes 1 SM05R retaining ring for securing optical components) and connecting to SM05 lens tubes or adapters. It offers an XY travel range of ±1 mm. The X and Y threaded pairs are equipped with M3 locking screws, allowing position locking by tightening the set screws inside the threaded bushings using a 1.5 mm hex wrench. The TXYS1 model features a central SM1 internal thread for mounting optical components up to Ø25.4 mm in diameter and 8.0 mm in thickness (includes 1 SM1R retaining ring for securing optical components) and connecting to SM1 lens tubes or adapters. It provides an XY travel range of ±1.5 mm.
