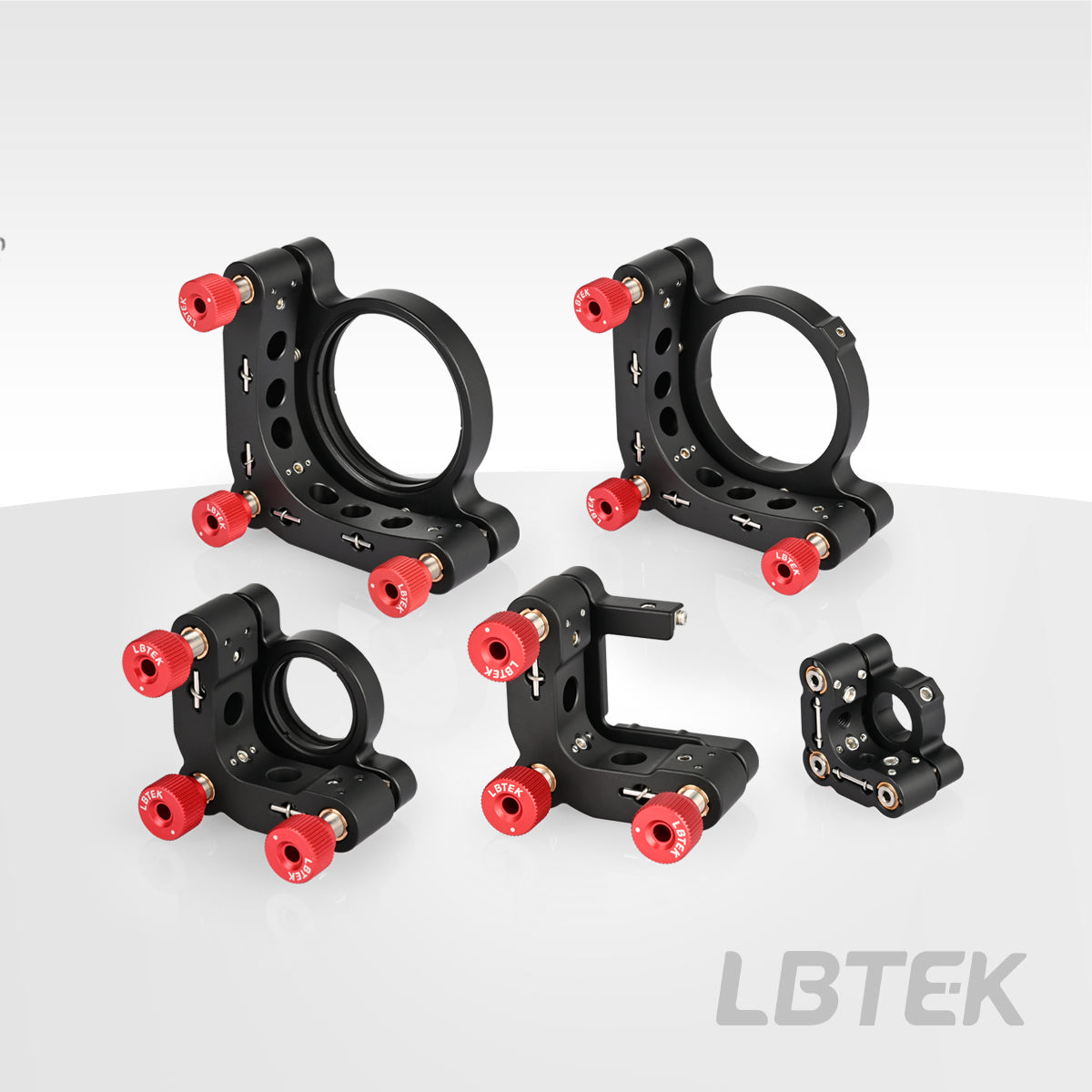

Rectangular Optical Mounts

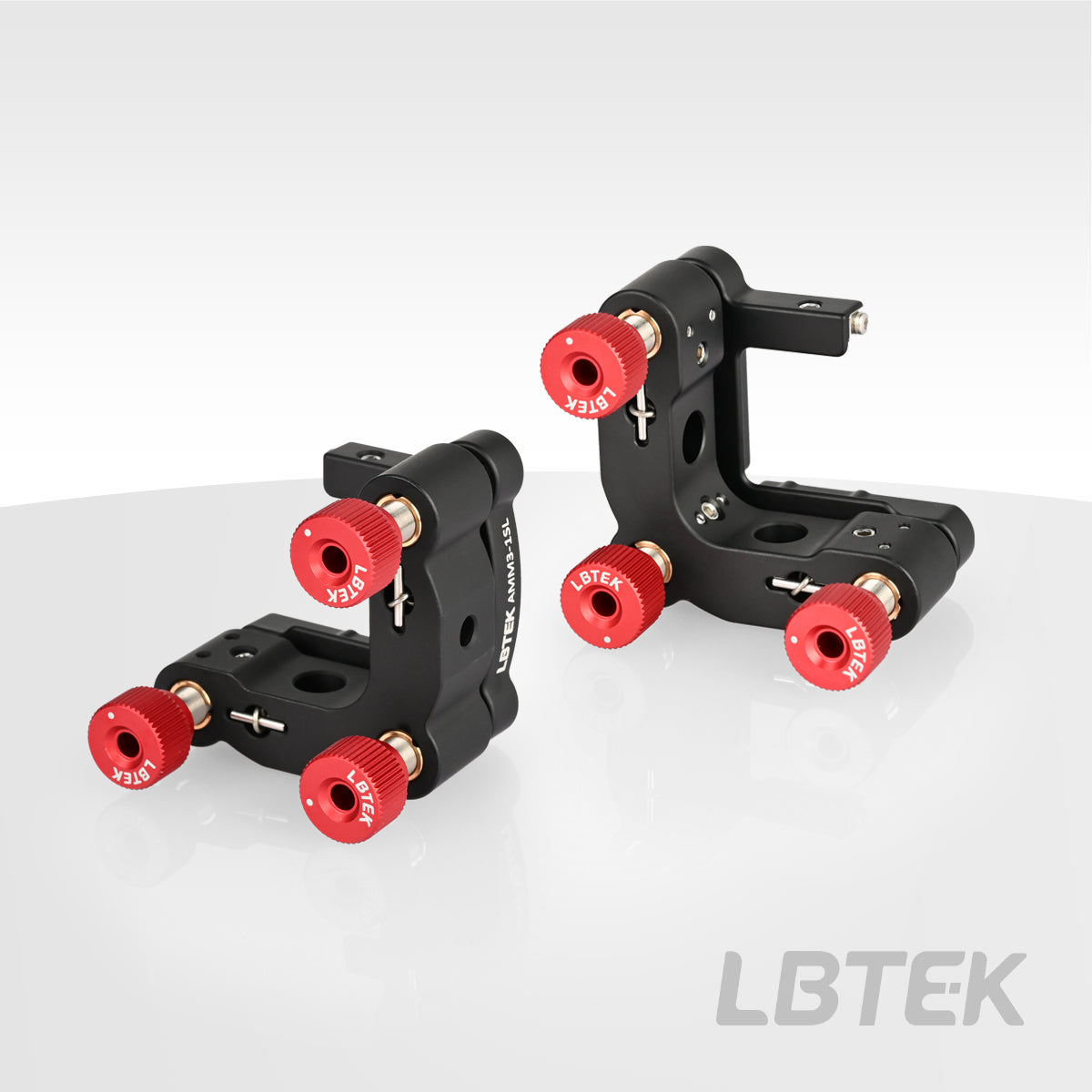

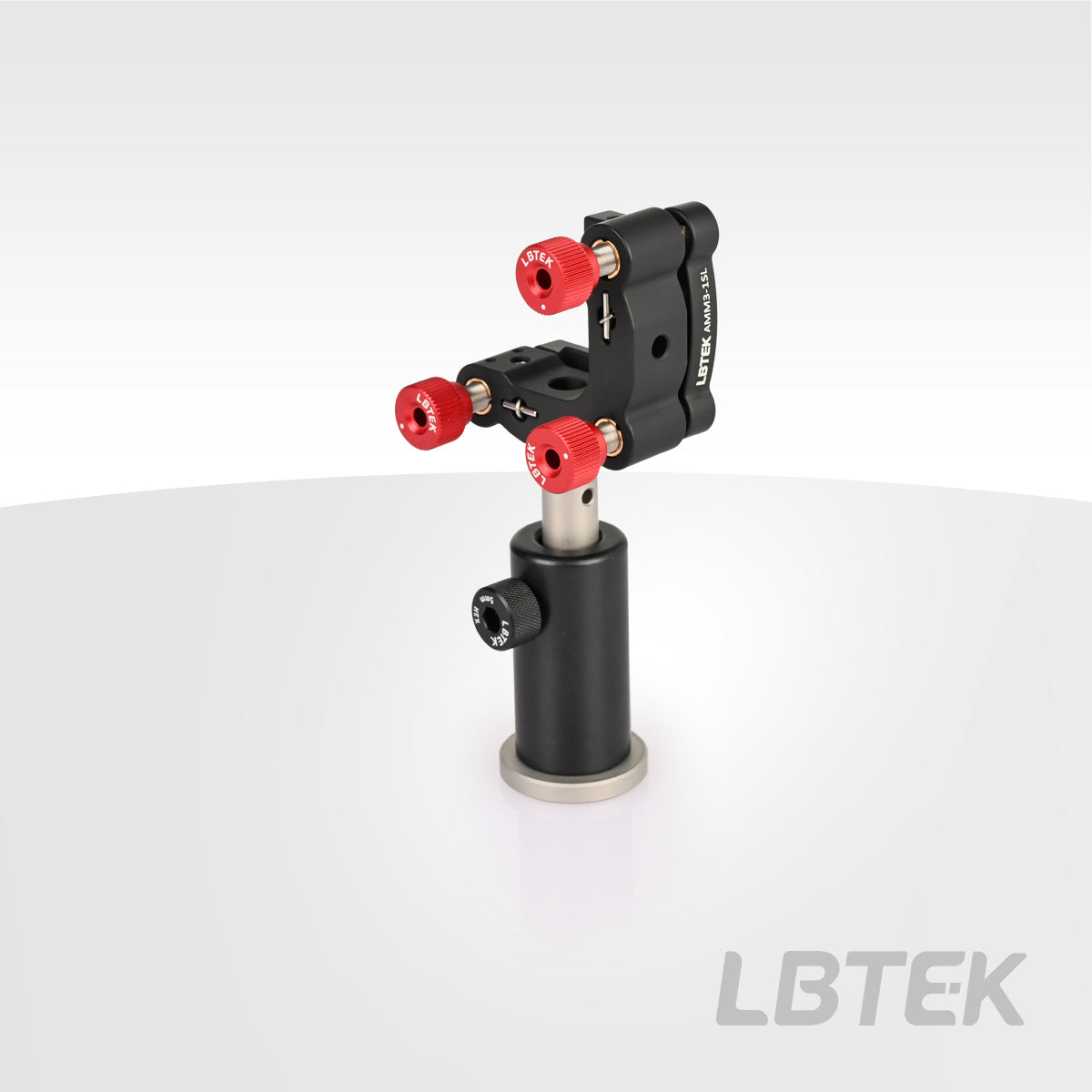

LBTEK Rectangular Optical Mounts are available in both two-dimensional and three-dimensional adjustment options, commonly used for mounting rectangular optical components with heights up to 30 mm, such as 0.5-inch and 1-inch sizes. They provide an angular adjustment range of ±4°, with M4 countersunk holes and Ø4.2 mm through holes at the bottom, enabling both left-handed and right-handed mounting. Compared to LBTEK's standard O-type two-dimensional optical mounts AMM-XX, these rectangular mounts feature a thicker backplate for enhanced stability. The angular adjustment is achieved through precision adjustment of threads pairs of M5×0.25 or M6×0.25.
