WaveQuanta

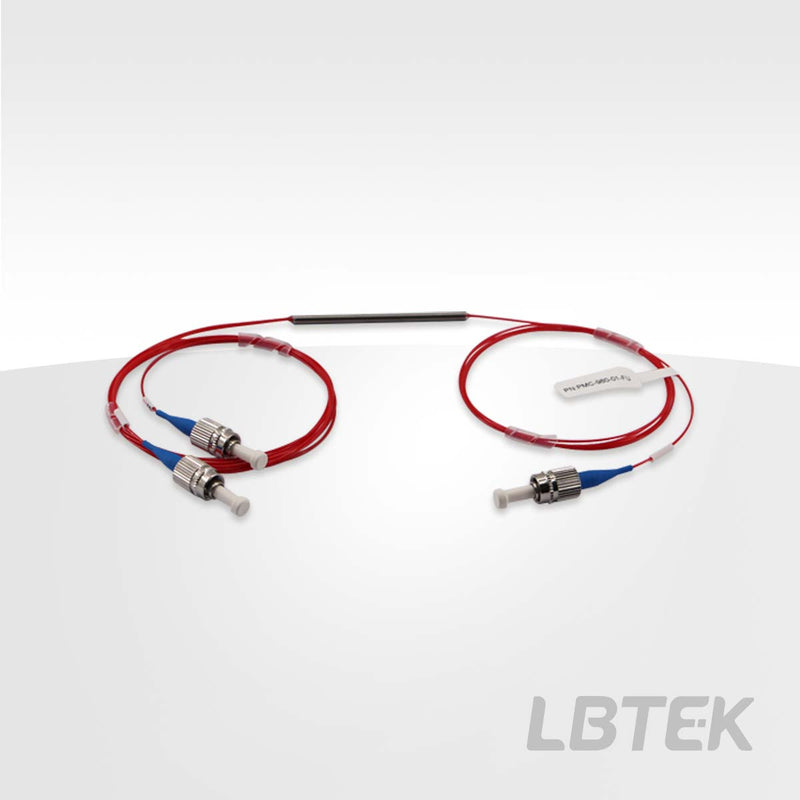

1×2 Polarization-Maintaining Fiber Optic Coupler PMC-2000-50-FA

PMC-2000-50-FA
$537.74
In Stock
Key Specifications
Wavelength 200020.0nm
Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

LBTEK polarization-maintaining fiber couplers are manufactured using panda-type polarization-maintaining fibers, capable of maintaining a high polarization extinction ratio when light is coupled along the slow axis of the fiber. Suitable for various polarization-maintaining optical systems, they distribute input light in a 50:50 ratio to the two output ports. The couplers feature uniform splitting, low additional loss, as well as high return loss and operational stability. Each LBTEK polarization-maintaining coupler undergoes rigorous testing before leaving the factory and comes with a test datasheet for customer reference.

  • Multiple Wavelengths Available within the Range of 405-2000 nm.
  • Split Ratio 50:50
  • FC/APC or FC/UPC Connector
  • Single-Ended Fiber 1 Meter
Specifications diagram
Operating Wavelength 2000±20 nm
Splitting ratio 50:50
Extinction ratio ≥ 18 dB
Connector Type FC/APC
Operating Temperature -40 ~ +85 °C
Fiber Type PM1950 900 µm Loose Hytrel® Tube
Fiber length 1 m
Storage Temperature -40 ~ +85 °C
Power Handling 2 W (with connector 300 mW)
Maximum Pulling Force 5 N
Insertion Loss ≤ 4.1 dB (Port 1) ≤ 4.1 dB (Port 2)
Return Loss ≥ 55 dB
Port Configuration 1×2
Package Dimensions Ø3.0 mm×60 mm
Insertion Loss (Typical) ≤ 0.4 dB
Insertion Loss (Max) ≤ 1 dB
No documents available for this product.
No CAD drawings available for this product.
