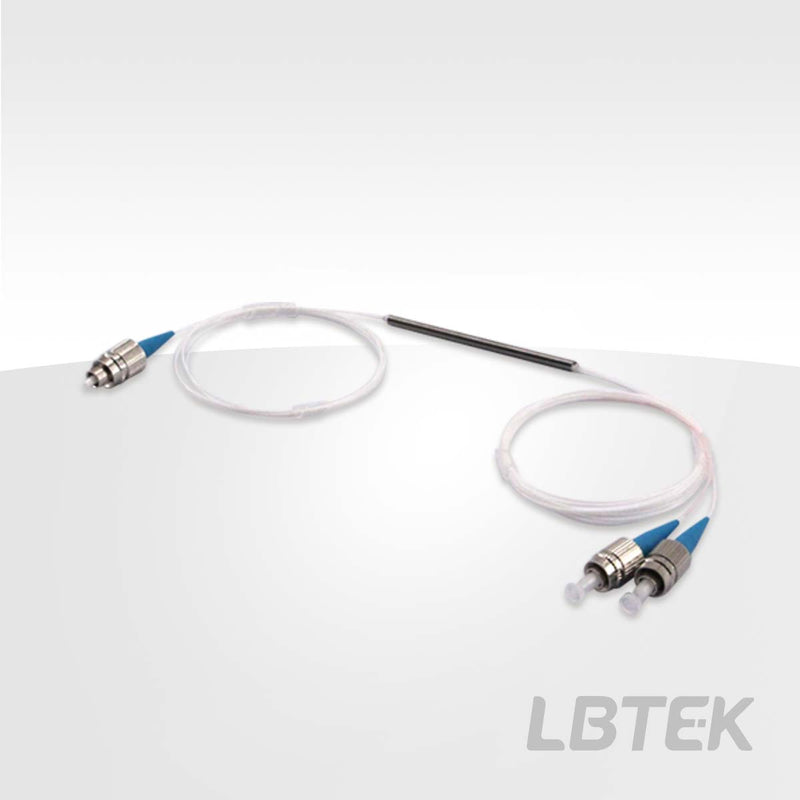

1×2 Single-Mode Fiber Optic Coupler SMC-2000-50-FU
SMC-2000-50-FU$466.34
In Stock
Key Specifications
Wavelength
200020.0nm
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The LBTEK 50:50 single-mode fiber coupler evenly splits the optical energy transmitted through one fiber into two output fibers with a 50:50 coupling ratio. It is primarily used in various applications such as light source beam splitting and fiber interferometers. The coupler features uniform splitting, low additional loss, high return loss, and operational stability. Each LBTEK coupler undergoes rigorous testing before leaving the factory and comes with a test datasheet for customer reference.
- Multiple Wavelengths Available within the Range of 405-2000 nm
- Split Ratio 50:50
- FC/APC or FC/UPC Connector
- Single-Ended Fiber 1 Meter
| Operating Wavelength | 2000±20 nm |
| Connector Type | FC/UPC |
| Operating Temperature | -40~+85 °C |
| Splitting ratio | 50:50 |
| Fiber Type | SM1950 900µm Loose Hytrel® Tube |
| Fiber length | 1 m |
| Storage Temperature | -40~+85 °C |
| Power Handling | 2 W (with connector 300 mW) |
| Maximum Pulling Force | 5 N |
| Polarization Dependent Loss (PDL) | ≤ 0.1 dB |
| Insertion Loss | ≤ 4.1 dB (Port 1) ≤ 4.1 dB (Port 2) |
| Return Loss | ≥ 55 dB |
| Port Configuration | 1×2 |
| Package Dimensions | Ø3.0 mm×60 mm |
| Insertion Loss (Typical) | ≤ 0.2 dB |
| Insertion Loss (Max) | ≤ 1.0 dB |
