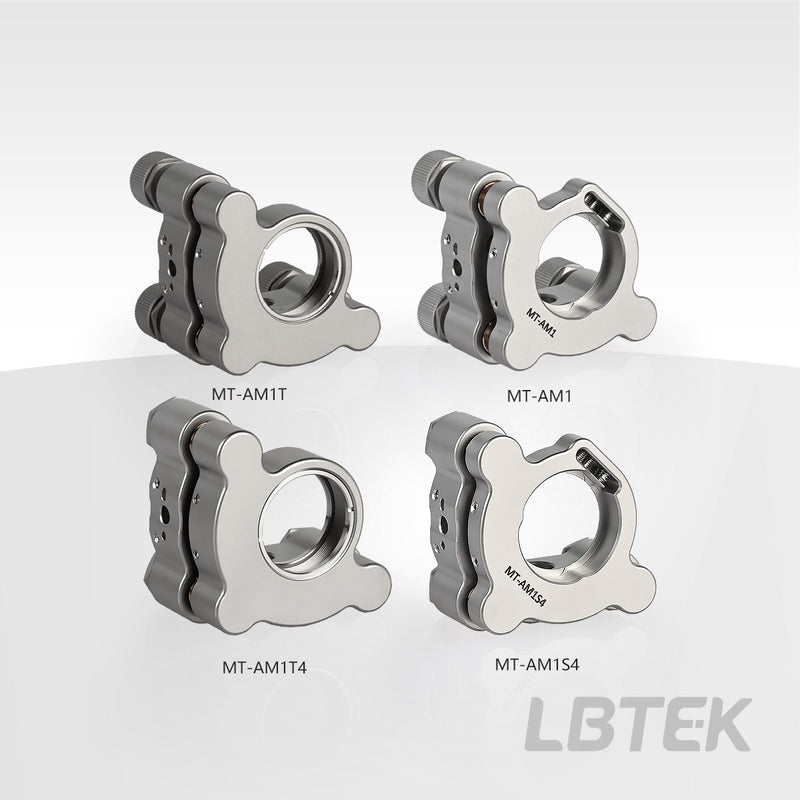

1-inch Stainless Steel Optical Mounts MT-AM1

LBTEK 1-inch Stainless Steel Mirror Mount for optical components with a diameter of 25.4 mm. Two low-deformation fixation methods for optical components are available: MT-AM1/MT-AM1S4 uses flexible spring pieces and set screws to secure the optical component, with a minimum thickness of 2 mm for the optical component; three M6×0.25 precision adjusters are used to adjust the pitch/yaw of the optical component, with options for versions with or without knobs. The knob version can be adjusted by hand or with a hex key, while the non-knob version requires a hex key. The optical adjustment mount features M4 countersunk mounting holes on the side. The MT-AM1Tx series employs retaining rings to directly fix the optical component, with two stainless steel retaining rings included with the purchase of the mount. The maximum thickness for optical components fixed with retaining rings is 8 mm. Each purchase includes two M4 thin-head hex screws and a 2.0 mm hex key.
