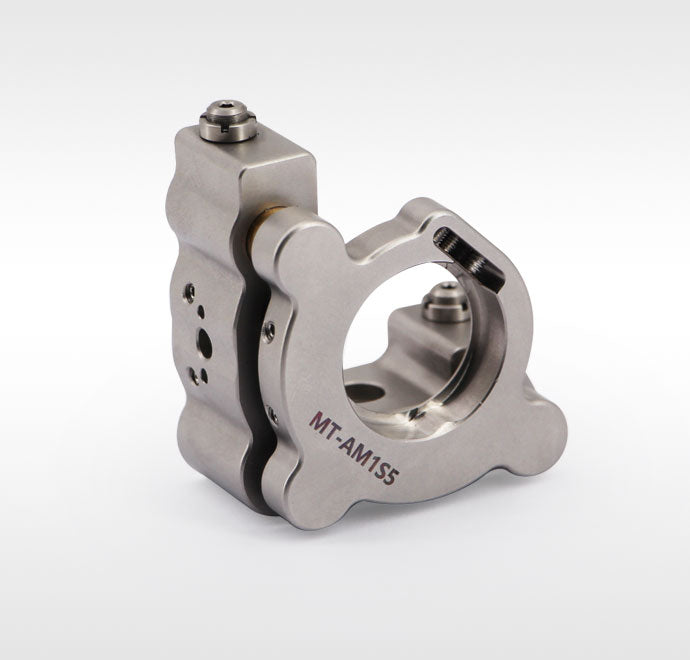

1-inch Stainless Steel Optical Mounts MT-AM1S5
MT-AM1S5$403.03
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The 1-inch Stainless Steel Optical Mounts MT-AM1S5 from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today
LBTEK 1-inch Stainless Steel Mirror Mount, with 2 lock rings and vertical actuator adjusters, is designed for mounting optical components with a diameter of 25.4 mm, suitable for situations where there is no space behind the mount to use horizontal adjusters. The optical component is secured using flexible spring pieces and set screws. The 2 M6Ć0.25 precision adjusters with lock rings (knobless) provide an angular adjustment range of Ā±4Ā° for the mount. The knobless adjusters are adjusted using a hex key. Additionally, the optical adjustment mount features M4 countersunk mounting holes on the side. The purchase includes 2 M4 thin-head hex screws and a 2.0 mm hex key.
Key Features
- For optical components with a diameter of 25.4 mm
- 2 precision adjusters with lock rings (knobless)
- Adjustable angle: Ā±4Ā°
- Adjustment precision: 0.4Ā°/rotation
- Optical component secured by flexible spring piece and set screw
Application
Stainless Steel Mirror Mounts can be used with stainless steel posts and non-bridging clamping arm.
| Lead Time | In Stock |
