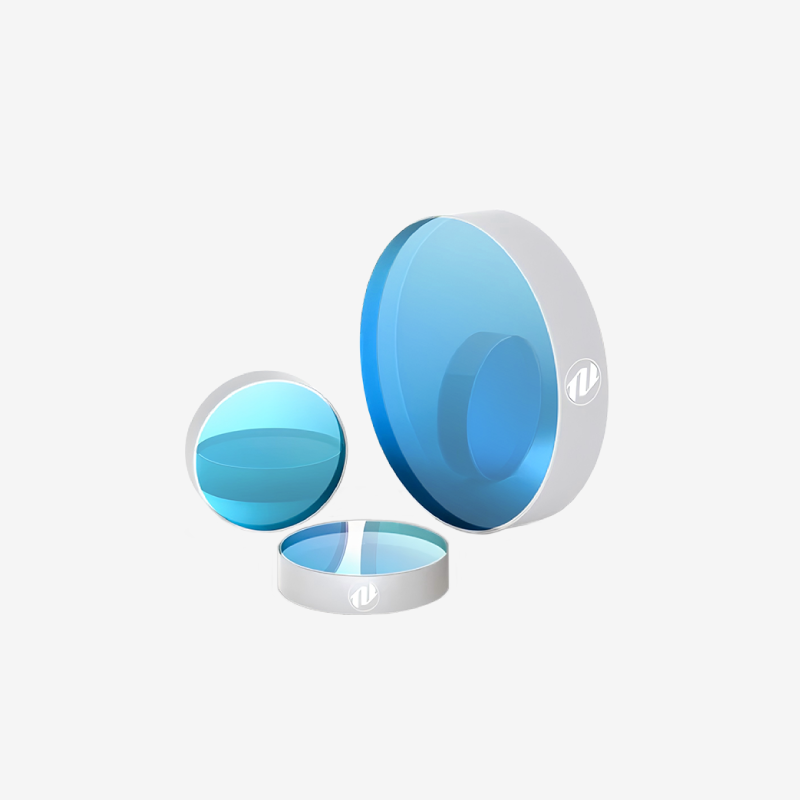

1030nm Flat Beam Splitter 45°
WaveQuanta

1030nm Flat Beam Splitter 45°

O-BS-25.4-2.0-BL222
$285.00
In Stock
Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening
View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics
RoHS REACH

Overview

The 1030nm Flat Beam Splitter 45° is a precision flat beam splitter from WaveQuanta, fabricated on a UVFS substrate.

It provides a 50:50 reflection-to-transmission split at a 45° angle of incidence across 1030 nm.

It is designed for beam sampling, power monitoring, and precision energy division in laser and ultrafast optical systems.

Applications

  • Beam sampling and power monitoring
  • Laser power and energy division
  • Pump–probe and interferometric configurations
  • Optical system alignment and diagnostics

Construction & Performance

  • Dimensions: 25.4 x 2.0 mm
  • Diameter: 25.4mm
  • Thickness: 2.0mm
  • Operating wavelength: 1030 nm
  • R/T ratio: 50:50
  • Angle of incidence: 45.0°
  • Substrate: UVFS
  • Coating: Dielectric Coating
  • Coating specification: S1:Rp=50%@1010-1050nm，Tp=50% / S2:Uncoated

Storage & Handling

Handle the optic by its edges using powder-free gloves. Store in a dry, dust-free environment away from direct sunlight. Clean only with optical-grade solvents and lens tissue when necessary.

SKU: O-BS-25.4-2.0-BL222

Substrate MaterialUVFS
Dimensions25.4 x 2.0 mm
Diameter25.4mm
Thickness2.0mm
Wavelength1030 nm
R/T Ratio50:50
Incident Angle45.0°
Coating TypeDielectric Coating
Coating SpecificationS1:Rp=50%@1010-1050nm，Tp=50% / S2:Uncoated
No documents available for this product.
No CAD drawings available for this product.
