What wavelength range does 1030nm Transmission Grating ≥99.0% support?

1030nm Transmission Grating ≥99.0% operates at a center wavelength of 1030.0 nm.

What are the physical dimensions of 1030nm Transmission Grating ≥99.0%?

1030nm Transmission Grating ≥99.0% dimensions: Length: 32.0 mm. Width: 15.0 mm. Height: 6.35 mm.

Is 1030nm Transmission Grating ≥99.0% available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

Gitterwerk

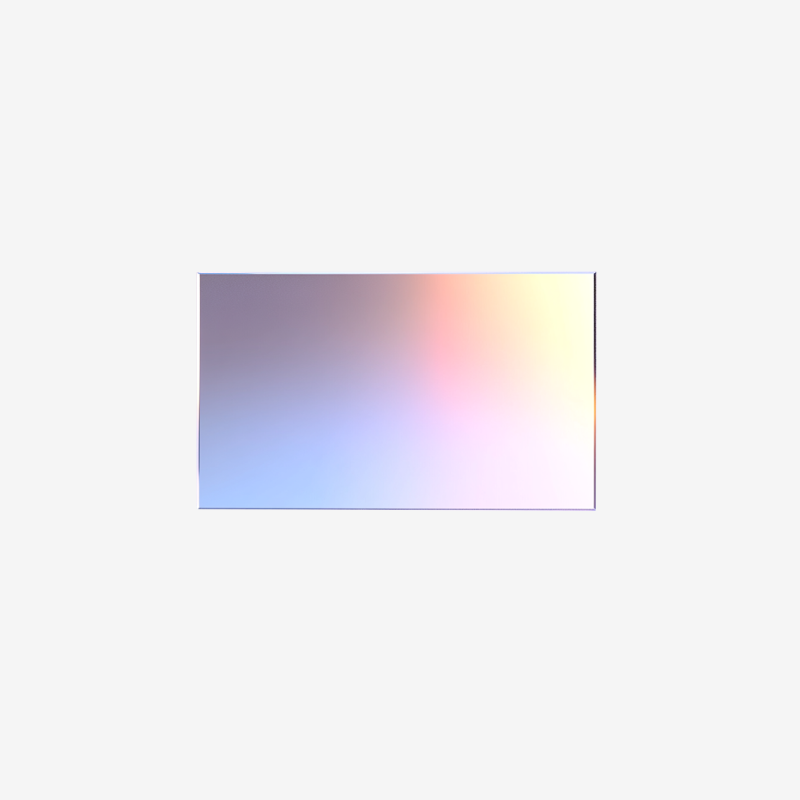

1030nm Transmission Grating ≥99.0%

Name: 1030nm Transmission Grating ≥99.0%
Brand: Gitterwerk
SKU: 1158_30x13_6.35_X
Price: 2155.74 SGD
Availability: InStock

1158_30x13_6.35_X

$2,155.74

In Stock

Key Specifications

Wavelength 1030.0nm

Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Grating Angle Calculator Compute diffraction angles and efficiency Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics

RoHS REACH

Overview

The 1030nm Transmission Grating ≥99.0% is a precision transmission grating from Gitterwerk, featuring a line density of 1000.00 l/mm.

It delivers ≥99.0% diffraction efficiency at 1030 nm for TE(s-pol) polarization.

It is designed for pulse compression, chirped pulse amplification (CPA), and spectral beam combining in high-power ultrafast laser systems.

Applications

Pulse compression and stretching
Chirped pulse amplification (CPA)
Spectral beam combining
Ultrafast and high-power laser systems

Construction & Performance

Dimensions: 32.0 x 15.0 x 6.35 mm
Length: 32.0 mm
Width: 15.0 mm
Height: 6.35 mm
Wavelength: 1030 nm
Grating period: 1000nm
Line density: 1000.00 l/mm
Diffraction efficiency: ≥99.0%
Clear aperture: 30.0 x 13.0mm
Polarization: TE(s-pol)

Storage & Handling

Handle the grating by its edges using powder-free gloves; never touch the grating surface. Store in a dry, dust-free environment away from direct sunlight. The grating surface is delicate — avoid contact and clean only per manufacturer guidance.

SKU: 1158_30x13_6.35_X

Dimensions	32.0 x 15.0 x 6.35mm mm
Length	32.0 mm
Width	15.0 mm
Height	6.35 mm
Wavelength	1030 nm
Grating Period	1000nm
Line Density	1000.00 l/mm
Diffraction Efficiency	≥99.0%%
Clear Aperture	30.0 x 13.0mm
Polarization	TE(s-pol)

No documents available for this product.

No CAD drawings available for this product.

Product Family: 1030nm Gratings (50 variants)

Product ▴▾	SKU	Dimensions ▴▾	Wavelength ▴▾	Line Density ▴▾
1030nm Transmission Grating ≥98.5%	`1708_63x65_6.35_H`	65.0 x 67.0 x 6.35mm mm	1030 nm	1751.30 l/mm	View
1030nm Transmission Grating ≥97%	`1594_28x24.4_3_L`	30.0 x 26.4 x 3.0mm mm	1030 nm	1000.00 l/mm	View
1030nm Transmission Grating ≥98.5%	`1516_63x31_6.35_H`	65.0 x 33.0 x 6.35mm mm	1030 nm	1379.30 l/mm	View
1030nm Transmission Grating ≥99%	`1516_48x28_6.35_X`	50.0 x 30.0 x 6.35mm mm	1030 nm	1379.30 l/mm	View
1030nm Transmission Grating ≥97.5%	`1366_38x33_3_N`	40.0 x 35.0 x 3.0mm mm	1030 nm	1739.10 l/mm	View
1030nm Transmission Grating ≥98.5%	`1366_38x33_3_H`	40.0 x 35.0 x 3.0mm mm	1030 nm	1739.10 l/mm	View
1030nm Transmission Grating ≥98.5%	`1366_14x23_3_H`	16.0 x 25.0 x 3.0mm mm	1030 nm	1739.10 l/mm	View
1030nm Transmission Grating ≥98.5%	`1357_98x18_6.35_H`	100.0 x20.0 x 6.35mm mm	1030 nm	1600.00 l/mm	View
1030nm Transmission Grating ≥99.0%	`1357_98x15.5_6.35_X`	100.0 x 17.5 x 6.35mm mm	1030 nm	1600.00 l/mm	View
1030nm Transmission Grating ≥97.5%	`1357_42x26_6.35_N`	44.0 x 28.0 x 6.35mm mm	1030 nm	1600.00 l/mm	View
1030nm Transmission Grating ≥99%	`1357_31x23_6.35_X`	33.0 x 25.0 x 6.35mm mm	1030 nm	1600.00 l/mm	View
1030nm Transmission Grating ≥97.5%	`1357_28x18_6.35_N`	30.0 x 20.0 x 6.35mm mm	1030 nm	1600.00 l/mm	View
1030nm Transmission Grating ≥99%	`1357_15x13_6.35_X`	17.0 x 15.0 x 6.35mm mm	1030 nm	1600.00 l/mm	View
1030nm Transmission Grating ≥99.0%	`1357_118x26_6.35_X`	120.0 x 28.0 x 6.35mm mm	1030 nm	1600.00 l/mm	View
1030nm Transmission Grating ≥99.0%	`1249_80x38_6.35_X`	82.0 x 40.0 x 6.35mm mm	1030 nm	1751.30 l/mm	View
1030nm Transmission Grating ≥98.5%	`1249_80x38_6.35_H`	82.0 x 40.0 x 6.35mm mm	1030 nm	1751.30 l/mm	View
1030nm Transmission Grating ≥97.5%	`1249_79x22_6.35_N`	81.0 x 24.0 x 6.35mm mm	1030 nm	1751.30 l/mm	View
1030nm Transmission Grating ≥98.5%	`1249_50x40_3_H`	52.0 x 42.0 x 3.0mm mm	1030 nm	1751.30 l/mm	View
1030nm Transmission Grating ≥99%	`1249_30x30_6.35_X`	32.0 x 32.0 x 6.35mm mm	1030 nm	1751.30 l/mm	View
1030nm Transmission Grating ≥98.5%	`1158_48x48_3_H`	50.0 x 50.0 x 3.0mm mm	1030 nm	1000.00 l/mm	View
1030nm Transmission Grating ≥99%	`1158_42x28_6.35_X`	44.0 x 30.0 x 6.35mm mm	1030 nm	1000.00 l/mm	View
1030nm Transmission Grating ≥99.0% Current	`1158_30x13_6.35_X`	32.0 x 15.0 x 6.35mm mm	1030 nm	1000.00 l/mm
1030nm Transmission Grating ≥98.5%	`1158_28x24.4_3_H`	30.0 x 26.4 x 3.0mm mm	1030 nm	1000.00 l/mm	View
1030nm Transmission Grating ≥97.5%	`1158_28x18_3_N`	30.0 x 20.0 x 3.0mm mm	1030 nm	1000.00 l/mm	View
1030nm Transmission Grating ≥99%	`1158_18x11_6.35_X`	20.0 x 13.0 x 6.35mm mm	1030 nm	1000.00 l/mm	View
1030nm Transmission Grating ≥99.0%	`1158_15x13_6.35_X`	17.0 x 15.0 x 6.35mm mm	1030 nm	1000.00 l/mm	View
1030nm Transmission Grating ≥98.5%	`1158_15x13_6.35_H`	17.0 x 15.0 x 6.35mm mm	1030 nm	1000.00 l/mm	View
1030nm Transmission Grating ≥99.0%	`1158_12x8_6.35_X`	14.0 x 10.0 x 6.35mm mm	1030 nm	1000.00 l/mm	View
1030nm Transmission Grating ≥98.5%	`1125_74x10_6.35_H`	76.0 x 12.0 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥99.0%	`1125_70x18_6.35_X`	72.0 x 20.0 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥97.5%	`1125_70x18_6.35_N`	72.0 x 20.0 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥99.0%	`1125_51x51_6.35_X`	53.0 x 53.0 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥99.0%	`1125_31x24_6.35_X`	33.0 x 26.0 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥99%	`1125_31x13.8_6.35_X`	33.0 x 15.8 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥97.5%	`1125_31x13.8_6.35_N`	33.0 x 15.8 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥98.5%	`1125_31x13.8_6.35_H`	33.0 x 15.8 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥98.5%	`1125_30x30_6.35_H`	32.0 x 32.0 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥99.0%	`1125_135x26_6.35_X`	137.0 x 28.0 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥99.0%	`1125_123x36_6.35_X`	125.0 x 38.0 x 6.35mm mm	1030 nm	1700.70 l/mm	View
1030nm Transmission Grating ≥97.4%	`1072_70x11_6.35_L`	72.0 x 13.0 x 6.35mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥97.5%	`1072_70x10_3_N`	72.0 x 12.0 x 3.0mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥98.5%	`1072_70x10_3_H`	72.0 x 12.0 x 3.0mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥97.3%	`1072_55x17_6.35_L`	57.0 x 19.0 x 6.35mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥98.5%	`1072_55x17_6.35_H`	57.0 x 19.0 x 6.35mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥98.5%	`1072_48x48_6.35_H`	50.0 x 50.0 x 6.35mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥99%	`1072_44x22_6.35_X`	46.0 x 24.0 x 6.35mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥98.5%	`1072_44x22_6.35_H`	46.0 x 24.0 x 6.35mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥97.5%	`1072_33x18_6.35_N`	35.0 x 20.0 x 6.35mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥99%	`1072_22.5x22.5_6.35_X`	24.5 x 24.5 x 6.35mm mm	1030 nm	1841.60 l/mm	View
1030nm Transmission Grating ≥98.5%	`1072_22.5x22.5_6.35_H`	24.5 x 24.5 x 6.35mm mm	1030 nm	1841.60 l/mm	View
