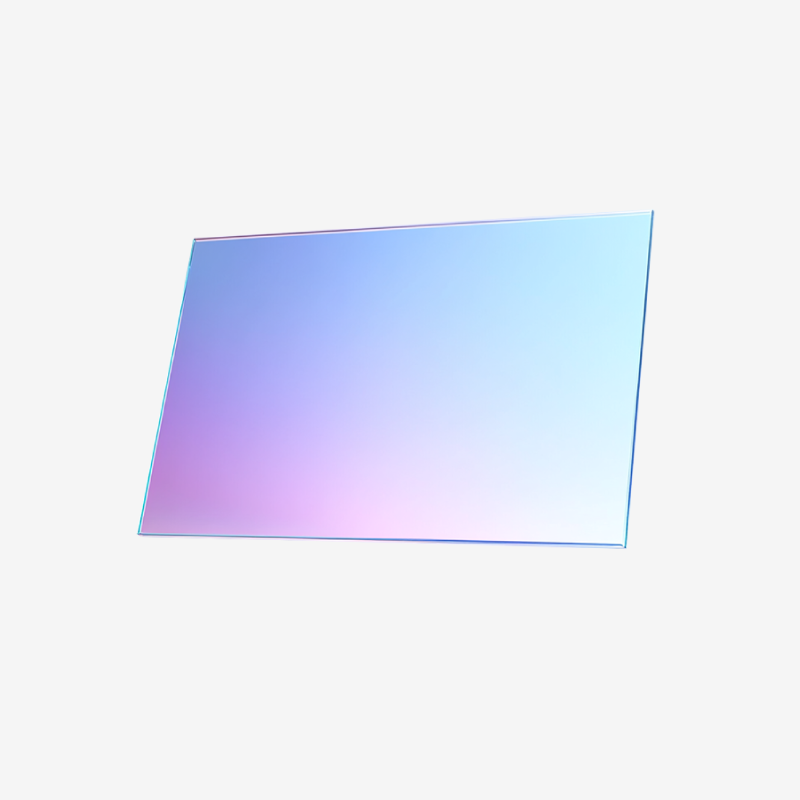

1560nm Transmission Grating ≥98.5%

Name: 1560nm Transmission Grating ≥98.5%
Brand: Gitterwerk
SKU: 1466_63x10_3_H
Price: 3209.67 SGD
Availability: InStock

1466_63x10_3_H

$3,209.67

In Stock

Key Specifications

Wavelength 1560.0nm

Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening Grating Angle Calculator Compute diffraction angles and efficiency Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Mirrors Nonlinear Crystals Optomechanics

RoHS REACH

Overview

The 1560nm Transmission Grating ≥98.5% is a precision transmission grating from Gitterwerk, featuring a line density of 1000.00 l/mm.

It delivers ≥98.5 diffraction efficiency at 1560 nm for TE(s-pol) polarization.

It is designed for pulse compression, chirped pulse amplification (CPA), and spectral beam combining in high-power ultrafast laser systems.

Applications

Pulse compression and stretching
Chirped pulse amplification (CPA)
Spectral beam combining
Ultrafast and high-power laser systems

Construction & Performance

Dimensions: 65.0 x 12.0 x 3.0 mm
Length: 65.0 mm
Width: 12.0 mm
Height: 3.0 mm
Wavelength: 1560 nm
Grating period: 1000nm
Line density: 1000.00 l/mm
Diffraction efficiency: ≥98.5
Clear aperture: 63.0 x 10.0mm
Polarization: TE(s-pol)

Storage & Handling

Handle the grating by its edges using powder-free gloves; never touch the grating surface. Store in a dry, dust-free environment away from direct sunlight. The grating surface is delicate — avoid contact and clean only per manufacturer guidance.

SKU: 1466_63x10_3_H

Dimensions	65.0 x 12.0 x 3.0mm
Length	65.0 mm
Width	12.0 mm
Height	3.0 mm
Wavelength	1560 nm
Grating Period	1000nm
Line Density	1000.00 l/mm
Diffraction Efficiency	≥98.5%
Clear Aperture	63.0 x 10.0mm
Polarization	TE(s-pol)

No documents available for this product.

No CAD drawings available for this product.

Product Family: 1120-2100nm Gratings (45 variants)

Product ▴▾	SKU	Dimensions ▴▾	Wavelength ▴▾	Line Density ▴▾
1039nm Transmission Grating ≥99.0%	`1893_28x17_6.35_X`	30.0 x 19.0 x 6.35mm	1039 nm	1310.00 l/mm	View
1980nm Transmission Grating ≥97.5%	`2238_108x13.8_6.35_N`	110.0 x 15.8 x 6.35mm	1980 nm	909.10 l/mm	View
2050nm Transmission Grating ≥97.5%	`2126_131x30_3_N`	133.0 x 32.0 x 3.0mm	2050 nm	909.10 l/mm	View
2050nm Transmission Grating ≥97.5%	`2126_63x18_3_N`	65.0 x 20.0 x 3.0mm	2050 nm	909.10 l/mm	View
2050nm Transmission Grating ≥97.5%	`2126_30x30_3_N`	32.0 x 32.0 x 3.0mm	2050 nm	909.10 l/mm	View
2050nm Transmission Grating ≥97.5%	`2126_28x23_3_N`	30.0 x 25.0 x 3.0mm	2050 nm	909.10 l/mm	View
2050nm Transmission Grating ≥97.5%	`2126_28x18_3_N`	30.0 x 20.0 x 3.0mm	2050 nm	909.10 l/mm	View
2100nm Transmission Grating ≥97.5%	`2059_98x13_6.35_N`	100.0 x 15.0 x 6.35mm	2100 nm	800.00 l/mm	View
2100nm Transmission Grating ≥97.5%	`2059_63x18_6.35_N`	65.0 x 20.0 x 6.35mm	2100 nm	800.00 l/mm	View
2100nm Transmission Grating ≥97.5%	`2059_39x28_6.35_N`	41.0 x 30.0 x 6.35mm	2100 nm	800.00 l/mm	View
2090nm Transmission Grating ≥97.5%	`2059_28x18_6.35_N`	30.0 x 20.0 x 6.35mm	2090 nm	800.00 l/mm	View
2050nm Transmission Grating ≥97.5%	`1997_14x22.5_3_N`	16.0 x 24.5 x 3.0mm	2050 nm	800.00 l/mm	View
1975nm Transmission Grating ≥90.0%	`1921_39x23_3_L`	41.0 x 25.0 x 3.0mm	1975 nm	600.20 l/mm	View
1975nm Transmission Grating ≥90.5%	`1921_28x18_3_L`	30.0 x 20.0 x 3.0mm	1975 nm	600.20 l/mm	View
1550nm Transmission Grating ≥98.5%	`1723_37x9.9_3_H`	39.0 x 11.9 x 3.0mm	1550 nm	800.00 l/mm	View
1560nm Transmission Grating ≥98.5% Current	`1466_63x10_3_H`	65.0 x 12.0 x 3.0mm	1560 nm	1000.00 l/mm
1840nm Transmission Grating ≥98.5%	`1365_98x18_3_H`	100.0 x 20.0 x 3.0mm	1840 nm	800.00 l/mm	View
1840nm Transmission Grating ≥97.5%	`1365_98x18_3_N`	100.0 x 20.0 x 3.0mm	1840 nm	800.00 l/mm	View
1980nm Transmission Grating ≥97.5%	`1364_63x18_6.35_N`	65.0 x 20.0 x 6.35mm	1980 nm	800.00 l/mm	View
1980nm Transmission Grating ≥97.5%	`1364_28x18_6.35_N`	30.0 x 20.0 x 6.35mm	1980 nm	800.00 l/mm	View
1550nm Transmission Grating ≥93.0%	`1201_53x23_3_L`	55.0 x 25.0 x 3.0mm	1550 nm	600.20 l/mm	View
1420nm Transmission Grating ≥97.5%	`2244_28x18_6.35_N`	30.0 x 20.0 x 6.35mm	1420 nm	800.00 l/mm	View
2100nm Transmission Grating ≥97.5%	`2109_15x13_3_N`	17.0 x 15.0 x 3.0mm	2100 nm	600.20 l/mm	View
1550nm Transmission Grating ≥98.5%	`1723_28x18_3_H`	30.0 x 20.0 x 3.0mm	1550 nm	800.00 l/mm	View
1550nm Transmission Grating ≥97.5%	`1535_30x13_6.35_N`	32.0 x 15.0 x 6.35mm	1550 nm	1200.50 l/mm	View
1560nm Transmission Grating ≥99.0%	`1466_28x18_3_X`	30.0 x 20.0 x 3.0mm	1560 nm	1000.00 l/mm	View
1560nm Transmission Grating ≥98.5%	`1466_28x18_3_H`	30.0 x 20.0 x 3.0mm	1560 nm	1000.00 l/mm	View
1560nm Transmission Grating ≥97.5%	`1466_28x18_3_N`	30.0 x 20.0 x 3.0mm	1560 nm	1000.00 l/mm	View
1560nm Transmission Grating ≥97.0%	`1466_26x8_3_N`	28.0 x 10.0 x 3.0mm	1560 nm	1000.00 l/mm	View
1560nm Transmission Grating ≥98.5%	`1466_25x10.9_3_H`	27.0 x 12.9 x 6.35mm	1560 nm	1000.00 l/mm	View
1560nm Transmission Grating ≥97.5%	`1466_25x10.9_3_N`	27.0 x 12.9 x 6.35mm	1560 nm	1000.00 l/mm	View
1840nm Transmission Grating ≥97.5%	`1365_28.8x12_3_N`	30.8 x 14.0 x 3.0mm	1840 nm	800.00 l/mm	View
1840nm Transmission Grating ≥97.5%	`1365_26x8_3_N`	28.0 x 10.0 x 3.0mm	1840 nm	800.00 l/mm	View
1550nm Transmission Grating ≥97.5%	`1723_37x9.9_3_N`	39.0 x 11.9 x 3.0mm	1550 nm	800.00 l/mm	View
1550nm Transmission Grating ≥98.5%	`1723_18x12_3_H`	20.0 x 14.0 x 3.0mm	1550 nm	800.00 l/mm	View
1550nm Transmission Grating ≥97.5%	`1723_18x12_3_N`	20.0 x 14.0 x 3.0mm	1550 nm	800.00 l/mm	View
1550nm Transmission Grating ≥98.5%	`1723_12x9.9_3_H`	14.0 x 11.9 x 3.0mm	1550 nm	800.00 l/mm	View
1550nm Transmission Grating ≥98.5%	`1535_15x13_6.35_H`	17.0 x 15.0 x 6.35mm	1550 nm	1200.50 l/mm	View
1550nm Transmission Grating ≥97.5%	`1535_15x13_6.35_N`	17.0 x 15.0 x 6.35mm	1550 nm	1200.50 l/mm	View
1430nm Transmission Grating ≥97.5%	`1726_28x23_3_N`	30.0 x 25.0 x 3.0mm	1430 nm	1200.50 l/mm	View
1420nm Transmission Grating ≥97.5%	`2245_22x70_6.35_N`	72.0 x 24.0 x 6.35mm	1420 nm	800.00 l/mm	View
1420nm Transmission Grating ≥97.5%	`2244_39x28_6.35_N`	41.0 x 30.0 x 6.35mm	1420 nm	800.00 l/mm	View
1190nm Transmission Grating ≥98.5%	`1419_18x12_3_H`	20.0 x 14.0 x 3.0mm	1190 nm	1379.30 l/mm	View
1190nm Transmission Grating ≥97.5%	`1419_18x12_3_N`	20.0 x 14.0 x 3.0mm	1190 nm	1379.30 l/mm	View
1120nm Transmission Grating ≥98.5%	`1582_122x11_6.35_H`	124.0 x 13.0 x 6.35mm	1120 nm	1600.00 l/mm	View
