MR Photonics
1570 nm single-mode fiber-coupled laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The 1570 nm single-wavelength laser uses a high-performance butterfly-shaped semiconductor laser chip. The professionally designed driving and temperature control circuit control ensures the safe operation of the laser and stable output power and spectrum. Suitable as a pump laser source for thulium-doped fiber lasers or fiber amplifiers, and can be provided in benchtop or modular packaging.
| Models | Specification |
|---|---|

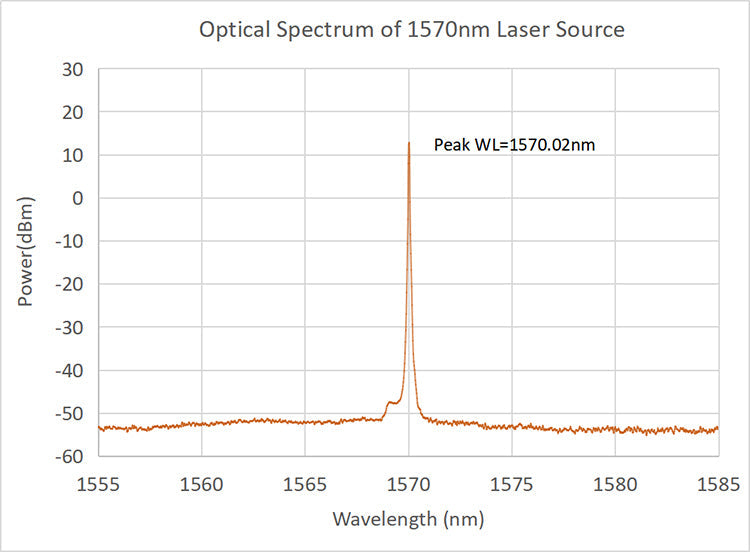

| Operating wavelength (nm) | 1570±1 |
| Spectral linewidth (nm) | < 0.1 |
| Side mode rejection ratio (dB) | >50 |
| Working mode | CW |
| Output power (mW) | 10/20/50/100/ 200/400/500 |
| DBm (30/33/35/37/40) | High power models |
| Short-term stability (15 minutes) (dB) | ≤ ±0.02 |
| Long-term stability (8 hours) (dB) | ≤ ±0.05 |
| Polarization state | linear polarization |
| Pigtail Types | PM1550 |
| Pigtail joint type | FC/APC (Slow axis alignment) |
working mode: continuous light
Output power: Low power models
short-term stability (15 minutes): equivalent ≤±0.5%
long-term stability (8 hours): equivalent ≤±1.2%
pigtail joint type: * Connectors are used for power testing
Source: MR Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
