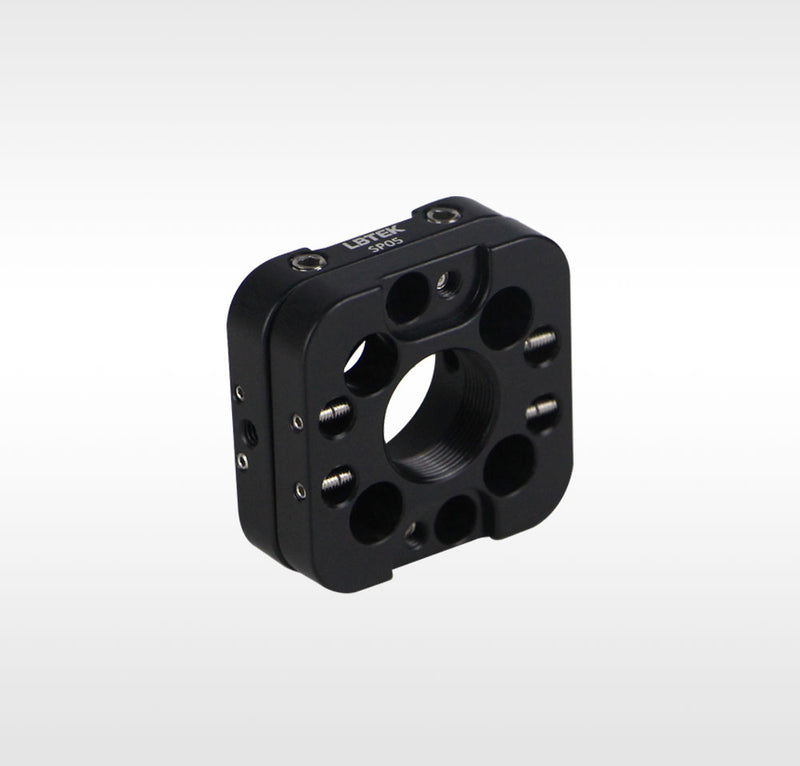

16 mm coaxial removable mounting plate SP05

The LBTEK 16 mm coaxial sliding coaxial plate is used to provide coarse X/Y-axis positioning for optical components in a 16 mm coaxial system. It consists of a fixed plate and a movable plate. The movable plate features an SM05 threaded hole at its center, allowing the installation of Ø12.7 mm optical components using two retaining rings (the SM05R retaining ring must be purchased separately) or the extension of optomechanical components with SM05 external threads, such as lens tubes. The maximum thickness of the optical component is 2.5 mm. The movable plate slides along the surface of the fixed plate to provide X/Y-axis adjustment, which is manually operated only. When used with the CT-05 alignment plate, concentricity can be adjusted. For operation, loosen the two M3 pan-head screws with a 2.0 mm hex wrench, manually adjust the movable plate to the desired position, and then tighten the screws to lock it in place. The side of the plate includes an M3 threaded hole for securing coaxial posts.
