16mm Coaxial System Rotary Adjustment Mount — Model CRM-05AS
✔ In Stock — Ships Today

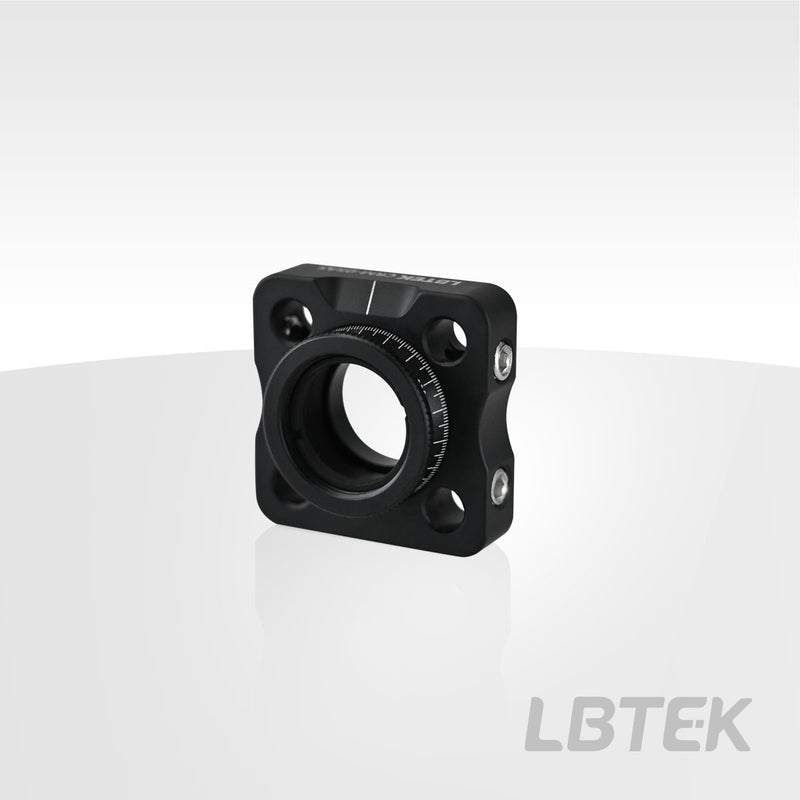

LBTEK 16 mm coaxial system rotation mount, with SM05 internal thread at the center, includes 1 SM05R retaining ring, capable of securing optical components up to Ø12.7 mm with a maximum thickness of 6 mm, and can also be used to mount optical components with SM05 external threads. The mount provides continuous 360° rotation with 2° scale accuracy, featuring angle markings every 40°, and includes an M4 rubber-tipped locking screw (2 mm hex wrench) on the side for rotation locking. Equipped with 4 Ø4 mm through holes, it can be mounted to a 16 mm coaxial system via side M4 set screws. The bottom M3 threaded hole allows connection to mounting rods for free-space applications.
Key Features
- Graduation marks of 2° with angle numbers every 40°
- Optical component secured by retaining ring, includes one SM05R retaining ring
- Used for mountingØ12.7 mm optics up to 6 mm thick
- Compatible with 16 mm coaxial systems and free-space mounting
Application
Snap ring secures optical components
| Clear Aperture | 11.4 mm |
