WaveQuanta

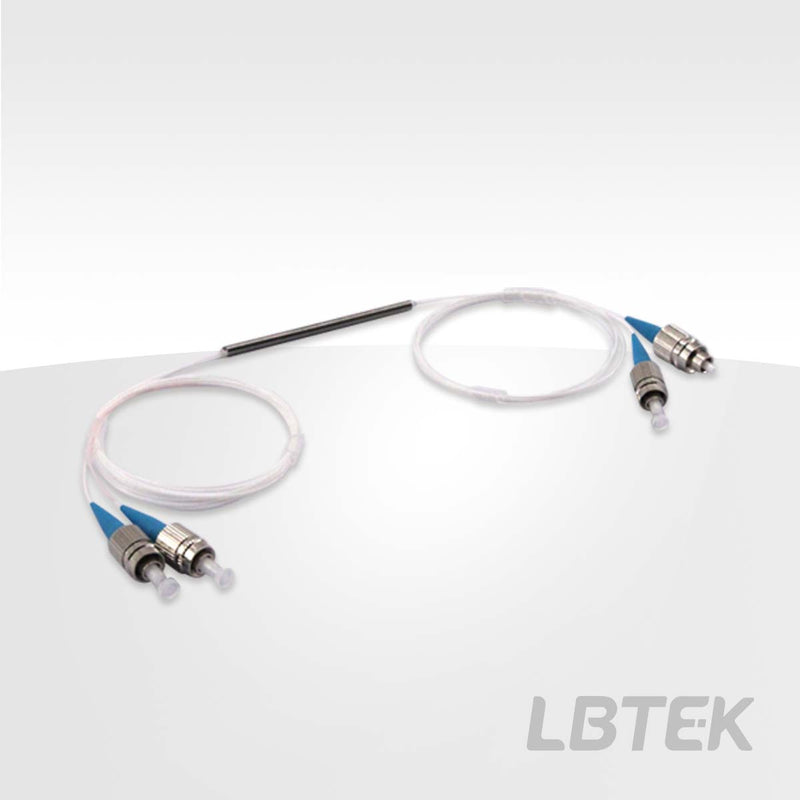

2×2 Single-Mode Fiber Optic Coupler 2×2SMC-915-50-FA

2×2SMC-915-50-FA
$239.87
In Stock
Key Specifications
Wavelength 91510.0nm
Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

The LBTEK 50:50 single-mode fiber coupler can split the optical energy transmitted through two fibers into two output fibers with a 50:50 coupling ratio. It is primarily used for optical path monitoring in optical systems, where a small portion of light is extracted and its optical parameters are verified to monitor the quality of the main optical path beam. The coupler features precise splitting ratio, low additional loss, high return loss, and operational stability. Each LBTEK coupler undergoes rigorous testing before leaving the factory and comes with a test datasheet for reference.

  • Multiple Wavelengths Available within the Range of 405-2000 nm
  • Split Ratio 50:50
  • FC/APC or FC/UPC Connector
  • Single-Ended Fiber 1 Meter
Specifications diagram
Operating Wavelength 915±10 nm
Connector Type FC/APC
Operating Temperature -40~+85 °C
Splitting ratio 50:50
Fiber Type 780-HP 900µm Loose Hytrel® Tube
Fiber length 1 m
Storage Temperature -40~+85 °C
Power Handling 1000 mW (300 mW with connector)
Maximum Pulling Force 5 N
Polarization Dependent Loss (PDL) ≤ 0.2 dB
Insertion Loss ≤ 3.9 dB (Port 1) ≤ 3.9 dB (Port 2)
Return Loss ≥ 55 dB
Port Configuration 2×2
Package Dimensions Ø3.0 mm×60 mm
Insertion Loss (Typical) ≤ 0.3 dB
Specification Sheet PDF — Download
No CAD drawings available for this product.
