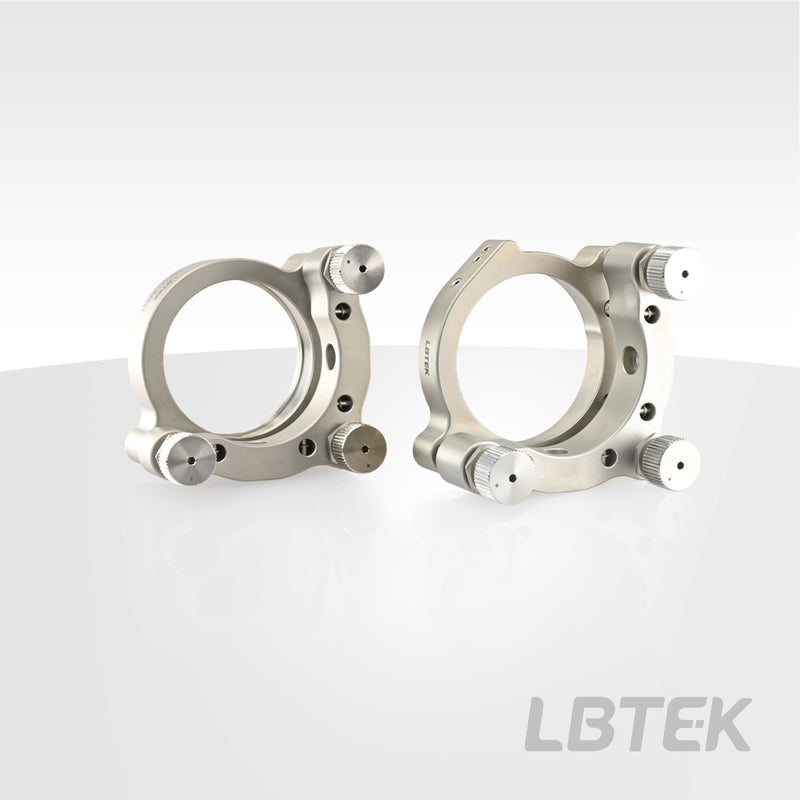

2-inch vacuum-compatible stainless steel optical mount VSS-MT-AM2

LBTEK 2-inch Vacuum Stainless Steel Lens Mount, compatible with Ø50.8 mm optical components. Two low-deformation mounting options available: VSS-MT-AM2 uses flexible spring plates and set screws for fixation, with a minimum optical component thickness of 4 mm; VSS-MT-AM2T employs a retaining ring for direct fixation, and one stainless steel retaining ring is included with the mount purchase. The maximum thickness for ring-fixed optical components should not exceed 12 mm. Features three M6×0.25 precision adjusters with knobs, allowing adjustment of optical component pitch and yaw via hex key or knobs. The optical mount has M4 countersunk mounting holes on the side. Purchase of LBTEK stainless steel lens mount includes vacuum hex screws (with vent holes) and a hex key.
