2000-5000nm Chirped Mirror -250fs²
PC1741-25.4-6.35$697.00
In Stock
Key Specifications
Wavelength
2200.0nm
Diameter
25.4mm
LIDT
0.2J/cm²
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Gaussian Beam Calculator
Model beam propagation through your optical system
LIDT Calculator
Verify damage threshold for your laser parameters
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Overview
The 2000-5000nm Chirped Mirror -250fs² is a dielectric chirped mirror engineered for dispersion management in mid-infrared (MWIR) ultrafast laser systems. Reflectance band 1700–2700 nm centered near 2200 nm. Group delay dispersion of -250 fs² per bounce serves as a compressor for Cr:ZnSe / Cr:ZnS, OPO / OPA, Tm:fiber / Ho:fiber, and Ho:YAG / Er:YAG architectures that demand sub-100 fs control at telecom-extended and mid-IR wavelengths.
Applications
- Tm:fiber / Ho:fiber CPA stretcher-compressor matching
- 2.2 µm OPCPA dispersion engineering (-250 fs²/bounce)
- Mid-IR ultrafast amplifier dispersion management
- Sub-100 fs 2 µm pulse compression
Construction & Performance
- Substrate: UVFS, 25.4 mm × 6.35 mm
- Coating: Dielectric Coating, R>99.2%@1700-2700nm
- Angle of incidence: 0°
- Polarization: P
- Damage threshold: 0.2 J/cm² @ 800 nm reference (fs pulses)
Storage & Handling
Store in low-humidity dry cabinet with optical-grade lens tissue protection. Handle by the edges only — coating surface contact will degrade reflectance and damage threshold. Clean with high-purity acetone or methanol using the drop-and-drag technique; never wipe across the coated face. Avoid extreme temperature gradients that can cause stress birefringence in the substrate.
| Center Wavelength | 2200.0 nm |
| Wavelength Range | 1700.0 – 2700.0 nm |
| Polarization | P |
| Damage Threshold | 0.2 J/cm² (@800nm) |
| Diameter | 25.4 mm |
| Thickness | 6.35 mm |
| Substrate Material | UVFS |
| Coating Type | Dielectric Coating |
| Coating Wavelength | R>99.2%@1700-2700nm |
| Group Delay Dispersion | -250.0 fs² |
| Incidence Angle | 0.0° |
Low damage threshold detected (0.2 J/cm²).
For high-power applications, consider
WaveQuanta premium IBS-coated optics
with enhanced damage resistance.
No documents available for this product.
No CAD drawings available for this product.
PC1741-25.4-6.35 — Reflectance & GDD spectral curve (UFI PC1741)

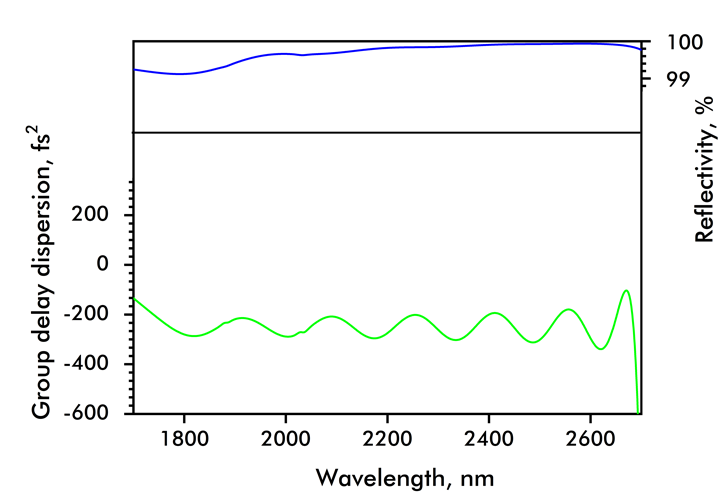

2000-5000nm Chirped Mirror -250fs² PC1741-25.4-6.35 — curve
