2D Adjustable Cylindrical Lens Mounts AMR-1R
AMR-1R$127.00
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
2D Adjustable Cylindrical Lens Mounts — Model AMR-1R
✔ In Stock — Ships Today

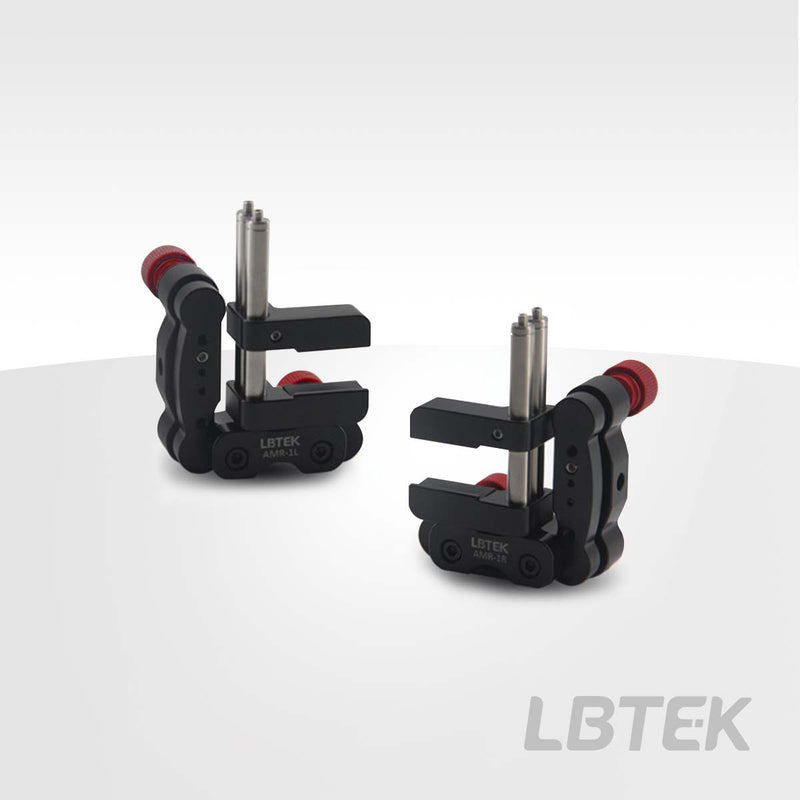

The LBTEK 2D Adjustable Cylindrical Lens Mount is available in both left-handed and right-handed configurations, each standardly equipped with two adjusters for the pitch and yaw angles of the cylindrical lens. Each mount consists of two clamping arms with rubber pads. The upper arm can slide along the post and is secured with a locking screw. For mounting taller optical components, the original coaxial post can be extended by attaching a Ø6 mm coaxial system mounting post. Included M4 x 10 screws facilitate connection to standard posts.
Key Features
- Equipped with two adjusters, adjustable pitch angle range ±4°
- M4 countersunk holes can connect with standard optical posts
- Maximum clamping height: 37 mm, cushioned rubber pads protecting optical components
Application
The AMR series cylindrical lens mounts allow for fine adjustment of the optical component's pitch and yaw angles.
No specifications available for this product.
Product Family: 2D Adjustable Cylindrical Lens Mounts (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 2D Adjustable Cylindrical Lens Mounts AMR-1L |
AMR-1L
| — | — | — | View |
| 2D Adjustable Cylindrical Lens Mounts AMR-1R Current |
AMR-1R
| — | — | — |
