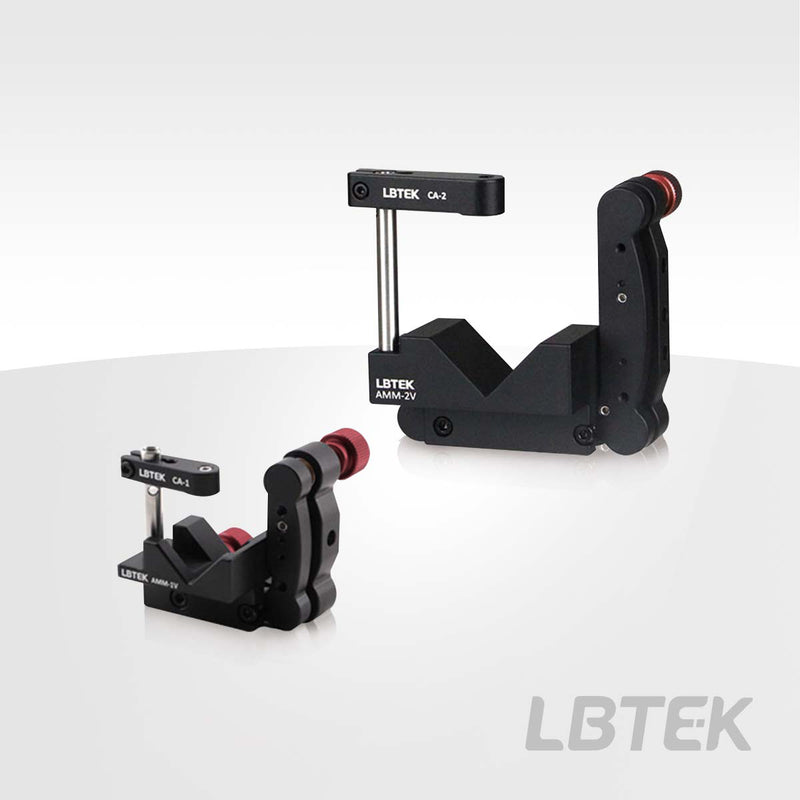

2D Adjustable V-Mounts — Model AMM-2V
✔ In Stock — Ships Today
The LBTEK 2D Adjustable V-Mount is suitable for mounting cylindrical optical or mechanical components, such as polarizing prisms, lens barrels, etc. By adjusting the height of the clamping arm and the extension of the rubber-tipped screw, it can accommodate cylinders with diameters ranging from 2 mm to 21 mm or 7 mm to 42 mm, with the clamping arm being removable. Two M6×0.25 precision adjustment threads provide ±4° pitch and yaw adjustment with a precision of 0.4° per rotation. The back plate features two M4 countersunk holes and includes one M4×10 low-profile screw for connecting to optical posts.
Key Features
- Clamping diameter 2 mm~21 mm/7 mm~42 mm for optical or mechanical components
- ±4° pitch and yaw adjustment with 0.4°/rev precision
- Includes adjustable clamping arms CA-1/CA-2
- With M4 countersunk holes for post connection
Application
AMM-1V Lens Tube with Clamp Function
No specifications available for this product.
Product Family: 2D Adjustable V-Mounts (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 2D Adjustable V-Mounts AMM-1V |
AMM-1V
| — | — | — | View |
| 2D Adjustable V-Mounts AMM-2V Current |
AMM-2V
| — | — | — |
