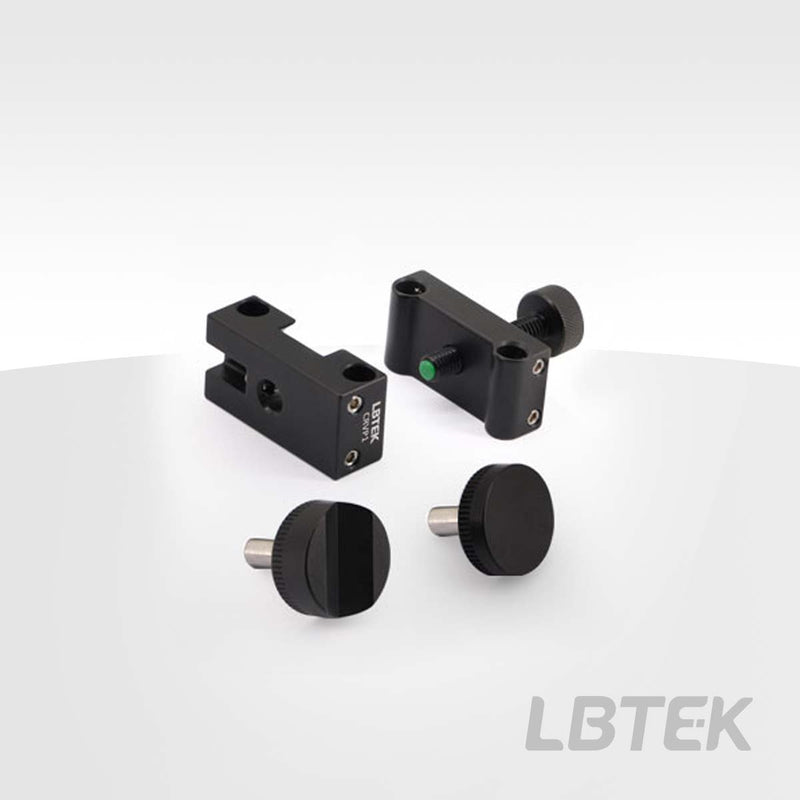

30 mm coaxial clamp — Model CRVP1
✔ In Stock — Ships Today
The coaxial clamp provided by LBTEK is compatible with 30 mm coaxial systems. The V-groove platform can clamp round components with diameters ranging from Ø4 mm to 15 mm, while the flat platform can hold optical components with a maximum height of 20 mm. The clamping height is adjustable and features a locking mechanism. Both the top and bottom components can be moved along the coaxial rod and secured using the side set screws.
Key Features
- Adjustable clamping height
- V-groove platform can clamp round components from Ø4 mm to Ø15 mm
- Flat platform can clamp optical components with a maximum height of 20 mm
Application
Can clamp round/square components
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm coaxial clamp (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm coaxial clamp CRVP1 Current |
CRVP1
| — | — | — |
