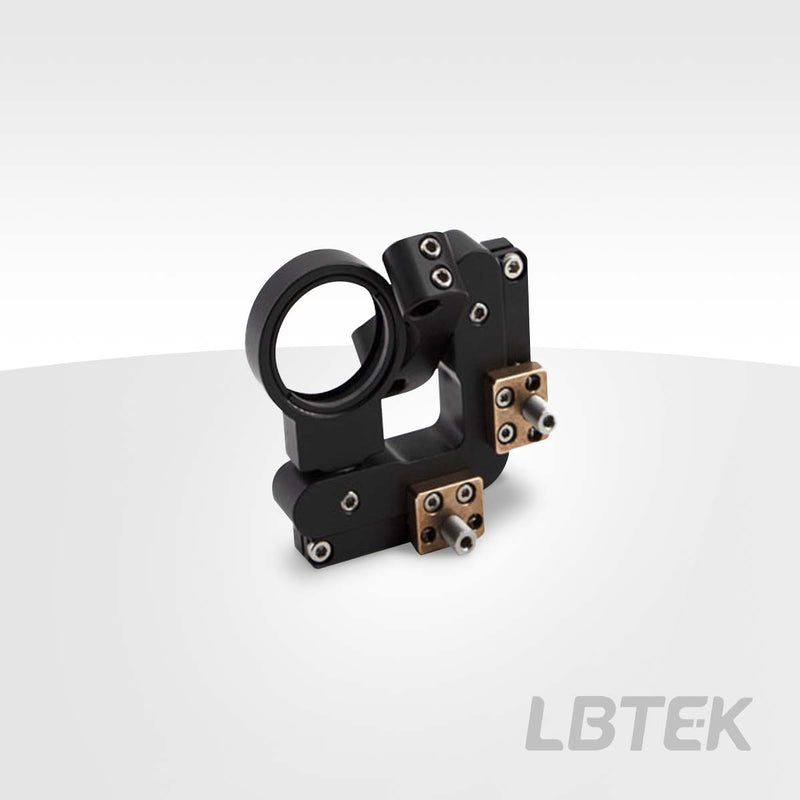

30 mm Coaxial Gimbal Mount — Model UAMC-1A
✔ In Stock — Ships Today
LBTEK 30 mm Coaxial Gimbal Mount with SM1 Internal Thread, compatible with optical components of Ø25.4 mm and maximum thickness of 6 mm, suitable for 30 mm coaxial systems. It features both coarse and fine adjustment modes, allowing 360° coarse adjustment of the optical component before locking, followed by ±25° fine adjustment via the adjuster with a precision of 0.75° per revolution. Both the locking screw and adjuster are adjusted using a 2 mm hex wrench. Includes one SM1R retaining ring and one 2 mm hex wrench.
Key Features
- Main material: 6061-T6 aluminum alloy
- Universal adjustment design
- Able to install optical components with Ø25.4 mm diameter and maximum thickness of 6 mm
- Includes one SM1R retaining ring
Application
Universal Adjustment Mount for 30 mm Coaxial System
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Applicable optical element diameter | Ø25.4 mm |
| Maximum applicable thickness of optical components | 6 mm |
| Optical component mounting method | Single snap ring fixation |
| Attribute 1454 | 360° |
| Attribute 1455 | ±25° |
| Adjustment accuracy | 0.75°/revolution |
Product Family: 30 mm Coaxial Gimbal Mount (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm Coaxial Gimbal Mount UAMC-1A Current |
UAMC-1A
| — | — | — |
