45° Mounting Adapter — Model TAM45
✔ In Stock — Ships Today

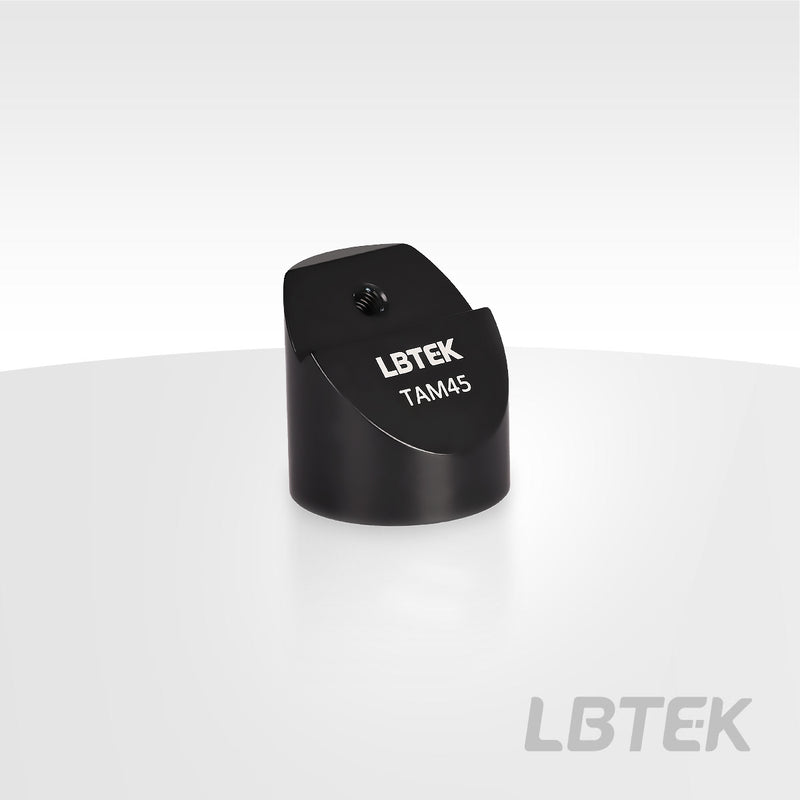

The 45° mounting adapter (dimensions Ø25.0 mm × 25.3 mm) from LBTEK is constructed from black anodized aluminum alloy, featuring an M4 tapped hole on its 45° angled surface for direct fixation of AMM series mounts using cap screws. When the AMM-1X is installed on the TAM45 with the UBPH universal rotation base, the beam height at the center of the AMM-1X lens is 56 mm from the operating stage. If the AMM-2X assembly is used, the beam height becomes 68 mm. (Note: Not recommended for use with AMM-05X as the screw assembly will interfere with the inclined surface.) The bottom of the adapter has an M6 tapped hole for mounting Ø25.0 mm posts or post holder bases. The purchase of LBTEK 45° mounting adapter comes with one M6 socket head cap screw and one M4 socket head cap screw.
Key Features
- Black anodized aluminum alloy;
- M6 and M4 mounting tapped holes;
- Dimensions Ø25.0 mm × 25.3 mm;
Application
TAM45 is compatible with the mount AMM-1B and base UBPH.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 45° Mounting Adapter (1 variants)
