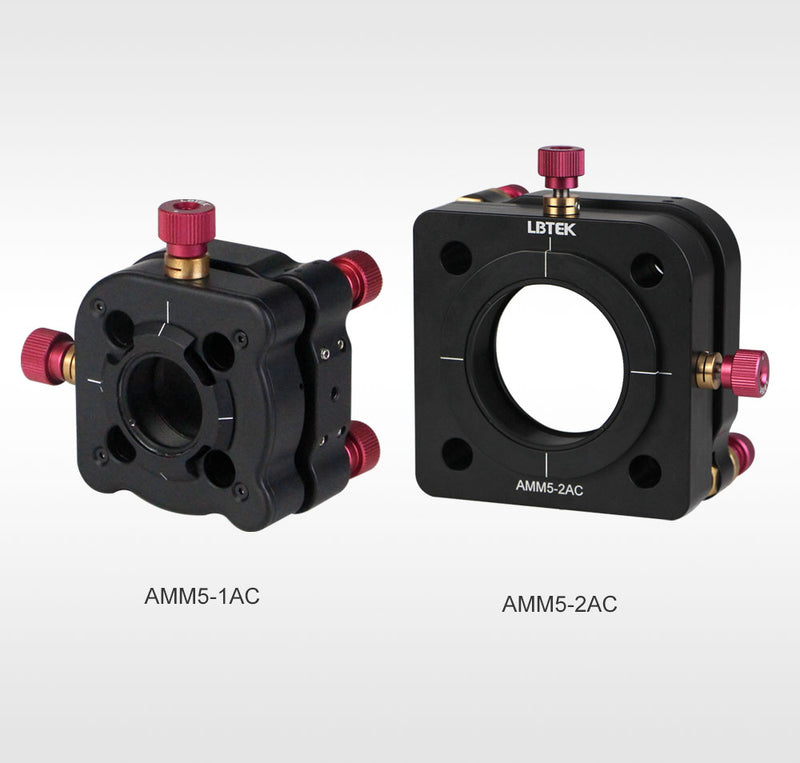

5-Axis Optical Mount AMM5-2AC
✔ In Stock — Ships Today
The 5-Axis Optical Mount provided by LBTEK features a single retaining ring for securing optical components. The mount enables adjustment and locking along five axes (pitch, yaw, and XYZ axes), equipped with 3 M6×0.25 and 2 M5×0.25 precision adjustment screw pairs. The threaded bushings incorporate a locking mechanism, with locking screws that can be secured using 2.0 mm and 1.5 mm hex wrenches. The mount is compatible with both post mounting and coaxial system. The back plate includes two orthogonal M4 threaded holes for direct mounting onto posts, along with four Ø6 mm coaxial holes for compatibility with coaxial systems. Purchasing the LBTEK 5-Axis Optical Mount includes one 2.0 mm hex key and one 1.5 mm hex key.
Key Features
- Five lockable adjustment axes, adjustable in pitch, yaw, and XYZ axes
- Single retaining ring fixation
- Compatible with free-space and coaxial systems
- With a thicker back plate for enhanced stability
Application
AMM5-1AC Coaxial System Mounting Diagram
| Applicable optical element diameter | Ø50.8 mm |
| Maximum applicable thickness of optical components | 15 mm |
| Adjustable pitch/yaw angle range | ± 4° |
| Surface Treatment | Black anodized |
| Optical component mounting method | Single retaining ring fixation |
| Installation threaded hole specifications/quantity | M4 threaded hole/2 pcs |
| Main material | 6061-T6 aluminum alloy |
| Locking Mechanism | Radial Locking |
| Optical axis center height | 46 mm |
| included retaining ring | SM2R/1 piece |
| Pitch/Yaw Angle Accuracy | 0.19°/revolution |
| X-axis and Y-axis translation range | ±2 mm |
| Adjustment Pitch | 0.25 mm/rev |
| Travel Range | ±3.25 mm |
| Adjustment Pitch | 0.25 mm/rev |
| Hex Key Wrench | 2.0 mm and 1.5 mm, one each |
| compatible with coaxial systems | Compatible with 60 mm coaxial system |
Product Family: 5-Axis Optical Mount (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 5-Axis Optical Mount AMM5-1AC |
AMM5-1AC
| — | — | — | View |
| 5-Axis Optical Mount AMM5-2AC Current |
AMM5-2AC
| — | — | — | |
| 5-Axis Optical Mount AMM5-1A |
AMM5-1A
| — | — | — | View |
| 5-Axis Optical Mount AMM5-1A-A |
AMM5-1A-A
| — | — | — | View |
