50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 16 mm Coaxial Cube Mounts MBS1355-C

Name: 50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 16 mm Coaxial Cube Mounts MBS1355-C
Brand: WaveQuanta
SKU: MBS1355-C
Price: 288.22 SGD
Availability: InStock

MBS1355-C

$288.22

In Stock

Key Specifications

Wavelength 1100.0nm

Reflectance 0.5%

Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 16 mm Coaxial Cube Mounts — Model MBS1355-C

Operating wavelength 1100 nm-1650 nm, substrate N-BK7.

Product Description

Substrate material: N-BK7
Splitting ratio (R:T): 50:50
Operating wavelength: 400 nm-700 nm, 700 nm-1100 nm, 1100 nm-1650 nm
Insensitive to beamsplitting polarization

The LBTEK Non-Polarizing Beamsplitter Cube consists of two right-angle prisms. The prism marked by a black dot on top indicates that its hypotenuse surface is coated with a dielectric non-polarizing beamsplitter coating. Any of the four sides of the cube can serve as the incident surface, splitting the transmitted and reflected light according to the specified ratio. For optimal beamsplitting performance, it is recommended that the incident light enters from the right-angle side of the prism coated with the non-polarizing beamsplitter coating. LBTEK offers non-polarizing beamsplitter cubes made of N-BK7 material in various sizes, with three anti-reflection coating options of 400 nm-700 nm, 700 nm-1100 nm, and 1100 nm-1600 nm. Our optical components are finely processed and undergo strict quality control to ensure that LBTEK provides the users with high-quality optical products at reasonable prices.

50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 16 mm Coaxial Cube Mounts

Splitting ratio: 50:50 (R:T)
Insensitive to beamsplitting polarization
M3 threaded holes on the side, compatible with the 16 mm coaxial systems
Four SM05 internal threads on the side, compatible with SM05 lens tubes for installation

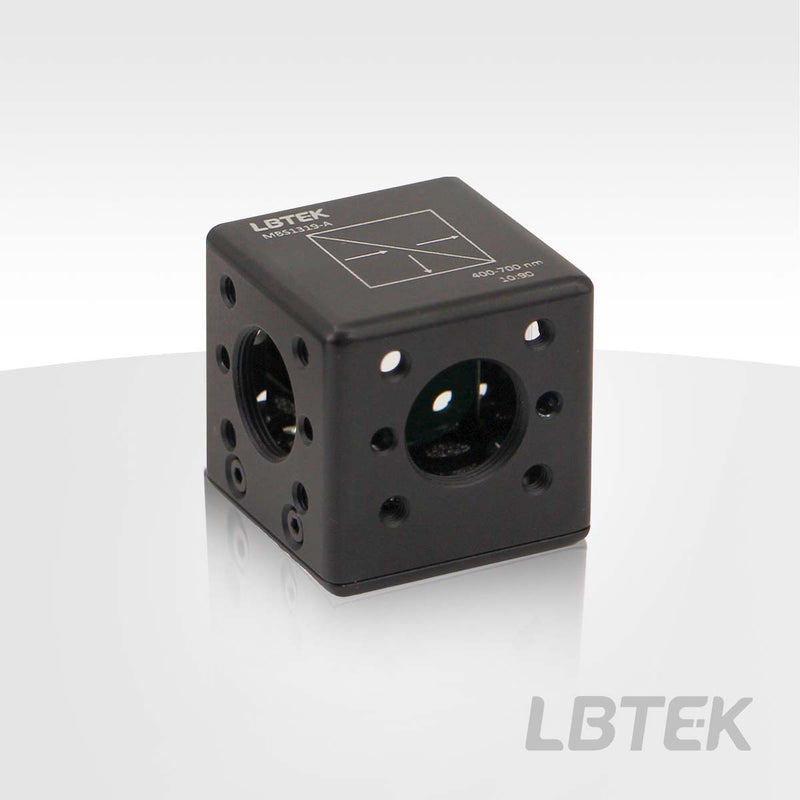

LBTEK integrates the 20.0 mm non-polarizing beamsplitter cube in a cube housing compatible with the 16 mm coaxial systems. A reference line is engraved on the top of the housing to indicate optical path direction. The housing features M3 threaded holes on the sides, and ensures compatibility with the 16 mm coaxial systems via the Ø4 mm coaxial system mounting posts. Additionally, the housing provides four SM05 internal threaded ports on the sides, allowing simultaneous compatibility with 12.7 mm lens tubes. Moreover, the coaxial cube is equipped with M4 threaded holes at the bottom for mounting posts.

Reflectance	0.5%
Operating Wavelength	1100 nm-1650 nm
Substrate Material	20.0 mm×20.0 mm×20.0 mm

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

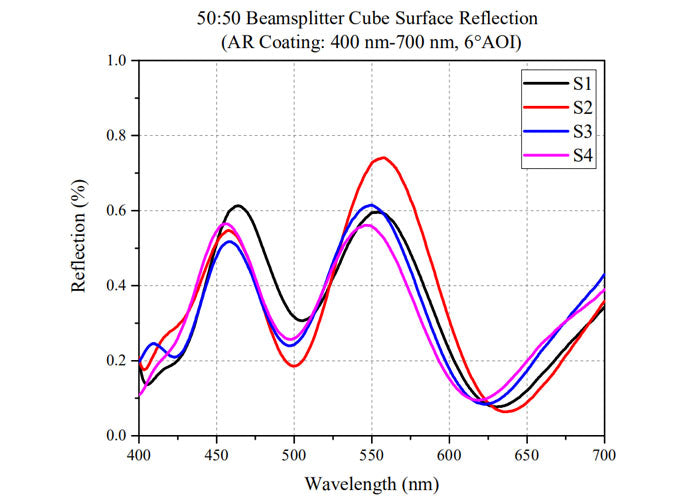

Curve 1

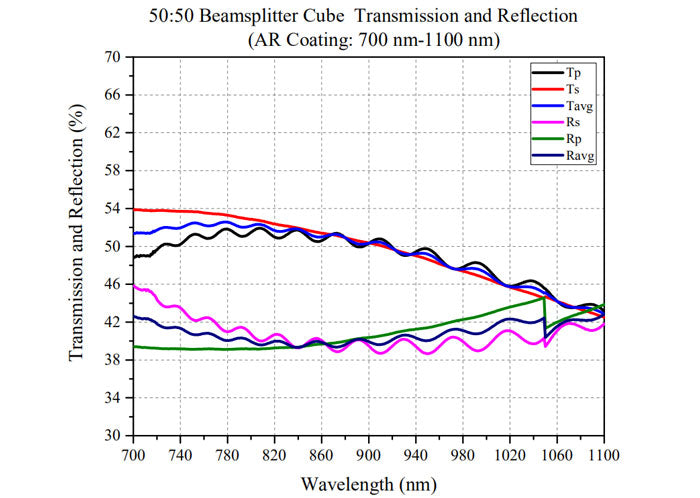

Curve 5

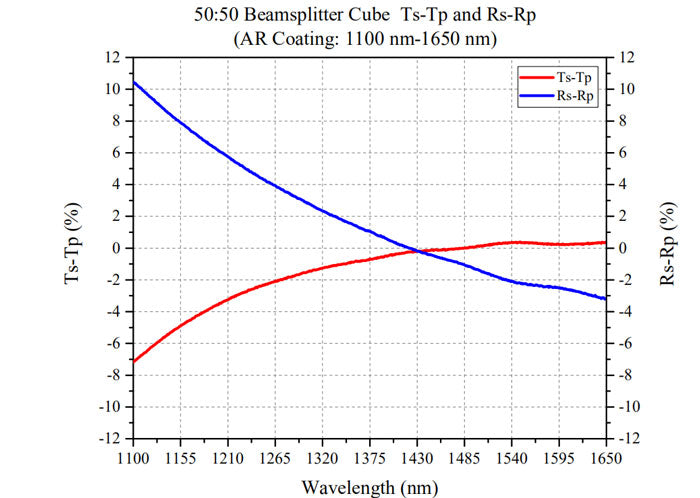

Curve 9

Product Family: 50:50 (R:T) Non-Polarizing Beamsplitter Cubes (23 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1055-C	`BS1055-C`	>70% CA	>70% CA	1100 nm-1650 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1155-C	`BS1155-C`	>80% CA	>80% CA	1100 nm-1650 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1255-C	`BS1255-C`	>80% CA	>80% CA	1100 nm-1650 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1355-C	`BS1355-C`	>80% CA	>80% CA	1100 nm-1650 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1455-C	`BS1455-C`	>80% CA	>80% CA	1100 nm-1650 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1055-B	`BS1055-B`	>70% CA	>70% CA	700 nm-1100 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1155-B	`BS1155-B`	>80% CA	>80% CA	700 nm-1100 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1255-B	`BS1255-B`	>80% CA	>80% CA	700 nm-1100 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1355-B	`BS1355-B`	>80% CA	>80% CA	700 nm-1100 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1455-B	`BS1455-B`	>80% CA	>80% CA	700 nm-1100 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1555-B	`BS1555-B`	>80% CA	>80% CA	700 nm-1100 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1055-A	`BS1055-A`	>70% CA	>70% CA	400 nm-700 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1155-A	`BS1155-A`	>80% CA	>80% CA	400 nm-700 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1255-A	`BS1255-A`	>80% CA	>80% CA	400 nm-700 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1355-A	`BS1355-A`	>80% CA	>80% CA	400 nm-700 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1455-A	`BS1455-A`	>80% CA	>80% CA	400 nm-700 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, Unmounted BS1555-A	`BS1555-A`	>80% CA	>80% CA	400 nm-700 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 30 mm Coaxial Cube Mounts MBS1455-C	`MBS1455-C`	>80% CA	>80% CA	1100 nm-1650 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 30 mm Coaxial Cube Mounts MBS1455-B	`MBS1455-B`	>80% CA	>80% CA	700 nm-1100 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 30 mm Coaxial Cube Mounts MBS1455-A	`MBS1455-A`	>80% CA	>80% CA	400 nm-700 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 16 mm Coaxial Cube Mounts MBS1355-A	`MBS1355-A`	—	—	400 nm-700 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 16 mm Coaxial Cube Mounts MBS1355-B	`MBS1355-B`	—	—	700 nm-1100 nm	View
50:50 (R:T) Non-Polarizing Beamsplitter Cubes, 16 mm Coaxial Cube Mounts MBS1355-C Current	`MBS1355-C`	—	—	1100 nm-1650 nm
