6.5mm Travel Manual Linear Translation Stage LS30-6L1
✔ In Stock — Ships Today

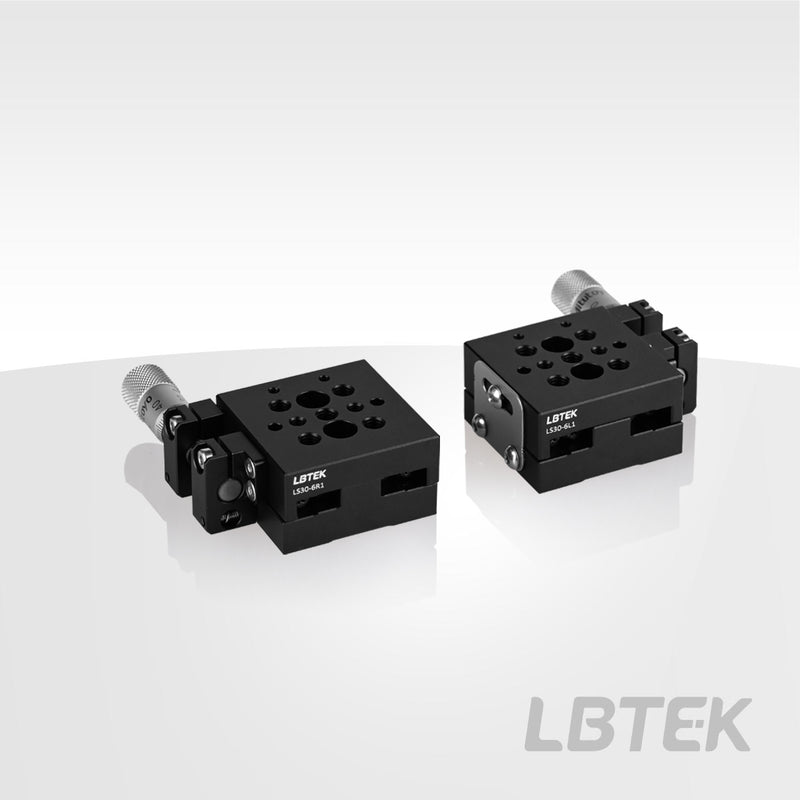

LBTEK's single-axis linear translation stages are available in two drive types: left-side drive and right-side drive. Both utilize a single-axis drive system, equipped with a micrometer head drive, offering a travel range of 6.5 mm, with the micrometer head featuring a minimum graduation of 10 μm. The stage platform measures 30 mm×30 mm and includes M3 and M4 threaded holes. The bottom of the stage is equipped with 2 countersunk positioning holes and 1 M4 threaded hole, allowing the stage to be secured in position using M3 or M4 screws.
Key Features
- Single-axis drive, with standard micrometer head
- Table size: 30mm × 30mm
- Stroke: 6.5mm
- Minimum scale of micrometer head: 10 um
- Available in two drive types: left-side drive and right-side drive
Application
The optical component is mounted on a single-axis linear translation stage.
| Material | 6061-T6 aluminum alloy |
| Tabletop size | 30 mm×30 mm |
| stroke | 6.5 mm |
| Drive position | Left-hand drive |
| Stage Travel | 14 mm |
| Pitch | ≤3 μm |
| Mounting method | M4 |
| Locking Method | 2 positioning pins + 2 screws |
| Installation Method | 25 mm |
| Number of axes | Single Axis |
| Micrometer head minimum scale | 10 μm |
| Main surface treatment | Black anodizing after grinding |
| Tabletop threaded hole specifications | M4/M3 |
| Position Repeatability | ≤8 μm |
| Weight | 0.52kg |
| Load Capacity | 3.2Kg |
| Weight | 1.1Kg |
