6.5mm Travel Manual Linear Translation Stage LS30-6R1
✔ In Stock — Ships Today

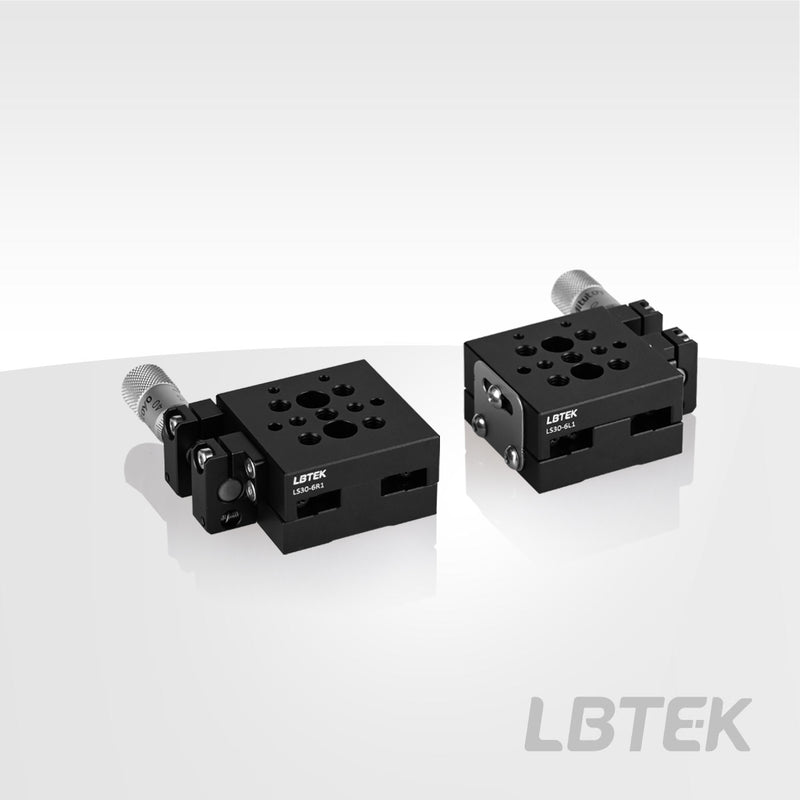

LBTEK's single-axis linear translation stages are available in two drive types: left-side drive and right-side drive. Both utilize a single-axis drive system, equipped with a micrometer head drive, offering a travel range of 6.5 mm, with the micrometer head featuring a minimum graduation of 10 μm. The stage platform measures 30 mm×30 mm and includes M3 and M4 threaded holes. The bottom of the stage is equipped with 2 countersunk positioning holes and 1 M4 threaded hole, allowing the stage to be secured in position using M3 or M4 screws.
Key Features
- Single-axis drive, with standard micrometer head
- Table size: 30mm × 30mm
- Stroke: 6.5mm
- Minimum scale of micrometer head: 10 um
- Available in two drive types: left-side drive and right-side drive
Application
The optical component is mounted on a single-axis linear translation stage.
| Travel Range | 6.5 mm |
| Lead Time | 6.0 weeks |
No CAD drawings available for this product.
Product Family: 6.5mm Travel Manual Linear Translation Stage (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 6.5mm Travel Manual Linear Translation Stage LS30-6-D |
LS30-6-D
| — | — | — | View |
| 6.5mm Travel Manual Linear Translation Stage LS30-6 |
LS30-6
| — | — | — | View |
| 6.5mm Travel Manual Linear Translation Stage LS30-6L3 |
LS30-6L3
| — | — | — | View |
| 6.5mm Travel Manual Linear Translation Stage LS30-6R3 |
LS30-6R3
| — | — | — | View |
| 6.5mm Travel Manual Linear Translation Stage LS30-6-XZ |
LS30-6-XZ
| — | — | — | View |
| 6.5mm Travel Manual Linear Translation Stage LS30-6R1 Current |
LS30-6R1
| — | — | — | |
| 6.5mm Travel Manual Linear Translation Stage LS30-6L1 |
LS30-6L1
| — | — | — | View |
