6-Axis Optical Mounts (Industrial Grade) AMM6-1AS
✔ In Stock — Ships Today

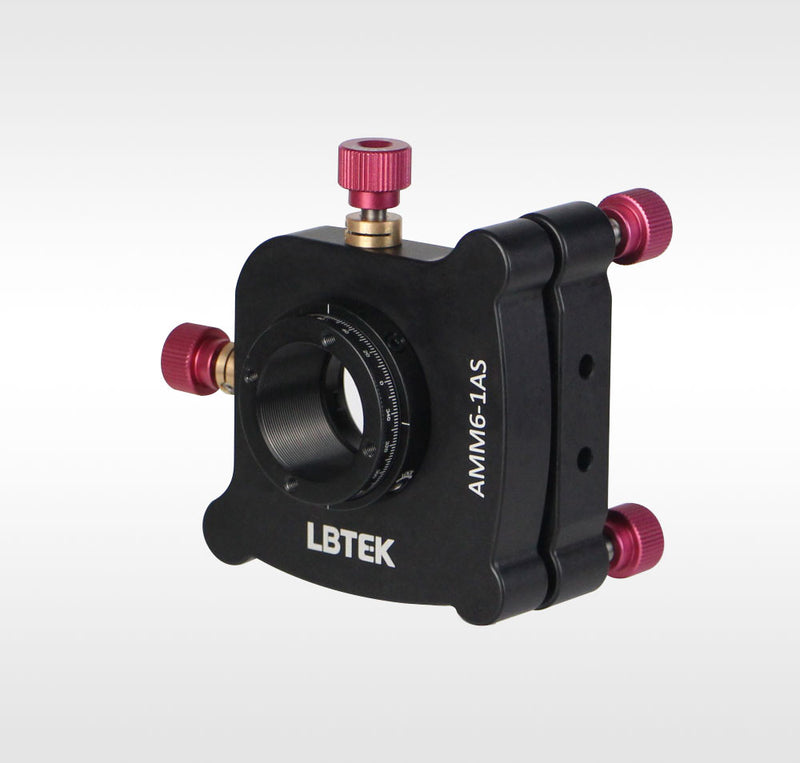

The 6-Axis Optical Mounts (Industrial Grade) provided by LBTEK feature an SM1 internal threaded hole and an SM1R retaining ring, capable of accommodating optical components up to 15.8 mm thickness with a diameter of Ø25.4 mm. It enables six-axis adjustment (XYZ translation, pitch, yaw, and 360° rotation), with all six axes being lockable. The AMM6-1AS model is equipped with three M6 and two M5 precision adjustment screw pairs, featuring threaded bushings with locking mechanisms. The 360° rotation can be locked using either a 2.0 mm or 1.5 mm hex wrench. Six high-strength rigid reset springs enhance impact and vibration resistance. Purchasing the LBTEK 6-Axis Optical Mount (Industrial Grade) includes one 2.0 mm hex wrench, one 1.5 mm hex wrench, and two M4 socket head cap screws.
Key Features
- Six lockable adjustment axes
- Adjustable in X, Y, Z axes with pitch/yaw adjustment and 360° rotation
- Four M4 countersunk holes for mounting posts
- For mounting Ø25.4 mm optical components with maximum thickness of 15.8 mm, secured by SM1 retaining ring
- Six high-strength rigid reset springs for enhanced impcat and vibration resistance
Application
Installation of the 6-Axis Optical Mount (Industrial Grade)
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 15.8 mm |
| Applicable optical element diameter | Ø25.4 mm |
| Optical component mounting method | Single snap ring fixation |
| Countersunk Hole Specification/Quantity | M4 countersunk hole/4 pcs |
| Main material | 6061-T6 aluminum alloy |
| Locking Mechanism | Axial locking |
| Optical axis center height | 39.0 mm |
| included retaining ring | SM1R/1 piece |
| Rotary Indexing | 2° |
| Pitch/Yaw Angle Accuracy | 0.23°/revolution |
| X-axis and Y-axis translation range | ±2 mm |
| Travel Range | ±3.25 mm |
| Attribute 2456 | 0.25 mm/rev |
| Hex Key Wrench | 2.0 mm and 1.5 mm, one each |
| Rotation angle | 360° |
| Adjustable pitch/yaw angle range | ±4 ° |
| Weight | 0.45 kg |
| Number of reset springs | 6 |
| Adjustment Pitch | 0.25 mm/rev |
Product Family: 6-Axis Optical Mounts (Industrial Grade) (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 6-Axis Optical Mounts (Industrial Grade) AMM6-1AS Current |
AMM6-1AS
| — | — | — |
