60 mm coaxial quick-release type, rotatable within 360° — Model LCM-R
✔ In Stock — Ships Today

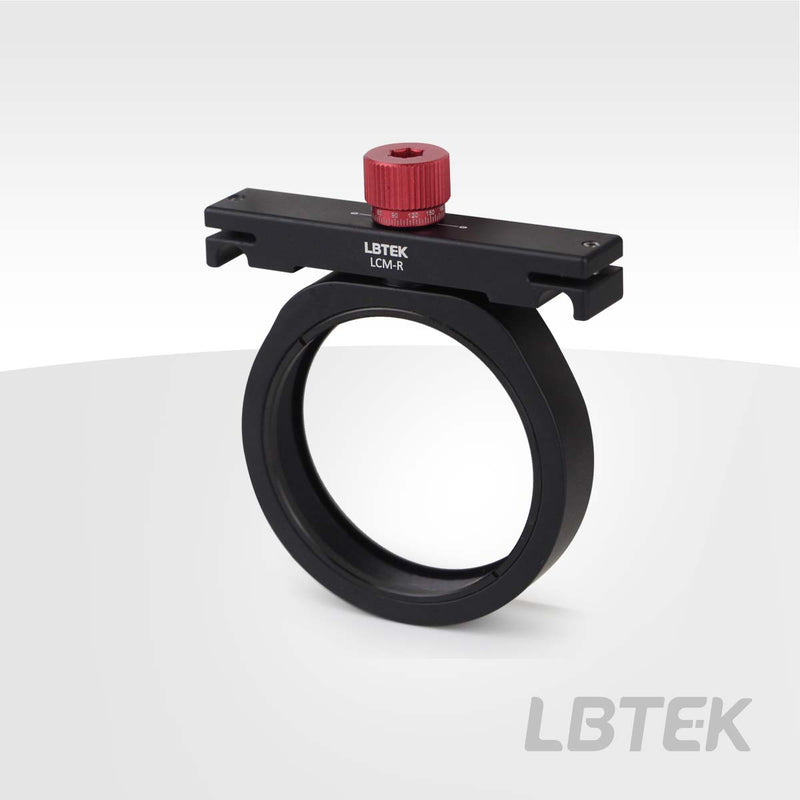

The LCM-R mount from LBTEK is designed for 360° manual rotation of optical components in a 60 mm coaxial system. Using one included retaining ring, it can mount optical components with a diameter of 50.8 mm and a maximum thickness of 8.5 mm. The LCM-R utilizes flexible clamping blocks and M3 locking screws, enabling quick installation without disassembling the coaxial rod. By loosening the M3 locking screws on both sides, the mount can be swiftly snapped into or removed from the coaxial rod. The red knob on top can be rotated using either knurling or a 5 mm hex wrench, while the side M3 screw is used to lock the rotation. The red knob features 5° interval markings for angle indication.
Key Features
- Compatible with 60 mm coaxial system
- Comes with 360° adjustable relative to the optical axis
- Flexible locking of coaxial rods from the top for easy operation
- Accommodates optical components with 50.8 mm diameter
Application
Coaxial rotary quick-release mounting bracket installed on a 60 mm coaxial system
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Maximum applicable thickness of optical components | 8.5 mm |
| Applicable optical element diameter | Ø50.8 mm |
| Compatible systems | 60 mm coaxial |
| Rotation angle | 360° |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 60 mm coaxial quick-release type, rotatable within 360° (1 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 60 mm coaxial quick-release type, rotatable within 360° LCM-R Current |
LCM-R
| — | — | — |
