60 mm coaxial system mirror mount AMC-2B
AMC-2B$206.03
In Stock
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH

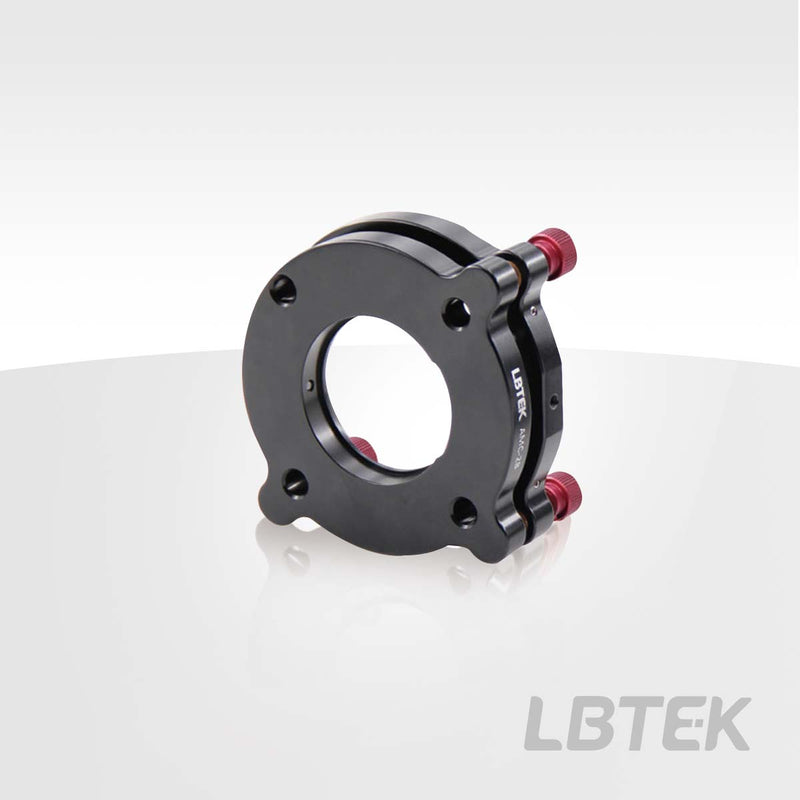

60 mm coaxial system mirror mount — Model AMC-2B
✔ In Stock — Ships Today
The AMC-2B features a smooth bore of Ø50.8 mm, secured by an M4 set screw (compatible with a 2 mm hex wrench) for optical component fixation. Suitable for mounting optical components with Ø50.8 mm and a minimum thickness of 4 mm.
Key Features
- Equipped with 3 adjusters for regulating deflection and tilt angles
- Optical component fixation method: Set screw
- Linear movement range ±3 mm, pitch angle ±3°, adjustment precision 0.2°/turn
- Compatible with 60 mm coaxial systems
Application
The AMC series mirror mounts are compatible with coaxial systems.
| Clear Aperture | 48.3 mm |
Product Family: 60 mm coaxial system mirror mount (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 60 mm coaxial system mirror mount AMC-2B Current |
AMC-2B
| — | — | — | |
| 60 mm coaxial system mirror mount AMC-2A |
AMC-2A
| — | — | — | View |
